| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_073T02_9000004522_31257cztM0_level2.evt | modeM0/AS1A10_073T02_9000004522_31257cztM0_level2_quad_clean.evt |
| Size (bytes) | 666,051,840 | 108,132,480 |
| Size | 635.2 MB | 103.1 MB |
| Events in quadrant A | 3,611,465 | 713,352 |
| Events in quadrant B | 7,003,193 | 688,027 |
| Events in quadrant C | 4,403,309 | 676,774 |
| Events in quadrant D | 4,644,473 | 672,562 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15641 | 2 |
| B | 0 | 26242 | 2 |
| C | 0 | 18053 | 2 |
| D | 0 | 18730 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7531 | 44 | 0.584252% |
| B | 7531 | 517 | 6.864958% |
| C | 7531 | 241 | 3.200106% |
| D | 7531 | 93 | 1.234896% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7851 | 7532 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7851 | 7532 | 197 | 197 | 2.51% | 2.62% |  |
| C | 7851 | 7532 | 19 | 19 | 0.24% | 0.25% |  |
| D | 7851 | 7532 | 36 | 36 | 0.46% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14063 | 69.78 | 932 | 912 | 188.5 |
| A | 3 | 137 | 9545 | 45.81 | 932 | 912 | 188.5 |
| A | 11 | 47 | 8091 | 38.09 | 932 | 912 | 188.5 |
| B | 6 | 159 | 2072087 | 11866.11 | 905 | 882 | 174.5 |
| B | 12 | 18 | 777467 | 4449.12 | 905 | 882 | 174.5 |
| B | 0 | 190 | 289926 | 1655.96 | 905 | 882 | 174.5 |
| C | 3 | 233 | 581387 | 2813.98 | 877 | 881 | 206.3 |
| C | 0 | 10 | 217641 | 1050.73 | 877 | 881 | 206.3 |
| C | 14 | 238 | 144062 | 694.06 | 877 | 881 | 206.3 |
| D | 8 | 195 | 847362 | 3633.17 | 887 | 869 | 233.0 |
| D | 12 | 79 | 151675 | 647.26 | 887 | 869 | 233.0 |
| D | 2 | 250 | 109243 | 465.14 | 887 | 869 | 233.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

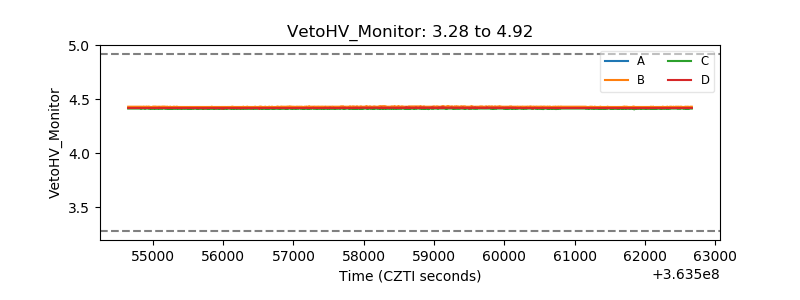

| Veto HV Monitor |  |
| Veto LLD |  |

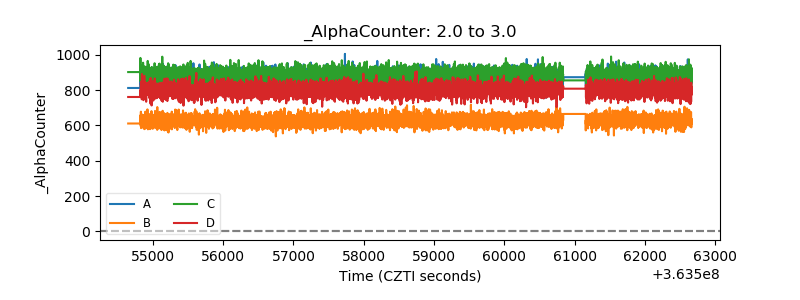

| Alpha Counter |  |
| _CPM_Rate |  |

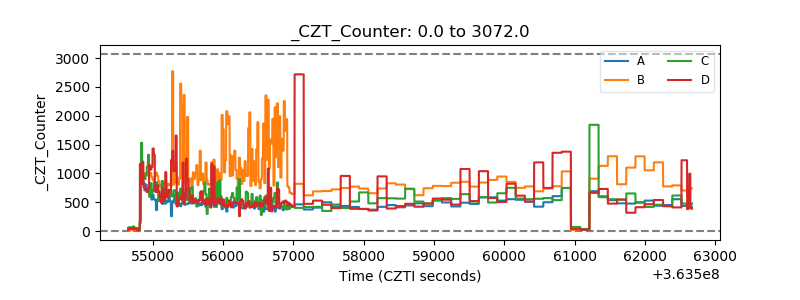

| CZT Counter |  |
| +2.5 Volts monitor |  |

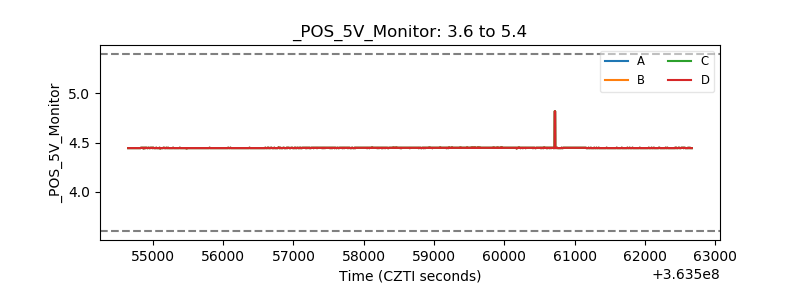

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

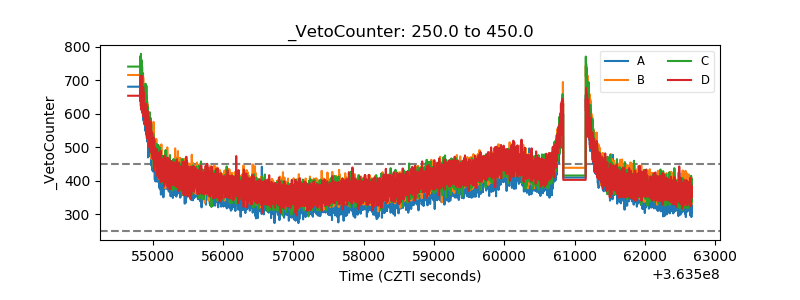

| Veto Counter |  |
