| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_113T01_9000004524_31263cztM0_level2.evt | modeM0/AS1A10_113T01_9000004524_31263cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,050,560 | 70,539,840 |
| Size | 491.2 MB | 67.3 MB |
| Events in quadrant A | 3,156,520 | 438,388 |
| Events in quadrant B | 4,909,540 | 434,365 |
| Events in quadrant C | 3,515,641 | 410,164 |
| Events in quadrant D | 3,591,861 | 415,337 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13119 | 1 |
| B | 0 | 19065 | 1 |
| C | 0 | 14239 | 1 |
| D | 0 | 14690 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6265 | 45 | 0.718276% |
| B | 6266 | 102 | 1.627833% |
| C | 6265 | 155 | 2.474062% |
| D | 6265 | 57 | 0.909816% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7370 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7371 | 6267 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7370 | 6266 | 35 | 35 | 0.47% | 0.56% |  |
| D | 7370 | 6266 | 27 | 27 | 0.37% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 17216 | 101.19 | 814 | 800 | 162.2 |
| A | 13 | 254 | 10857 | 62.0 | 814 | 800 | 162.2 |
| A | 3 | 137 | 8114 | 45.09 | 814 | 800 | 162.2 |
| B | 6 | 159 | 1705480 | 11196.26 | 799 | 780 | 152.3 |
| B | 4 | 80 | 22005 | 139.4 | 799 | 780 | 152.3 |
| B | 12 | 111 | 19002 | 119.68 | 799 | 780 | 152.3 |
| C | 0 | 10 | 319991 | 1779.99 | 763 | 769 | 179.3 |
| C | 14 | 238 | 124079 | 687.58 | 763 | 769 | 179.3 |
| C | 3 | 233 | 74180 | 409.34 | 763 | 769 | 179.3 |
| D | 8 | 195 | 482012 | 2466.52 | 773 | 758 | 195.1 |
| D | 2 | 250 | 119206 | 607.07 | 773 | 758 | 195.1 |
| D | 12 | 233 | 29686 | 148.26 | 773 | 758 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

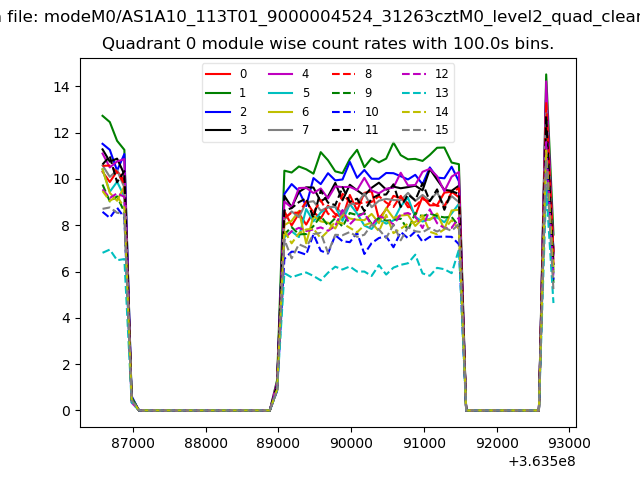

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

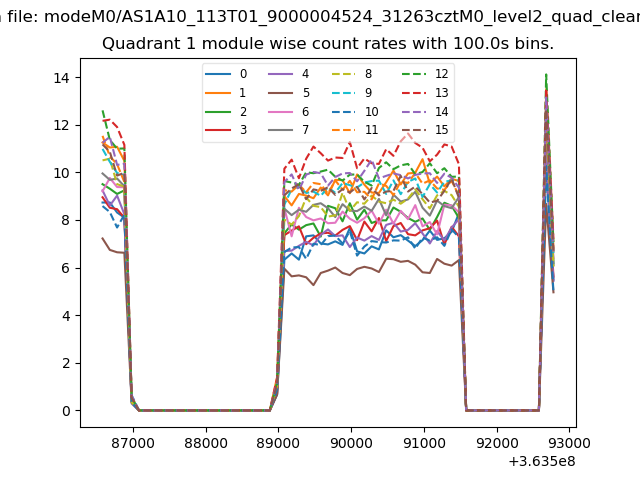

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

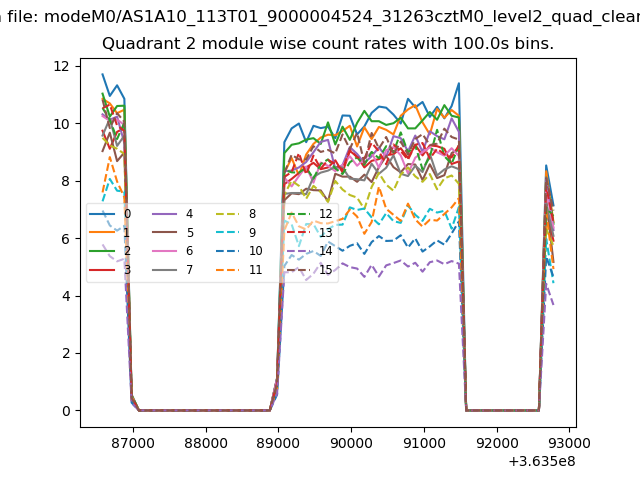

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

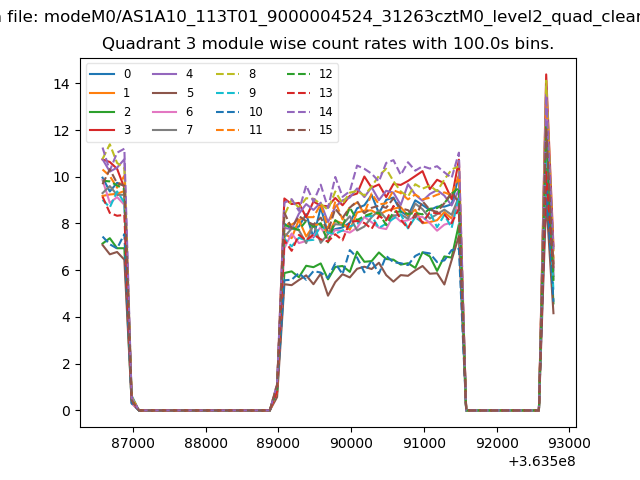

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

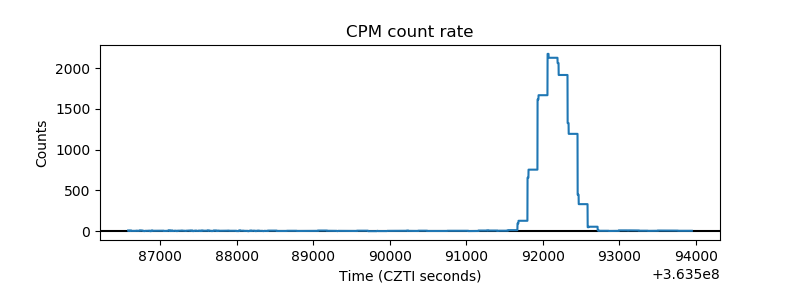

| _CPM_Rate |  |

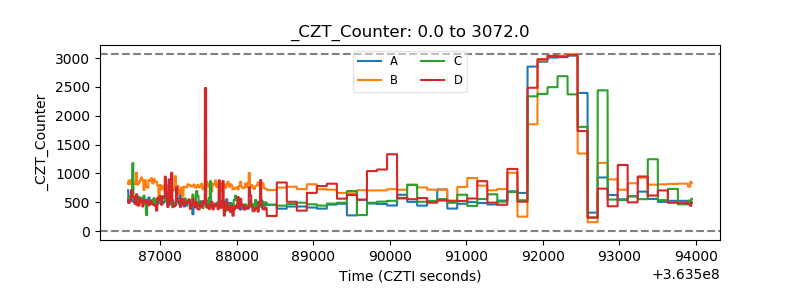

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

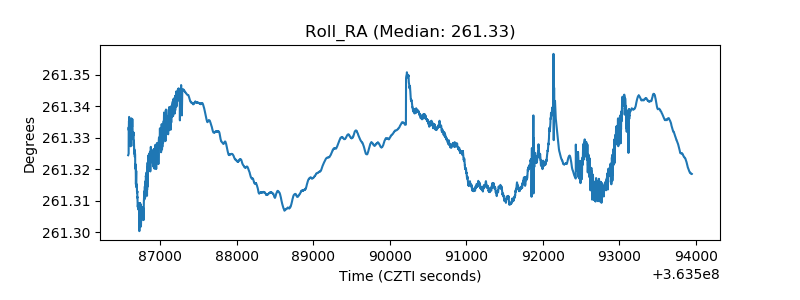

| _Roll_RA |  |

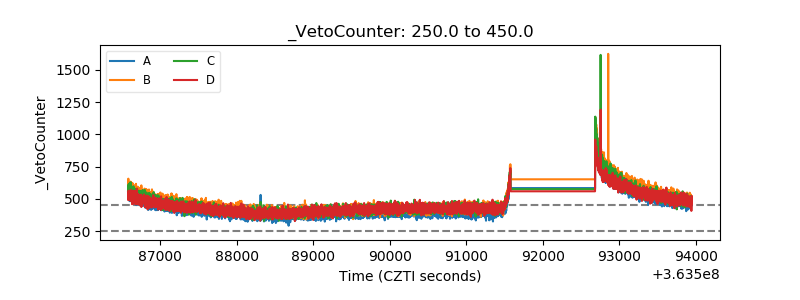

| Veto Counter |  |
