| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_113T01_9000004524_31264cztM0_level2.evt | modeM0/AS1A10_113T01_9000004524_31264cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,195,200 | 45,383,040 |
| Size | 327.3 MB | 43.3 MB |
| Events in quadrant A | 2,073,661 | 283,923 |
| Events in quadrant B | 3,191,930 | 282,024 |
| Events in quadrant C | 2,317,335 | 258,902 |
| Events in quadrant D | 2,538,180 | 266,297 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8474 | 1 |
| B | 0 | 12267 | 1 |
| C | 0 | 9267 | 1 |
| D | 0 | 10100 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4006 | 17 | 0.424363% |
| B | 4006 | 55 | 1.372941% |
| C | 4006 | 108 | 2.695956% |
| D | 4006 | 36 | 0.898652% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4006 | 4006 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4006 | 4006 | 2 | 2 | 0.05% | 0.05% |  |
| C | 4006 | 4006 | 41 | 41 | 1.02% | 1.02% |  |
| D | 4006 | 4006 | 24 | 24 | 0.60% | 0.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 6852 | 59.54 | 536 | 527 | 106.2 |
| A | 13 | 254 | 5623 | 47.97 | 536 | 527 | 106.2 |
| A | 3 | 137 | 5096 | 43.01 | 536 | 527 | 106.2 |
| B | 6 | 159 | 1072889 | 10754.88 | 524 | 513 | 99.7 |
| B | 4 | 80 | 38989 | 385.88 | 524 | 513 | 99.7 |
| B | 0 | 190 | 14665 | 141.93 | 524 | 513 | 99.7 |
| C | 0 | 10 | 203130 | 1762.11 | 494 | 498 | 115.0 |
| C | 14 | 238 | 81908 | 707.95 | 494 | 498 | 115.0 |
| C | 15 | 208 | 47769 | 411.07 | 494 | 498 | 115.0 |
| D | 8 | 195 | 431074 | 3418.69 | 508 | 495 | 125.9 |
| D | 2 | 250 | 100178 | 791.46 | 508 | 495 | 125.9 |
| D | 12 | 233 | 68197 | 537.54 | 508 | 495 | 125.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

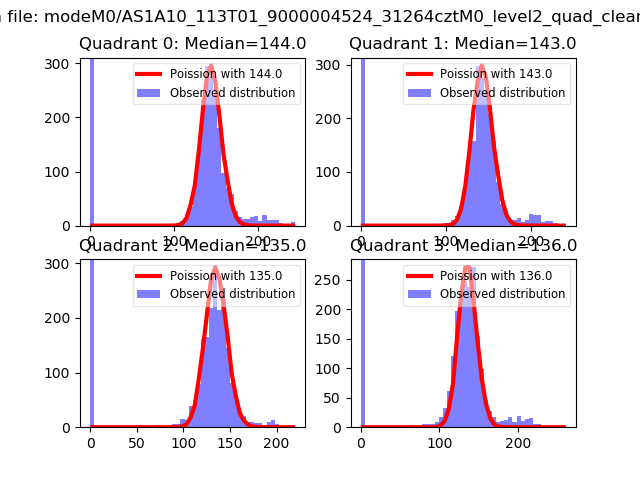

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

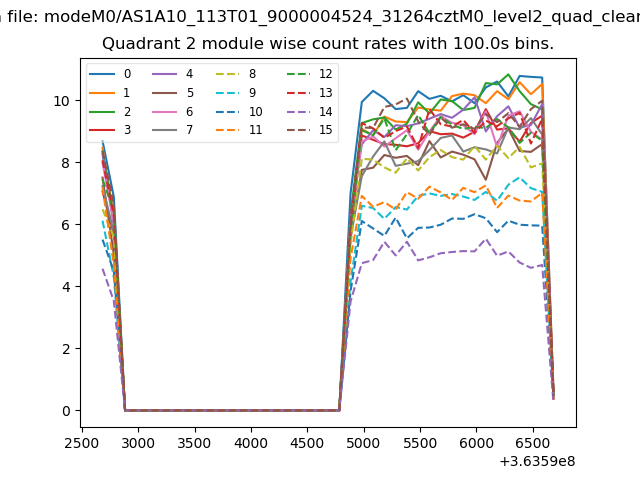

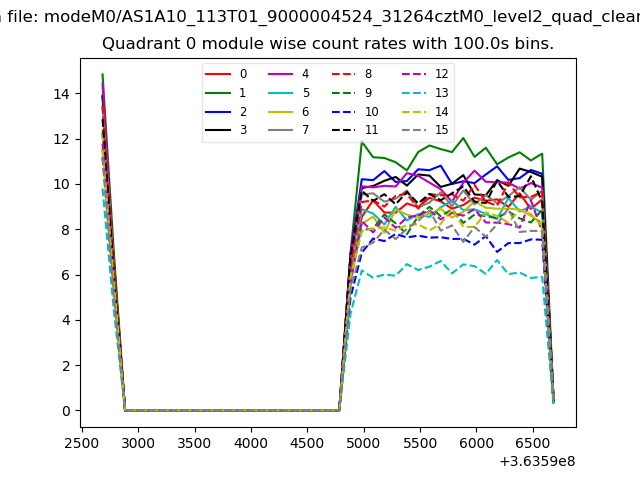

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

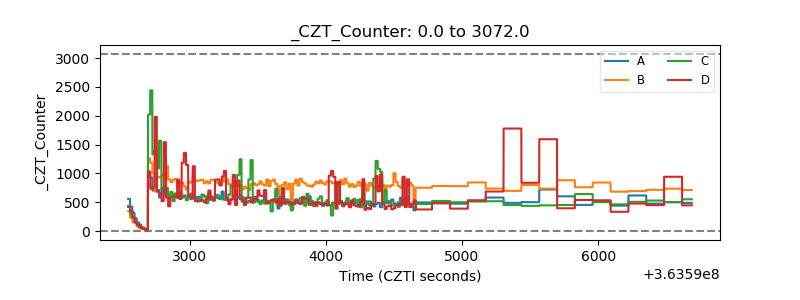

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

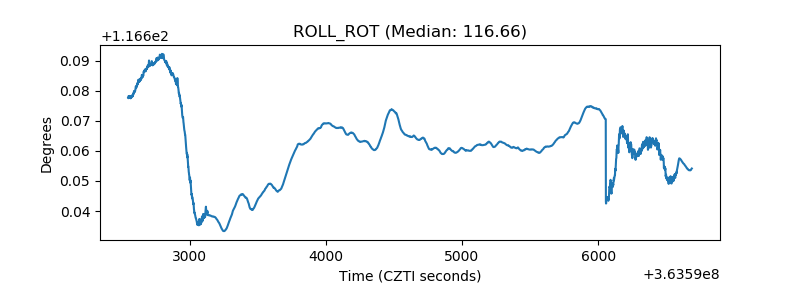

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

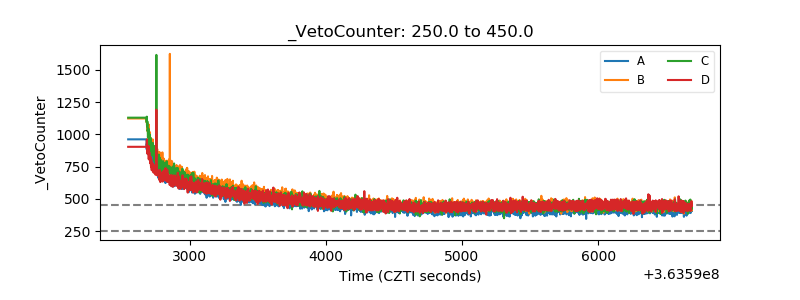

| Veto Counter |  |
