| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_024T01_9000004530_31283cztM0_level2.evt | modeM0/AS1T04_024T01_9000004530_31283cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,606,400 | 84,945,600 |
| Size | 534.6 MB | 81.0 MB |
| Events in quadrant A | 3,388,103 | 543,036 |
| Events in quadrant B | 5,373,859 | 535,267 |
| Events in quadrant C | 3,719,519 | 511,315 |
| Events in quadrant D | 4,044,445 | 517,363 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13989 | 2 |
| B | 0 | 20605 | 2 |
| C | 0 | 14958 | 2 |
| D | 0 | 16358 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6673 | 103 | 1.543534% |
| B | 6673 | 197 | 2.952195% |
| C | 6673 | 277 | 4.151056% |
| D | 6673 | 135 | 2.023078% |

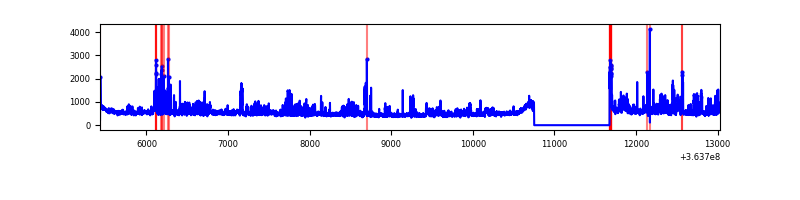

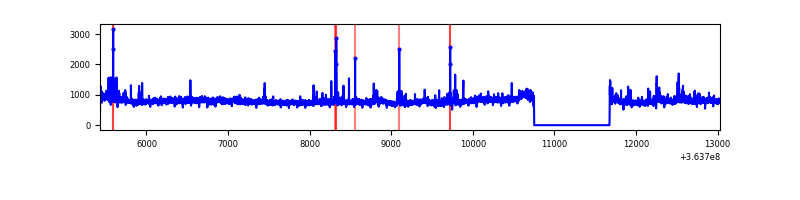

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6674 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7598 | 6674 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7598 | 6674 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7598 | 6674 | 29 | 29 | 0.38% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12534 | 67.55 | 877 | 862 | 172.8 |
| A | 3 | 137 | 8634 | 44.98 | 877 | 862 | 172.8 |
| A | 0 | 226 | 7394 | 37.8 | 877 | 862 | 172.8 |
| B | 6 | 159 | 1810497 | 11112.46 | 856 | 837 | 162.8 |
| B | 4 | 80 | 139446 | 851.15 | 856 | 837 | 162.8 |
| B | 12 | 18 | 29353 | 175.11 | 856 | 837 | 162.8 |
| C | 3 | 233 | 177515 | 928.69 | 823 | 828 | 190.3 |
| C | 14 | 238 | 166059 | 868.48 | 823 | 828 | 190.3 |
| C | 0 | 10 | 95411 | 497.14 | 823 | 828 | 190.3 |
| D | 8 | 195 | 562469 | 2603.7 | 840 | 820 | 215.7 |
| D | 12 | 218 | 145060 | 668.67 | 840 | 820 | 215.7 |
| D | 2 | 250 | 81246 | 372.84 | 840 | 820 | 215.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

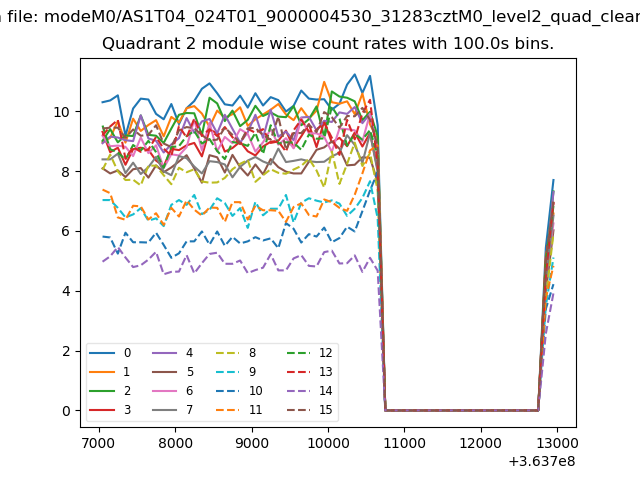

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

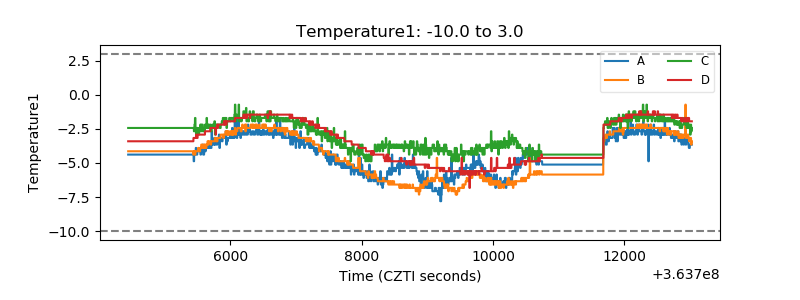

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

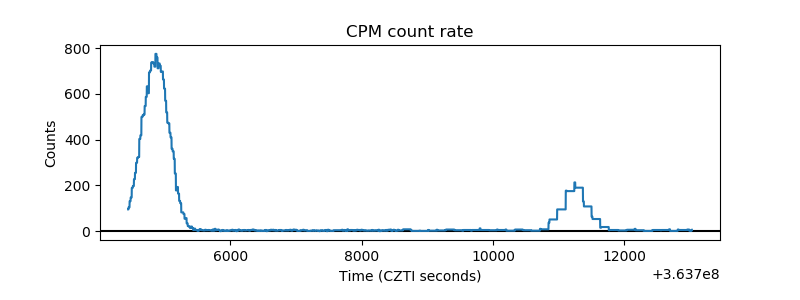

| _CPM_Rate |  |

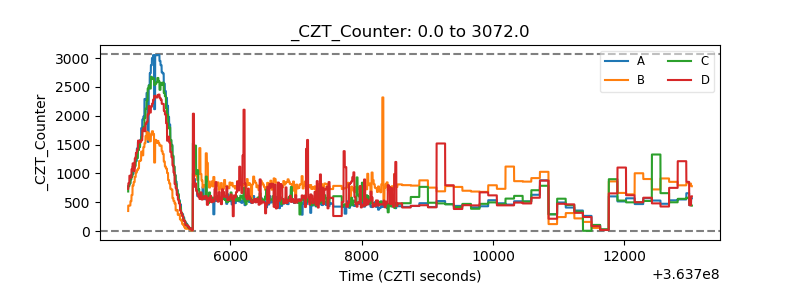

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

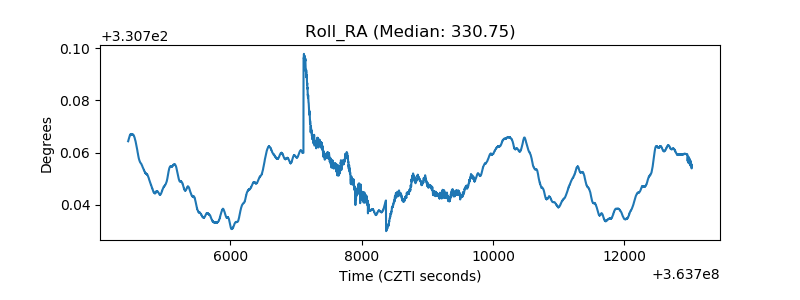

| _Roll_RA |  |

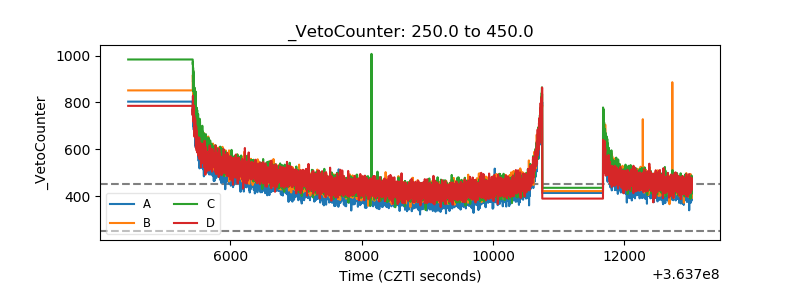

| Veto Counter |  |
