| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_024T01_9000004530_31284cztM0_level2.evt | modeM0/AS1T04_024T01_9000004530_31284cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,443,520 | 96,344,640 |
| Size | 575.5 MB | 91.9 MB |
| Events in quadrant A | 3,551,699 | 623,639 |
| Events in quadrant B | 5,884,094 | 611,523 |
| Events in quadrant C | 4,049,285 | 582,276 |
| Events in quadrant D | 4,298,651 | 594,933 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15058 | 2 |
| B | 0 | 22601 | 2 |
| C | 0 | 16413 | 2 |
| D | 0 | 17377 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7253 | 138 | 1.902661% |
| B | 7254 | 293 | 4.039151% |
| C | 7254 | 421 | 5.803695% |
| D | 7254 | 147 | 2.026468% |

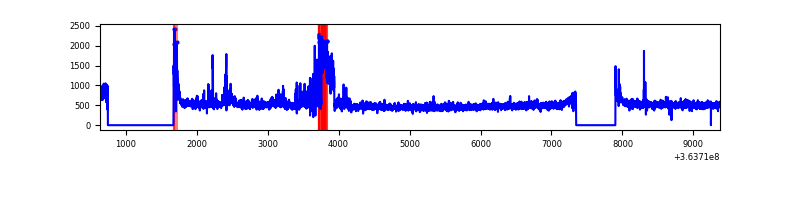

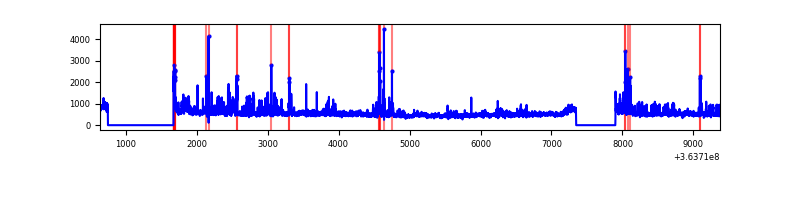

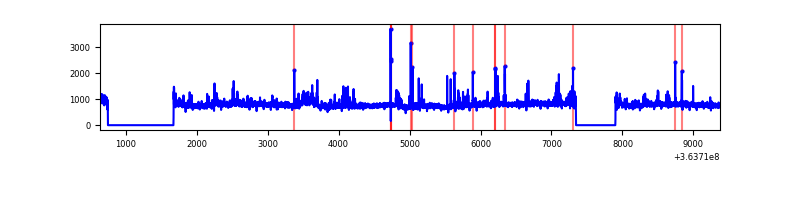

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8733 | 7255 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8734 | 7256 | 14 | 14 | 0.16% | 0.19% |  |
| C | 8734 | 7255 | 31 | 31 | 0.35% | 0.43% |  |
| D | 8734 | 7256 | 32 | 32 | 0.37% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13005 | 65.89 | 920 | 901 | 183.7 |
| A | 3 | 137 | 9462 | 46.6 | 920 | 901 | 183.7 |
| A | 0 | 226 | 7544 | 36.16 | 920 | 901 | 183.7 |
| B | 6 | 159 | 2000702 | 11706.82 | 897 | 873 | 170.8 |
| B | 4 | 80 | 197789 | 1152.73 | 897 | 873 | 170.8 |
| B | 10 | 245 | 68185 | 394.04 | 897 | 873 | 170.8 |
| C | 3 | 233 | 374135 | 1859.71 | 864 | 869 | 200.7 |
| C | 14 | 238 | 175702 | 871.06 | 864 | 869 | 200.7 |
| C | 0 | 10 | 61015 | 299.66 | 864 | 869 | 200.7 |
| D | 8 | 195 | 595896 | 2631.87 | 884 | 865 | 226.1 |
| D | 12 | 218 | 207463 | 913.8 | 884 | 865 | 226.1 |
| D | 2 | 250 | 95831 | 420.04 | 884 | 865 | 226.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

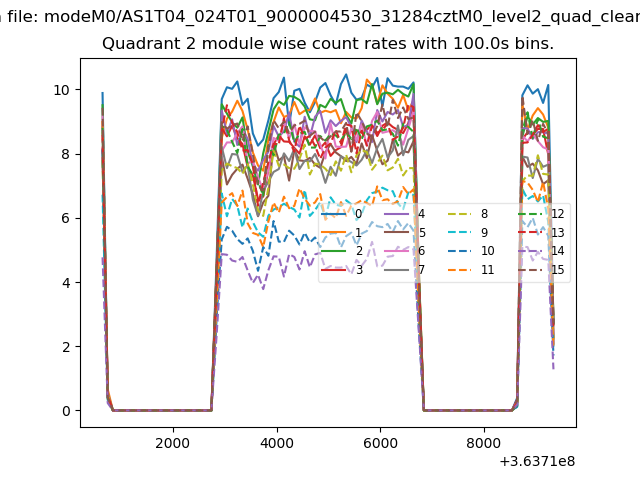

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

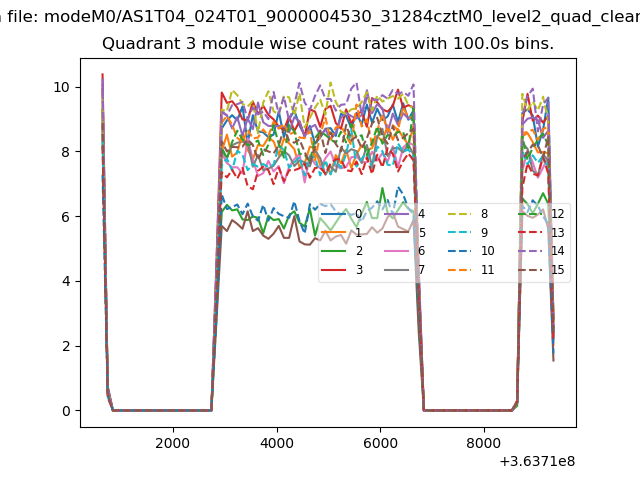

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

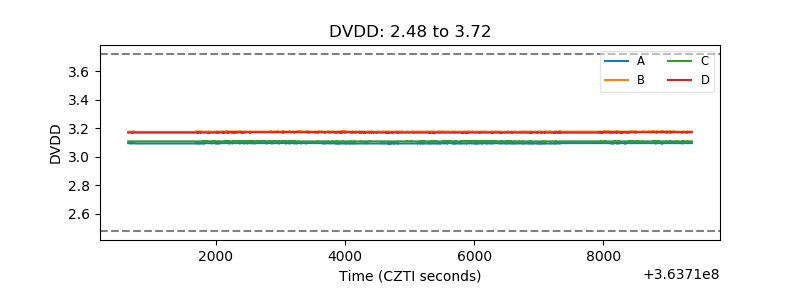

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

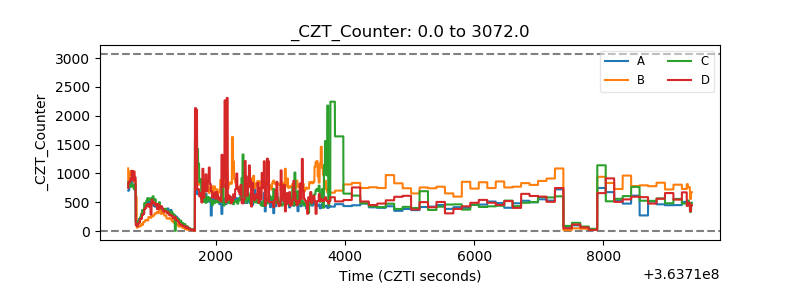

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

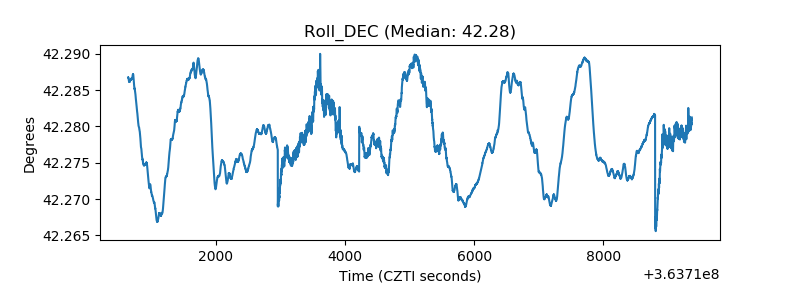

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
