| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_024T01_9000004530_31286cztM0_level2.evt | modeM0/AS1T04_024T01_9000004530_31286cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,774,720 | 110,430,720 |
| Size | 661.6 MB | 105.3 MB |
| Events in quadrant A | 4,046,392 | 714,181 |
| Events in quadrant B | 6,856,312 | 700,824 |
| Events in quadrant C | 4,369,374 | 672,328 |
| Events in quadrant D | 5,173,786 | 676,549 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17465 | 2 |
| B | 0 | 26323 | 3 |
| C | 0 | 18217 | 2 |
| D | 0 | 21116 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8359 | 86 | 1.028831% |
| B | 8359 | 292 | 3.493241% |
| C | 8359 | 372 | 4.450293% |
| D | 8359 | 256 | 3.062567% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

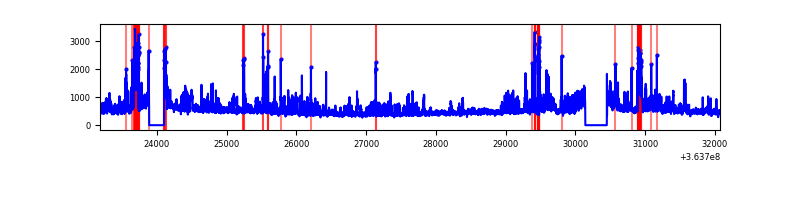

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8884 | 8361 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8884 | 8361 | 10 | 10 | 0.11% | 0.12% |  |
| C | 8884 | 8361 | 3 | 3 | 0.03% | 0.04% |  |
| D | 8884 | 8361 | 113 | 113 | 1.27% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14883 | 65.8 | 1048 | 1024 | 210.6 |
| A | 3 | 137 | 11158 | 48.11 | 1048 | 1024 | 210.6 |
| A | 0 | 226 | 8743 | 36.65 | 1048 | 1024 | 210.6 |
| B | 6 | 159 | 2299432 | 11593.28 | 1030 | 1003 | 198.3 |
| B | 10 | 245 | 260099 | 1306.88 | 1030 | 1003 | 198.3 |
| B | 4 | 80 | 199723 | 1002.34 | 1030 | 1003 | 198.3 |
| C | 14 | 238 | 197115 | 841.23 | 995 | 999 | 233.1 |
| C | 3 | 233 | 151760 | 646.68 | 995 | 999 | 233.1 |
| C | 14 | 254 | 53844 | 226.67 | 995 | 999 | 233.1 |
| D | 8 | 195 | 719215 | 2734.21 | 999 | 976 | 262.7 |
| D | 12 | 233 | 205420 | 778.28 | 999 | 976 | 262.7 |
| D | 13 | 249 | 190584 | 721.81 | 999 | 976 | 262.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

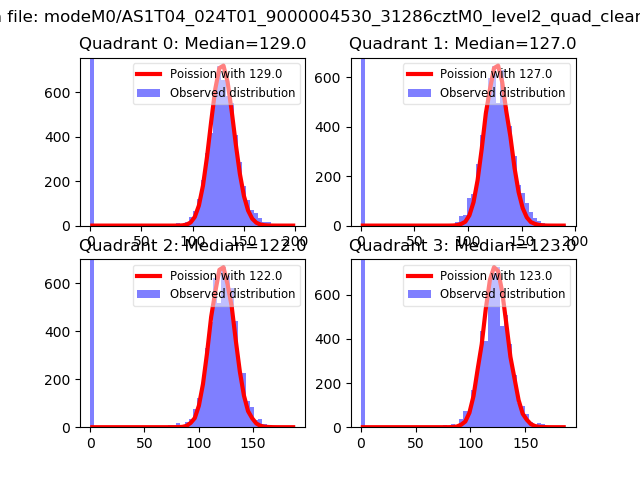

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

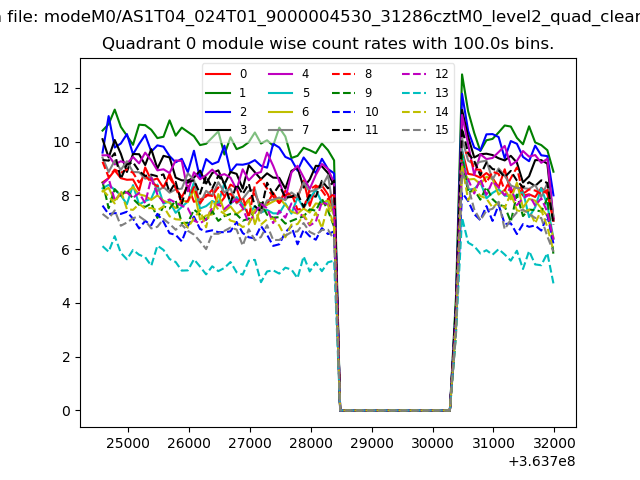

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

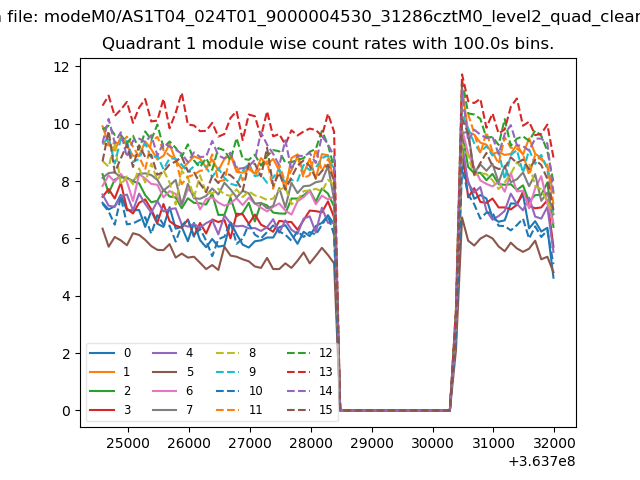

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

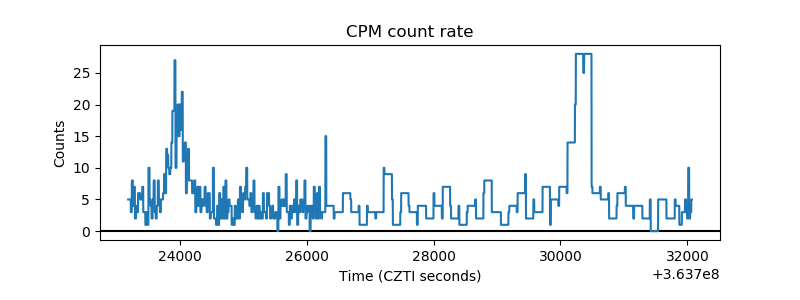

| _CPM_Rate |  |

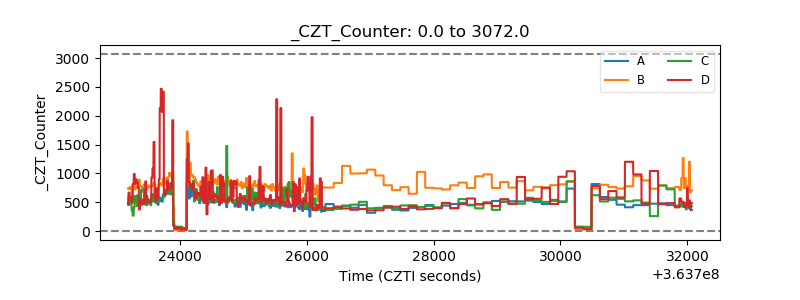

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

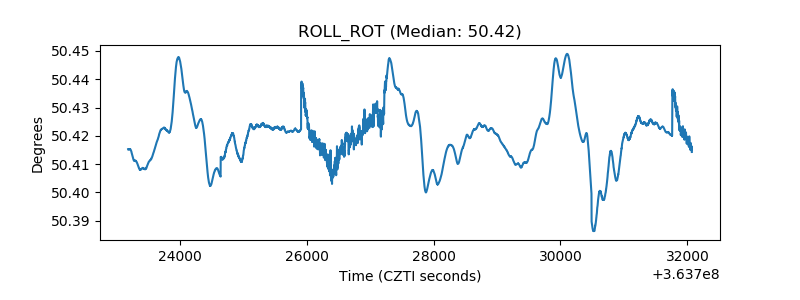

| _ROLL_ROT |  |
| _Roll_DEC |  |

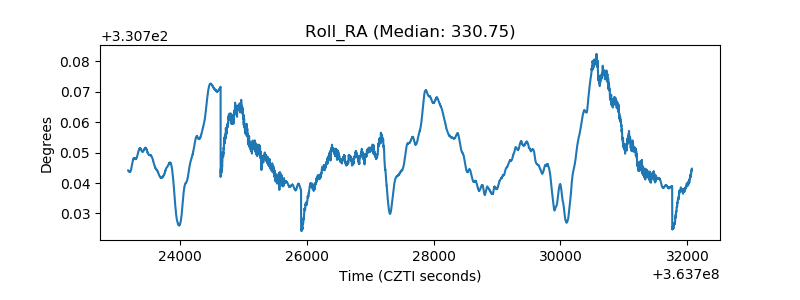

| _Roll_RA |  |
