| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T08_9000004532_31307cztM0_level2.evt | modeM0/AS1A10_058T08_9000004532_31307cztM0_level2_quad_clean.evt |
| Size (bytes) | 127,298,880 | 36,175,680 |
| Size | 121.4 MB | 34.5 MB |
| Events in quadrant A | 820,047 | 256,729 |
| Events in quadrant B | 1,218,894 | 254,139 |
| Events in quadrant C | 848,379 | 235,983 |
| Events in quadrant D | 864,209 | 237,997 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3932 | 614 |
| B | 0 | 5421 | 841 |
| C | 0 | 4139 | 732 |
| D | 0 | 4195 | 711 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 2 |
| B | 0 | 11 | 2 |
| C | 0 | 11 | 1 |
| D | 0 | 11 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 8 |
| B | 0 | 38 | 8 |
| C | 0 | 38 | 8 |
| D | 0 | 37 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1489 | 10 | 0.671592% |
| B | 1486 | 30 | 2.018843% |
| C | 1484 | 23 | 1.549865% |
| D | 1488 | 8 | 0.537634% |

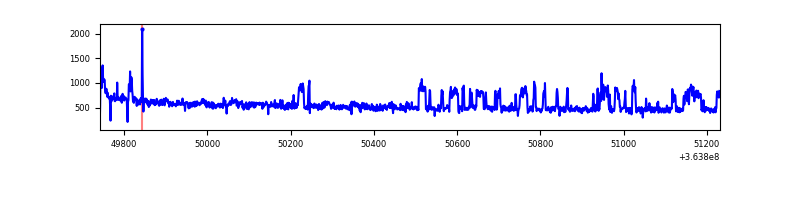

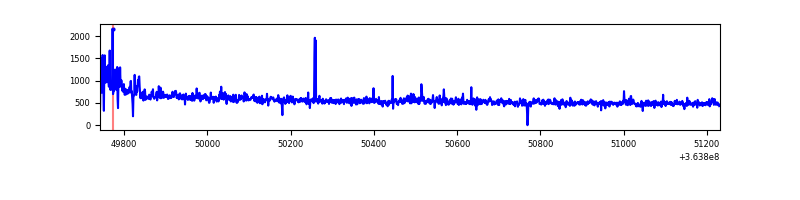

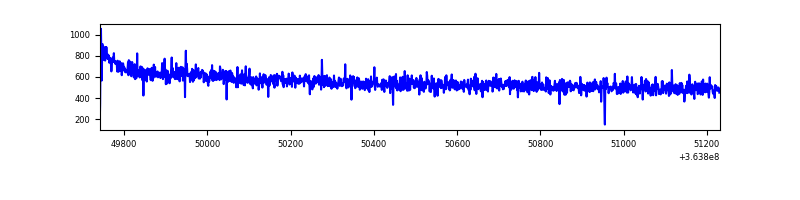

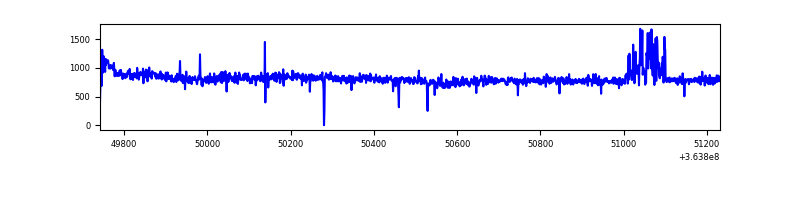

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1490 | 1490 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1490 | 1489 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1490 | 1489 | 1 | 1 | 0.07% | 0.07% |  |
| D | 1490 | 1490 | 1 | 1 | 0.07% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 2613 | 56.1 | 212 | 209 | 42.9 |
| A | 0 | 226 | 1775 | 36.54 | 212 | 209 | 42.9 |
| A | 3 | 137 | 1754 | 36.05 | 212 | 209 | 42.9 |
| B | 6 | 159 | 380490 | 9419.2 | 206 | 202 | 40.4 |
| B | 15 | 33 | 28234 | 694.31 | 206 | 202 | 40.4 |
| B | 12 | 111 | 4552 | 107.74 | 206 | 202 | 40.4 |
| C | 14 | 238 | 33201 | 701.96 | 195 | 197 | 47.0 |
| C | 3 | 233 | 28334 | 598.44 | 195 | 197 | 47.0 |
| C | 0 | 10 | 20875 | 439.8 | 195 | 197 | 47.0 |
| D | 8 | 195 | 108241 | 2223.34 | 199 | 194 | 48.6 |
| D | 2 | 234 | 3925 | 76.77 | 199 | 194 | 48.6 |
| D | 3 | 238 | 3142 | 60.66 | 199 | 194 | 48.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

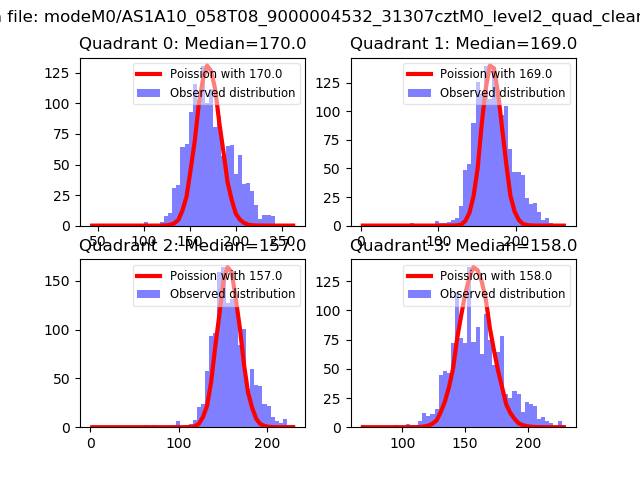

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

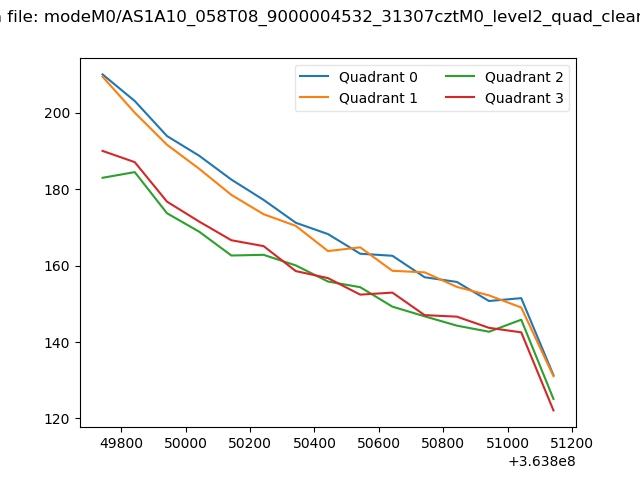

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

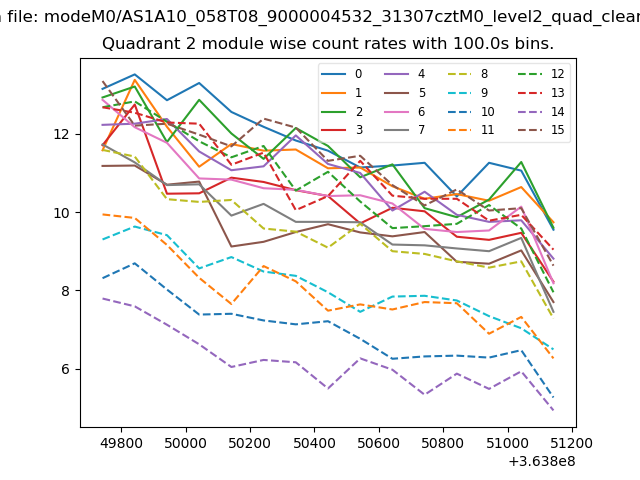

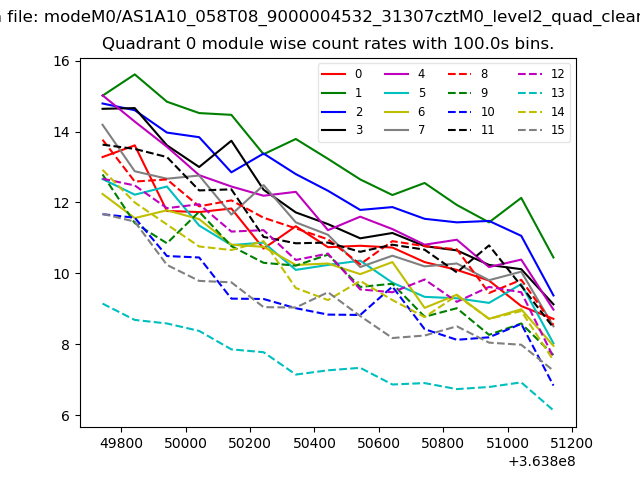

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

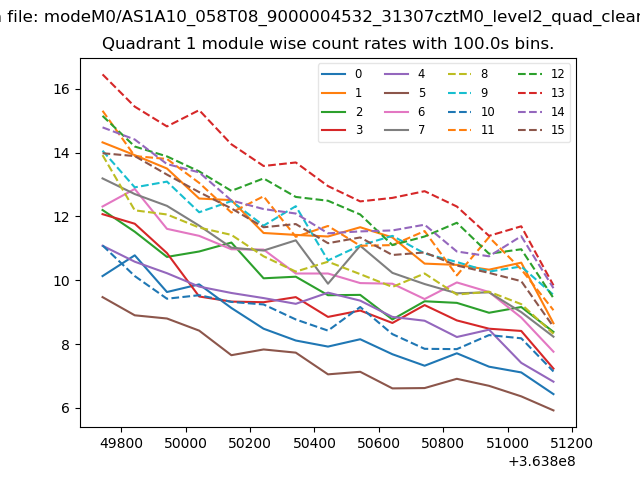

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

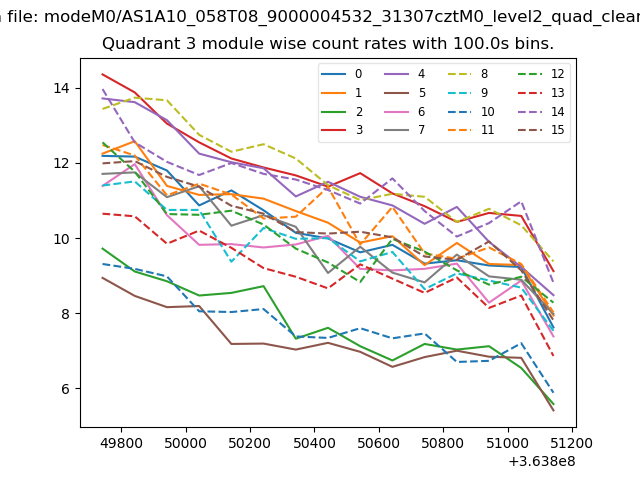

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

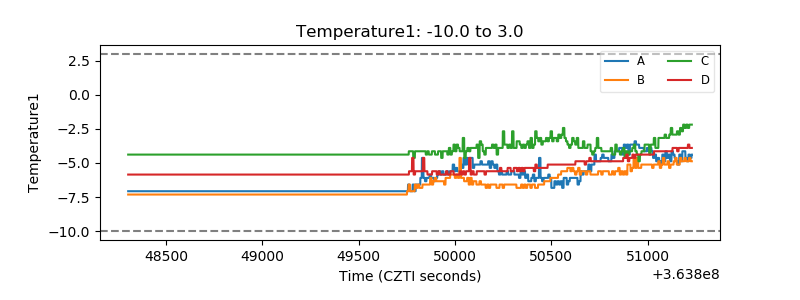

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

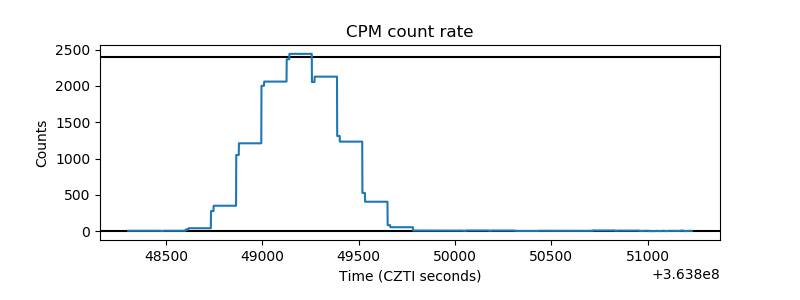

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

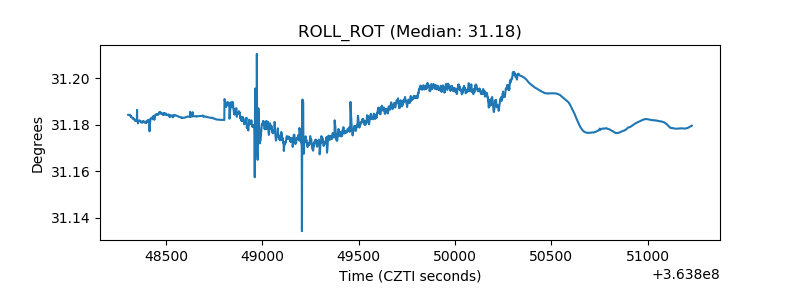

| _ROLL_ROT |  |

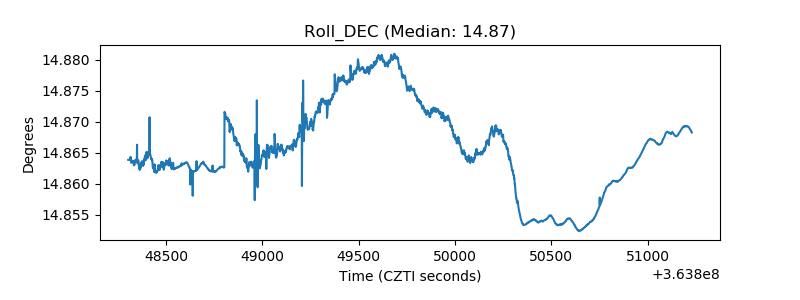

| _Roll_DEC |  |

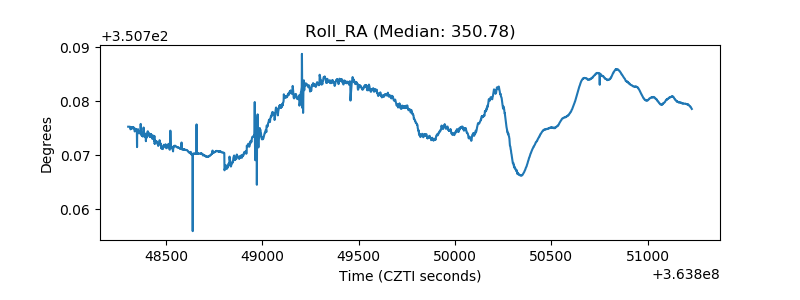

| _Roll_RA |  |

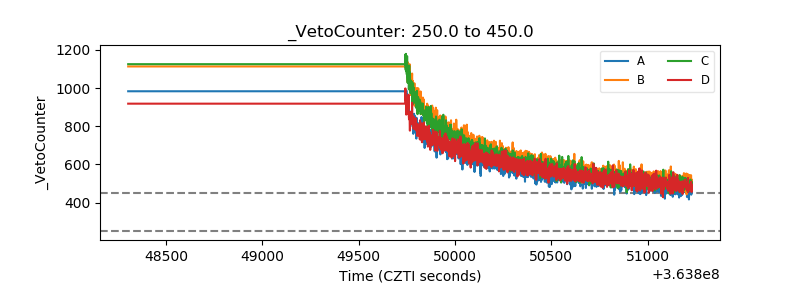

| Veto Counter |  |
