| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_058T08_9000004532_31310cztM0_level2.evt | modeM0/AS1A10_058T08_9000004532_31310cztM0_level2_quad_clean.evt |
| Size (bytes) | 561,559,680 | 78,635,520 |
| Size | 535.5 MB | 75.0 MB |
| Events in quadrant A | 3,455,808 | 503,080 |
| Events in quadrant B | 5,254,469 | 497,151 |
| Events in quadrant C | 4,074,437 | 468,906 |
| Events in quadrant D | 3,800,901 | 477,371 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13820 | 1 |
| B | 0 | 19414 | 1 |
| C | 0 | 16248 | 1 |
| D | 0 | 15091 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6221 | 73 | 1.173445% |
| B | 6221 | 155 | 2.491561% |
| C | 6222 | 229 | 3.680489% |
| D | 6222 | 53 | 0.851816% |

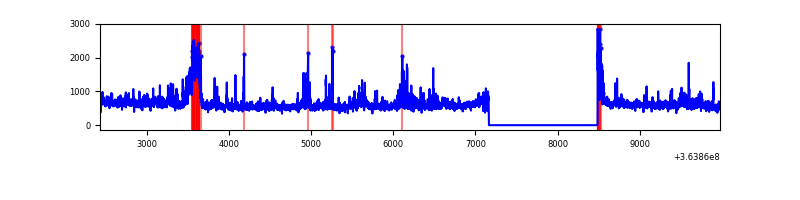

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7546 | 6222 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7546 | 6222 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7547 | 6223 | 49 | 49 | 0.65% | 0.79% |  |
| D | 7547 | 6223 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11672 | 61.7 | 895 | 884 | 174.8 |
| A | 3 | 137 | 8316 | 42.51 | 895 | 884 | 174.8 |
| A | 0 | 226 | 7801 | 39.56 | 895 | 884 | 174.8 |
| B | 6 | 159 | 1661543 | 10286.73 | 866 | 848 | 161.4 |
| B | 4 | 80 | 144022 | 886.85 | 866 | 848 | 161.4 |
| B | 0 | 230 | 28795 | 173.11 | 866 | 848 | 161.4 |
| C | 3 | 233 | 616689 | 3245.22 | 827 | 836 | 189.8 |
| C | 14 | 238 | 138034 | 722.96 | 827 | 836 | 189.8 |
| C | 0 | 10 | 59496 | 309.11 | 827 | 836 | 189.8 |
| D | 8 | 195 | 512850 | 2554.09 | 858 | 839 | 200.5 |
| D | 2 | 250 | 24086 | 115.96 | 858 | 839 | 200.5 |
| D | 2 | 234 | 23960 | 115.34 | 858 | 839 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

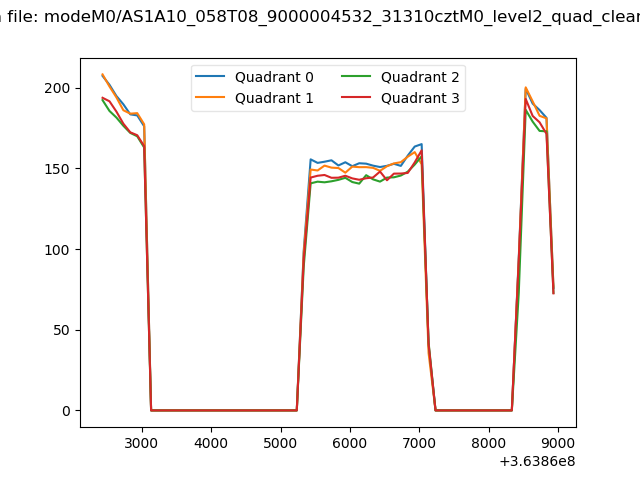

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

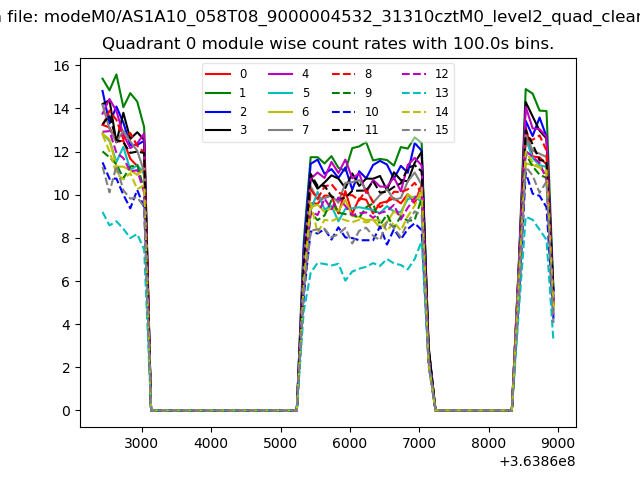

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

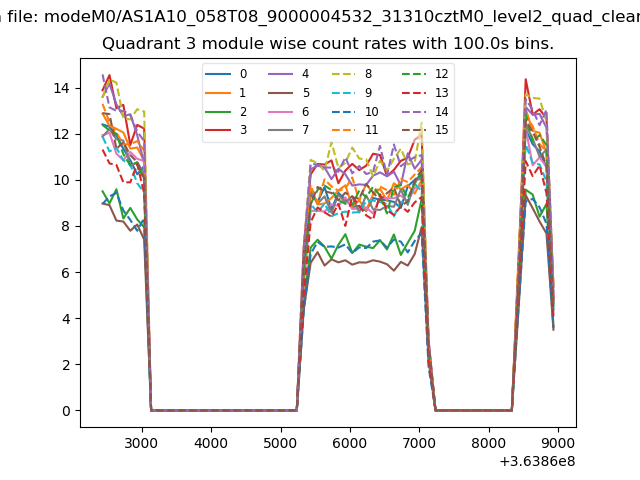

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

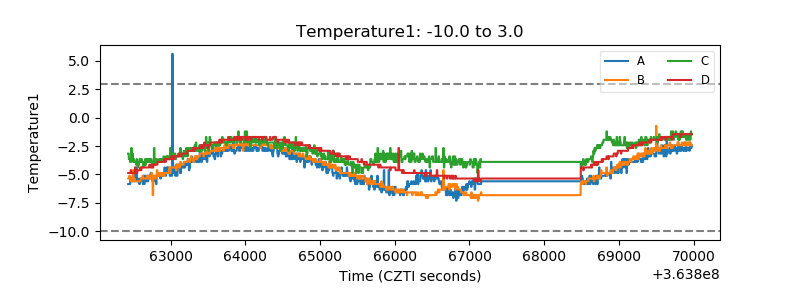

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

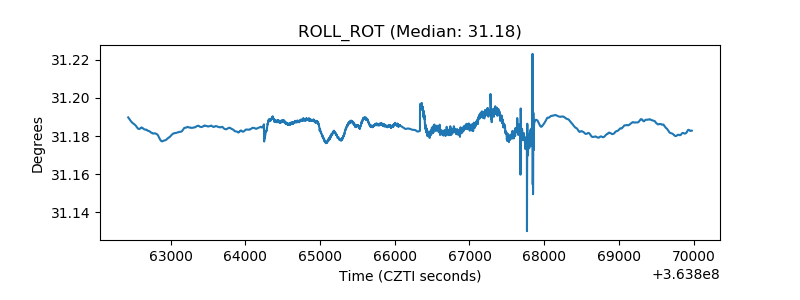

| _ROLL_ROT |  |
| _Roll_DEC |  |

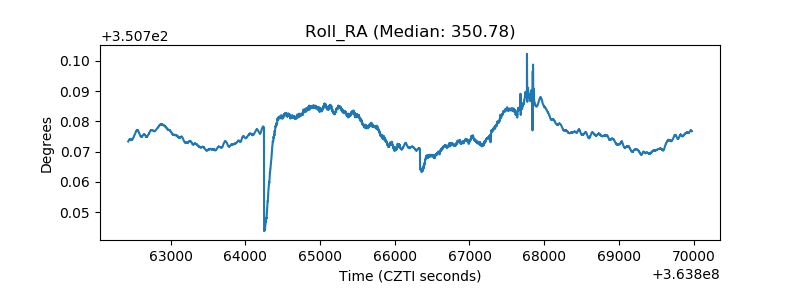

| _Roll_RA |  |

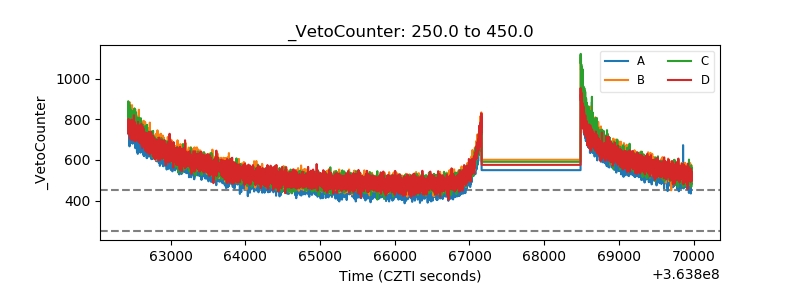

| Veto Counter |  |
