| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_025T01_9000004538_31327cztM0_level2.evt | modeM0/AS1T04_025T01_9000004538_31327cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,605,760 | 131,051,520 |
| Size | 509.8 MB | 125.0 MB |
| Events in quadrant A | 3,133,557 | 906,957 |
| Events in quadrant B | 5,383,999 | 878,725 |
| Events in quadrant C | 3,431,117 | 859,075 |
| Events in quadrant D | 3,790,918 | 860,649 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13601 | 1 |
| B | 0 | 20978 | 1 |
| C | 0 | 14450 | 1 |
| D | 0 | 15712 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6657 | 66 | 0.991438% |
| B | 6658 | 216 | 3.244217% |
| C | 6658 | 157 | 2.358065% |
| D | 6658 | 86 | 1.291679% |

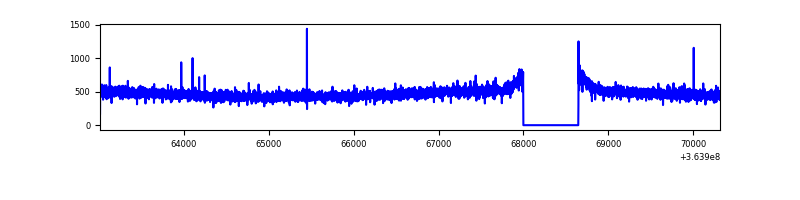

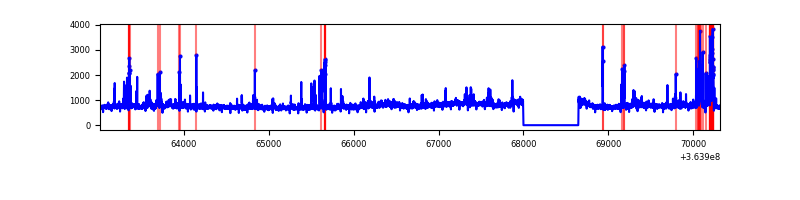

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7307 | 6658 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7308 | 6659 | 61 | 61 | 0.83% | 0.92% |  |
| C | 7308 | 6659 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7308 | 6659 | 13 | 13 | 0.18% | 0.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12591 | 73.27 | 811 | 796 | 161.0 |
| A | 3 | 137 | 8003 | 44.77 | 811 | 796 | 161.0 |
| A | 0 | 226 | 6933 | 38.12 | 811 | 796 | 161.0 |
| B | 6 | 159 | 1848266 | 12361.14 | 785 | 766 | 149.5 |
| B | 5 | 172 | 160734 | 1070.3 | 785 | 766 | 149.5 |
| B | 4 | 80 | 146216 | 973.17 | 785 | 766 | 149.5 |
| C | 3 | 233 | 249777 | 1414.13 | 761 | 764 | 176.1 |
| C | 14 | 238 | 138526 | 782.34 | 761 | 764 | 176.1 |
| C | 0 | 10 | 41848 | 233.31 | 761 | 764 | 176.1 |
| D | 8 | 195 | 640440 | 3452.78 | 784 | 764 | 185.3 |
| D | 12 | 233 | 122683 | 658.08 | 784 | 764 | 185.3 |
| D | 2 | 234 | 28601 | 150.26 | 784 | 764 | 185.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

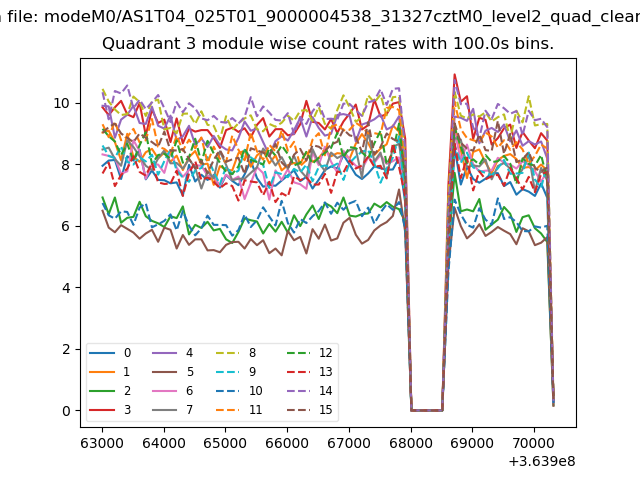

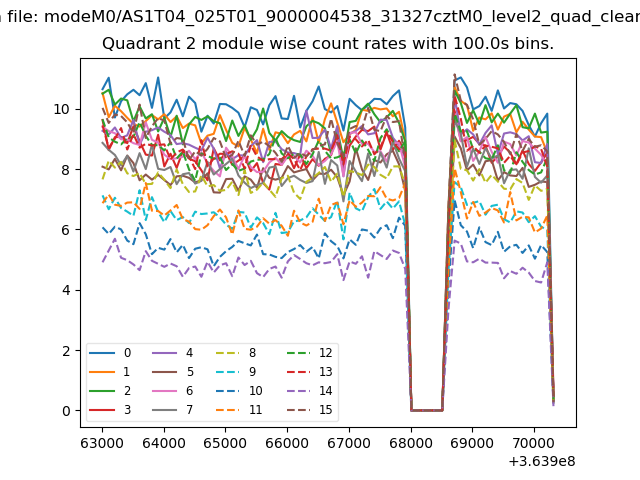

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

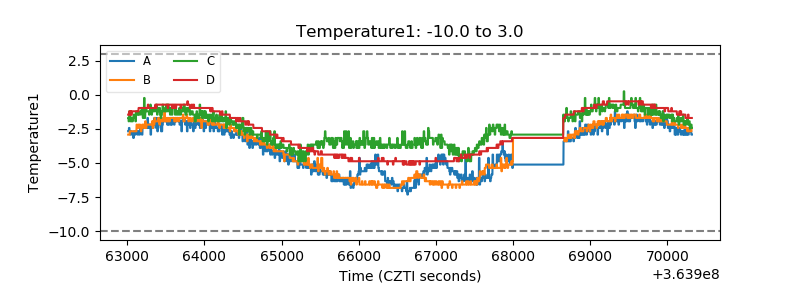

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

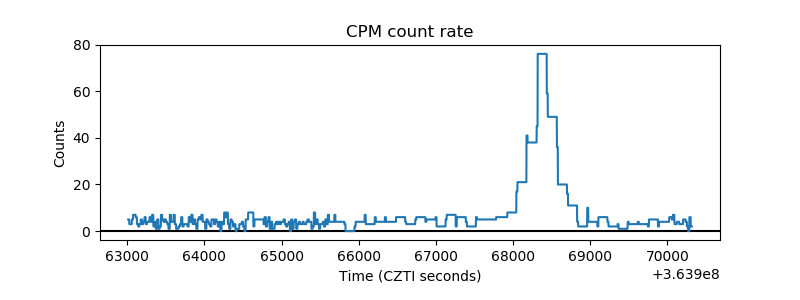

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

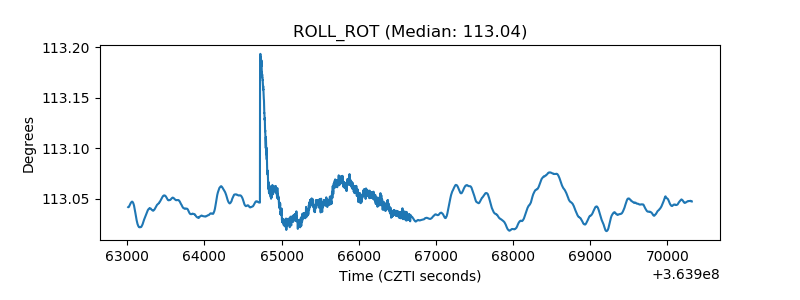

| _ROLL_ROT |  |
| _Roll_DEC |  |

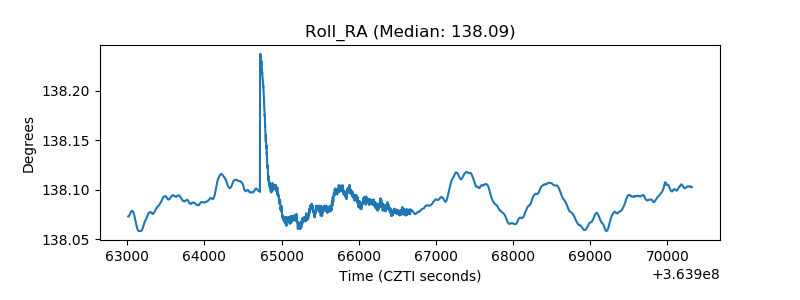

| _Roll_RA |  |
| Veto Counter |  |
