| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_025T01_9000004538_31328cztM0_level2.evt | modeM0/AS1T04_025T01_9000004538_31328cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,625,920 | 126,829,440 |
| Size | 501.3 MB | 121.0 MB |
| Events in quadrant A | 3,071,509 | 873,289 |
| Events in quadrant B | 5,298,809 | 848,956 |
| Events in quadrant C | 3,268,104 | 830,801 |
| Events in quadrant D | 3,832,354 | 827,801 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13548 | 1 |
| B | 0 | 20525 | 1 |
| C | 0 | 13938 | 1 |
| D | 0 | 15814 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6612 | 77 | 1.164549% |
| B | 6611 | 218 | 3.297534% |
| C | 6611 | 128 | 1.936167% |
| D | 6612 | 84 | 1.270417% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6857 | 6614 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6856 | 6613 | 43 | 43 | 0.63% | 0.65% |  |
| C | 6856 | 6613 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6857 | 6614 | 48 | 48 | 0.70% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12044 | 70.69 | 796 | 778 | 159.4 |
| A | 3 | 137 | 7922 | 44.83 | 796 | 778 | 159.4 |
| A | 0 | 226 | 6759 | 37.53 | 796 | 778 | 159.4 |
| B | 6 | 159 | 1899680 | 12874.54 | 775 | 755 | 147.5 |
| B | 5 | 172 | 176554 | 1191.9 | 775 | 755 | 147.5 |
| B | 4 | 80 | 60088 | 402.27 | 775 | 755 | 147.5 |
| C | 3 | 233 | 141355 | 796.74 | 752 | 755 | 176.5 |
| C | 14 | 238 | 125264 | 705.56 | 752 | 755 | 176.5 |
| C | 0 | 10 | 34618 | 191.89 | 752 | 755 | 176.5 |
| D | 8 | 195 | 724115 | 3929.34 | 769 | 748 | 184.1 |
| D | 12 | 233 | 87362 | 470.49 | 769 | 748 | 184.1 |
| D | 13 | 249 | 50344 | 269.41 | 769 | 748 | 184.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

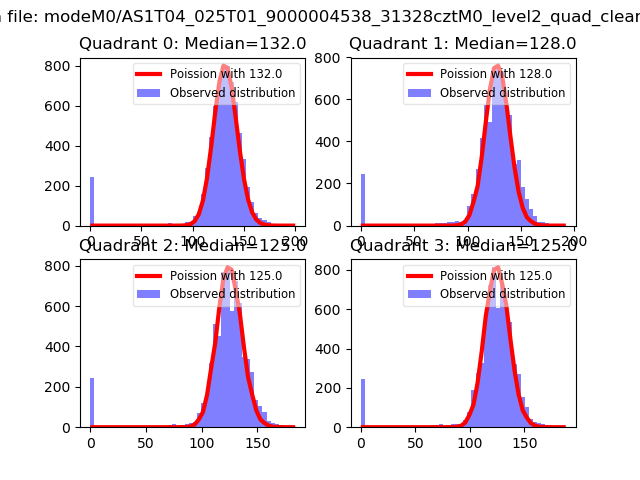

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

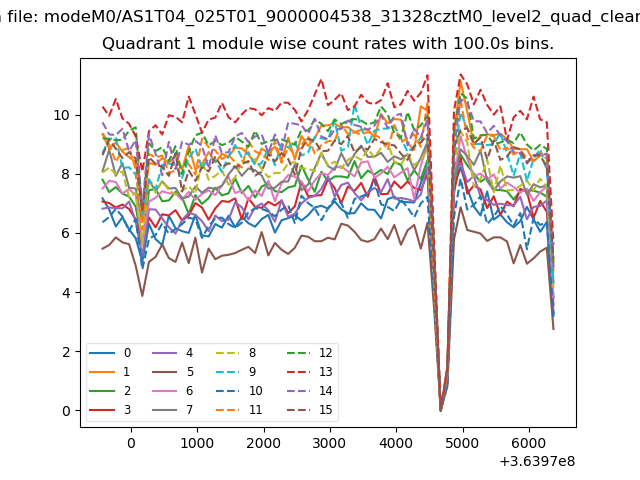

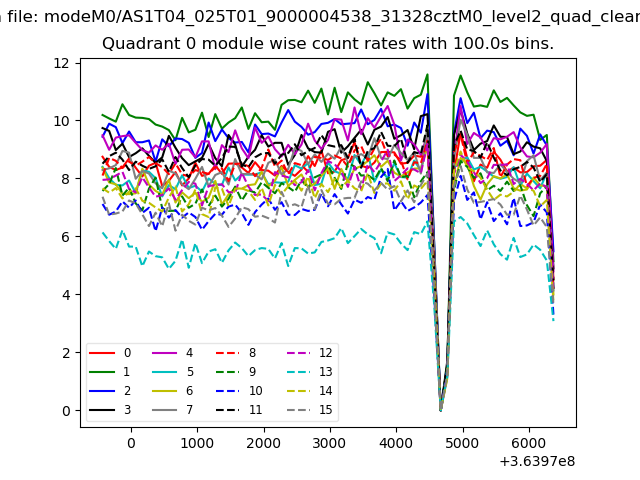

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

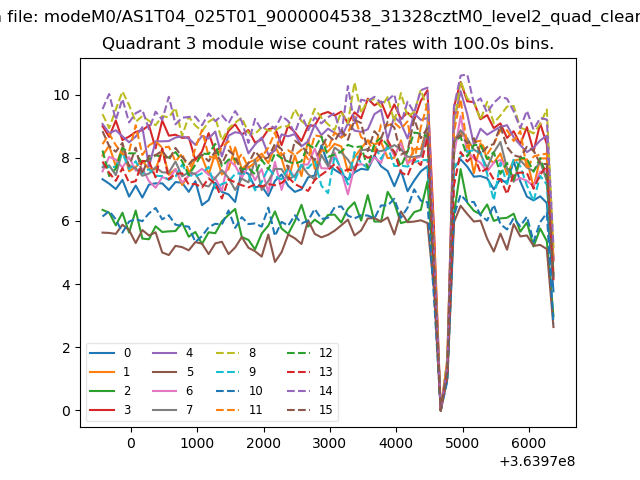

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

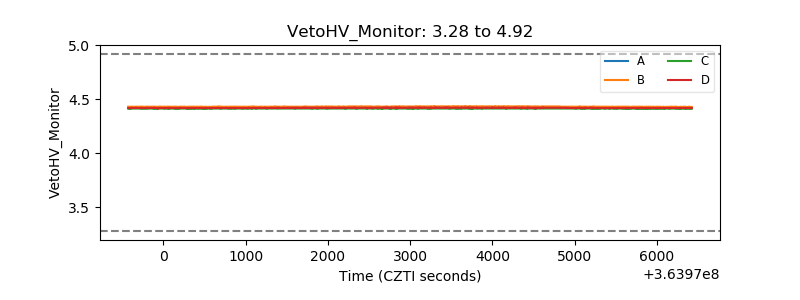

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

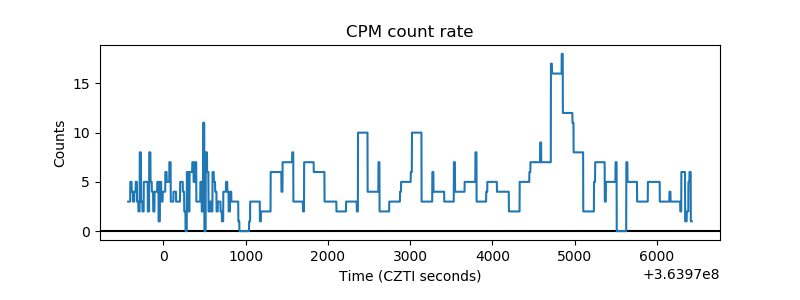

| _CPM_Rate |  |

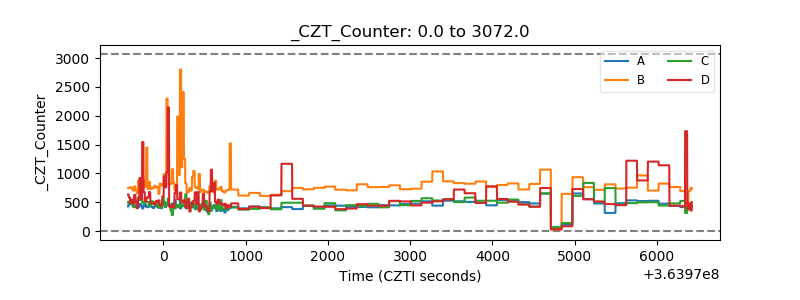

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

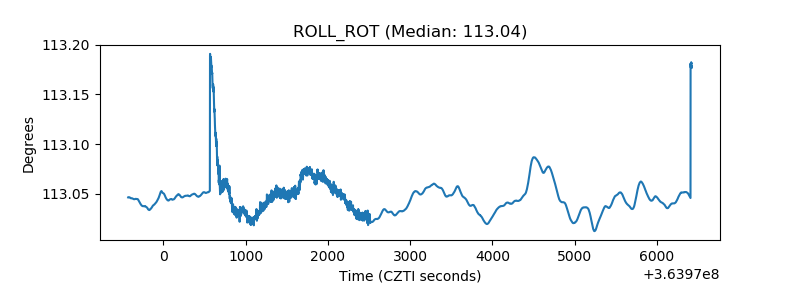

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
