| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_025T01_9000004538_31337cztM0_level2.evt | modeM0/AS1T04_025T01_9000004538_31337cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,146,880 | 134,714,880 |
| Size | 480.8 MB | 128.5 MB |
| Events in quadrant A | 3,084,913 | 938,989 |
| Events in quadrant B | 4,753,544 | 933,242 |
| Events in quadrant C | 3,518,375 | 899,637 |
| Events in quadrant D | 3,515,525 | 900,303 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12732 | 1 |
| B | 0 | 18068 | 1 |
| C | 0 | 14235 | 1 |
| D | 0 | 14228 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5844 | 28 | 0.479124% |
| B | 5845 | 103 | 1.762190% |
| C | 5845 | 289 | 4.944397% |
| D | 5845 | 29 | 0.496151% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7134 | 5845 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7135 | 5846 | 13 | 13 | 0.18% | 0.22% |  |
| C | 7135 | 5846 | 22 | 22 | 0.31% | 0.38% |  |
| D | 7135 | 5846 | 7 | 7 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11734 | 69.86 | 799 | 785 | 156.7 |
| A | 3 | 137 | 7032 | 39.86 | 799 | 785 | 156.7 |
| A | 0 | 226 | 6828 | 38.56 | 799 | 785 | 156.7 |
| B | 6 | 159 | 1546096 | 10763.19 | 779 | 762 | 143.6 |
| B | 4 | 80 | 61348 | 421.98 | 779 | 762 | 143.6 |
| B | 0 | 230 | 49625 | 340.33 | 779 | 762 | 143.6 |
| C | 14 | 238 | 169674 | 977.02 | 759 | 767 | 172.9 |
| C | 0 | 10 | 151180 | 870.04 | 759 | 767 | 172.9 |
| C | 3 | 233 | 93009 | 533.56 | 759 | 767 | 172.9 |
| D | 8 | 195 | 528191 | 2884.86 | 783 | 764 | 182.8 |
| D | 2 | 234 | 22725 | 120.12 | 783 | 764 | 182.8 |
| D | 2 | 153 | 19484 | 102.39 | 783 | 764 | 182.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

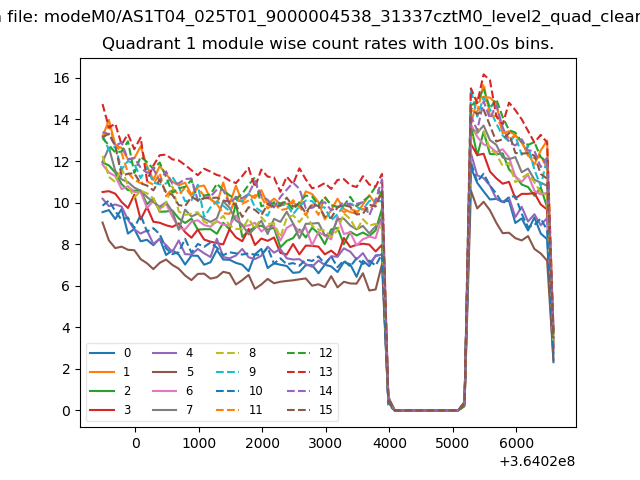

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

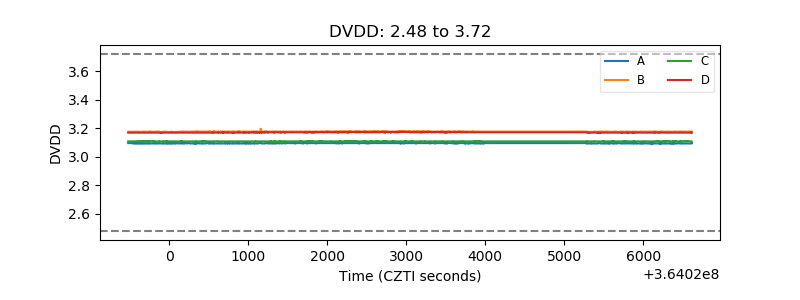

| D_VDD |  |

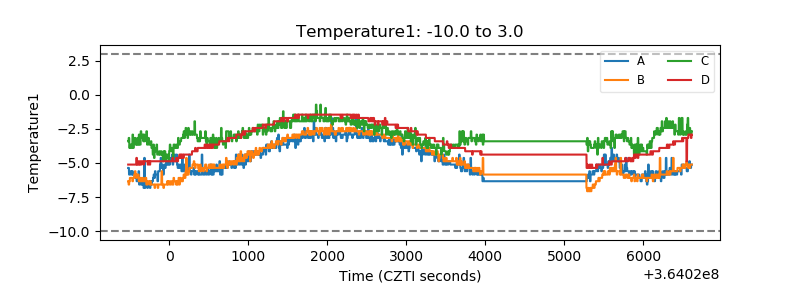

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

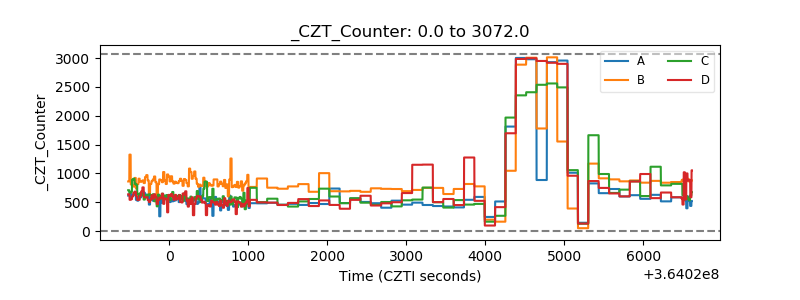

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

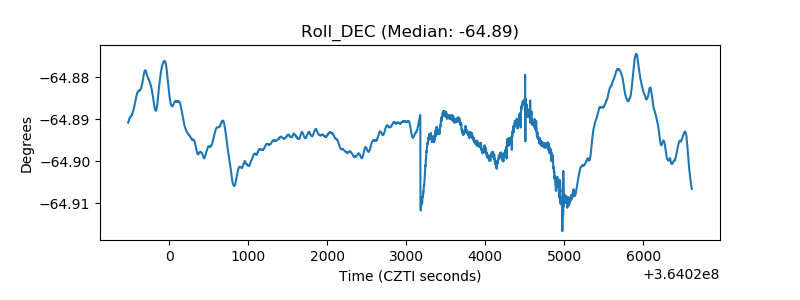

| _Roll_DEC |  |
| _Roll_RA |  |

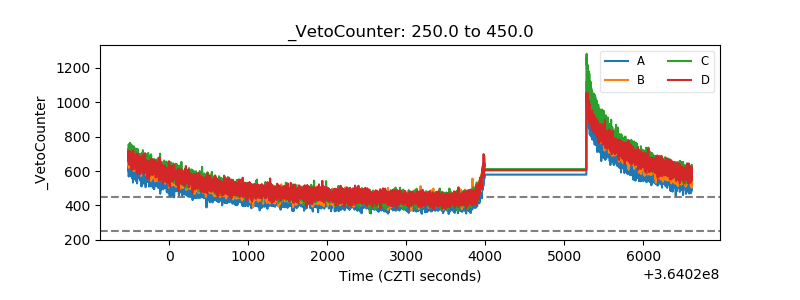

| Veto Counter |  |
