| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T42_9000004544_31347cztM0_level2.evt | modeM0/AS1A10_053T42_9000004544_31347cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,014,059,520 | 154,506,240 |
| Size | 967.1 MB | 147.3 MB |
| Events in quadrant A | 5,773,080 | 984,704 |
| Events in quadrant B | 9,658,762 | 973,744 |
| Events in quadrant C | 6,539,685 | 939,586 |
| Events in quadrant D | 7,912,133 | 934,120 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25135 | 3 |
| B | 0 | 37868 | 3 |
| C | 0 | 27232 | 3 |
| D | 0 | 31869 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 248 | 0 |
| B | 0 | 248 | 0 |
| C | 0 | 248 | 0 |
| D | 0 | 248 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12256 | 77 | 0.628264% |
| B | 12257 | 293 | 2.390471% |
| C | 12257 | 437 | 3.565310% |
| D | 12257 | 450 | 3.671371% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13416 | 12258 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13417 | 12259 | 37 | 37 | 0.28% | 0.30% |  |
| C | 13417 | 12259 | 15 | 15 | 0.11% | 0.12% |  |
| D | 13417 | 12259 | 255 | 255 | 1.90% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 22805 | 71.38 | 1496 | 1467 | 298.9 |
| A | 3 | 137 | 15365 | 46.49 | 1496 | 1467 | 298.9 |
| A | 0 | 226 | 12661 | 37.45 | 1496 | 1467 | 298.9 |
| B | 6 | 159 | 3415905 | 12000.18 | 1468 | 1427 | 284.5 |
| B | 0 | 190 | 254716 | 890.18 | 1468 | 1427 | 284.5 |
| B | 4 | 80 | 103245 | 357.84 | 1468 | 1427 | 284.5 |
| C | 3 | 233 | 377380 | 1136.31 | 1409 | 1416 | 330.9 |
| C | 14 | 238 | 283942 | 853.9 | 1409 | 1416 | 330.9 |
| C | 0 | 10 | 259716 | 780.68 | 1409 | 1416 | 330.9 |
| D | 8 | 195 | 1298010 | 3852.87 | 1424 | 1388 | 336.5 |
| D | 12 | 79 | 1010328 | 2998.04 | 1424 | 1388 | 336.5 |
| D | 11 | 176 | 77840 | 227.17 | 1424 | 1388 | 336.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

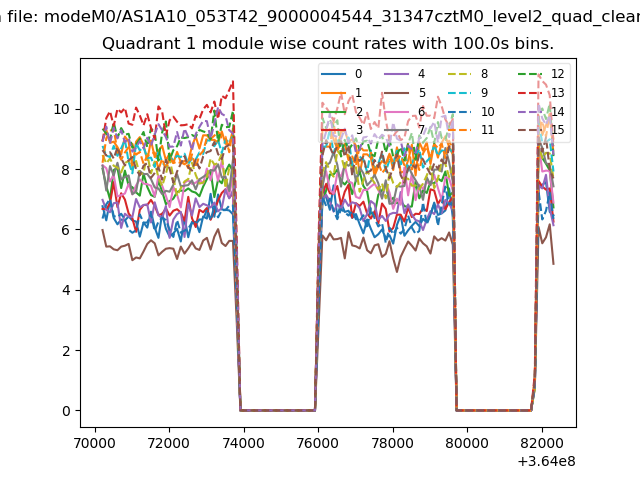

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

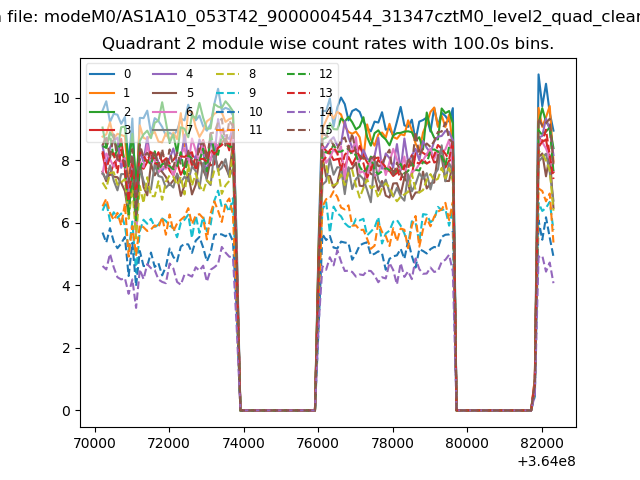

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

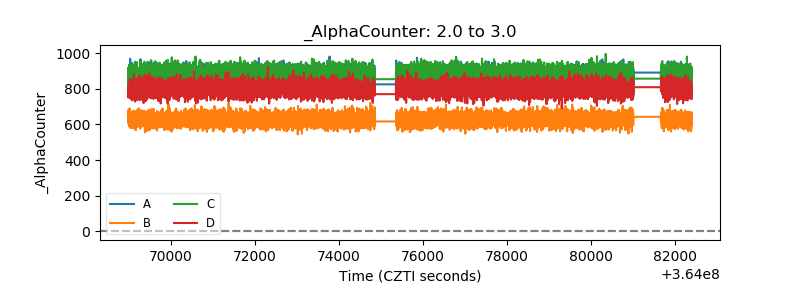

| Alpha Counter |  |

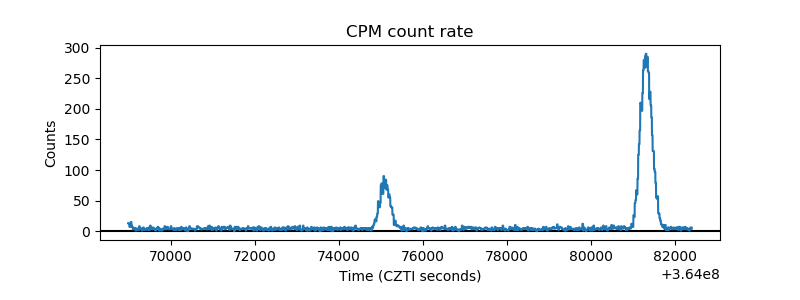

| _CPM_Rate |  |

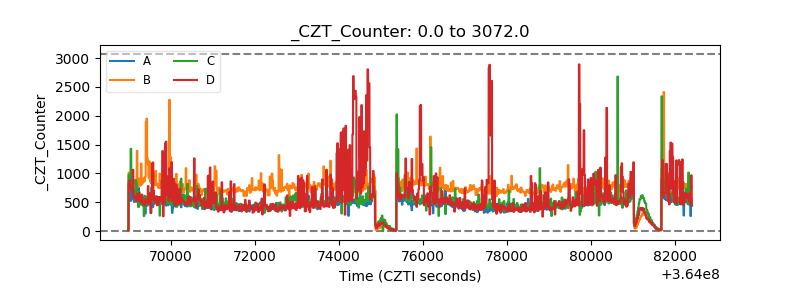

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

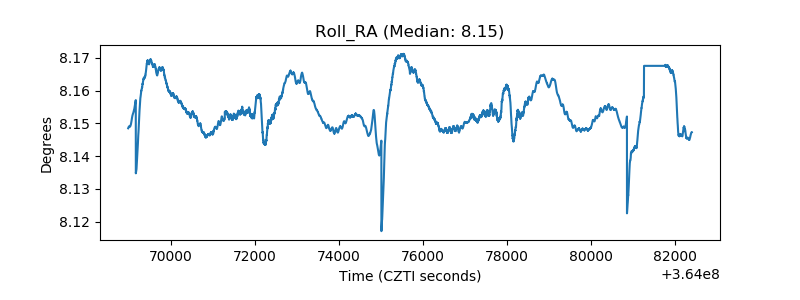

| _Roll_RA |  |

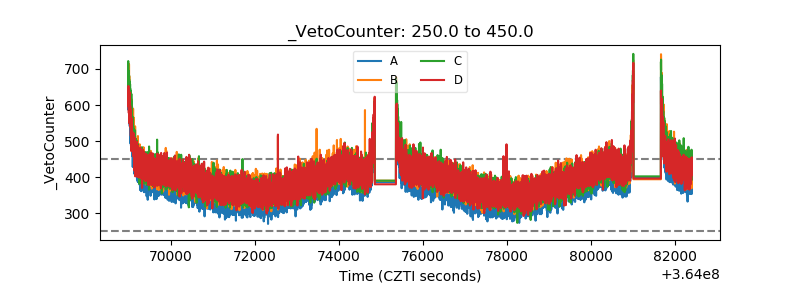

| Veto Counter |  |
