| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T01_9000004546_31357cztM0_level2.evt | modeM0/AS1A10_101T01_9000004546_31357cztM0_level2_quad_clean.evt |
| Size (bytes) | 636,727,680 | 80,925,120 |
| Size | 607.2 MB | 77.2 MB |
| Events in quadrant A | 3,779,908 | 496,819 |
| Events in quadrant B | 6,451,937 | 484,541 |
| Events in quadrant C | 3,937,443 | 468,740 |
| Events in quadrant D | 4,598,404 | 470,423 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15925 | 2 |
| B | 0 | 24713 | 4 |
| C | 0 | 16285 | 2 |
| D | 0 | 18657 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7611 | 183 | 2.404415% |
| B | 7610 | 464 | 6.097240% |
| C | 7610 | 289 | 3.797635% |
| D | 7610 | 182 | 2.391590% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7836 | 7612 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7835 | 7611 | 64 | 64 | 0.82% | 0.84% |  |
| C | 7835 | 7611 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7835 | 7611 | 17 | 17 | 0.22% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 16589 | 79.45 | 978 | 959 | 196.7 |
| A | 3 | 137 | 10178 | 46.86 | 978 | 959 | 196.7 |
| A | 0 | 226 | 8366 | 37.65 | 978 | 959 | 196.7 |
| B | 6 | 159 | 2046515 | 10995.07 | 946 | 919 | 186.0 |
| B | 12 | 18 | 566322 | 3039.04 | 946 | 919 | 186.0 |
| B | 0 | 190 | 59154 | 313.01 | 946 | 919 | 186.0 |
| C | 14 | 238 | 169366 | 778.26 | 916 | 922 | 216.4 |
| C | 3 | 233 | 96748 | 442.75 | 916 | 922 | 216.4 |
| C | 0 | 10 | 32895 | 147.72 | 916 | 922 | 216.4 |
| D | 8 | 195 | 882887 | 3898.55 | 939 | 913 | 226.2 |
| D | 2 | 250 | 103125 | 451.8 | 939 | 913 | 226.2 |
| D | 2 | 234 | 38387 | 165.64 | 939 | 913 | 226.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

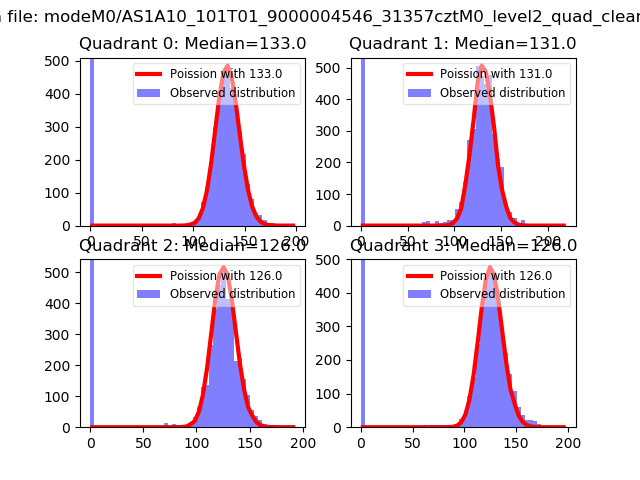

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

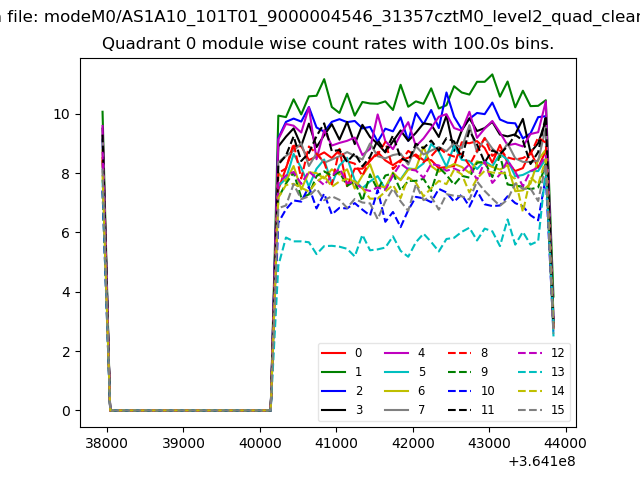

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

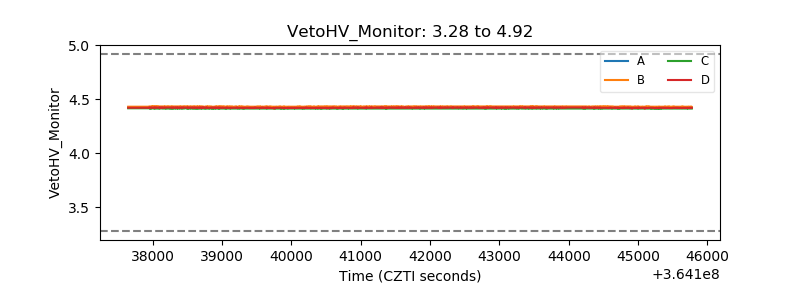

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

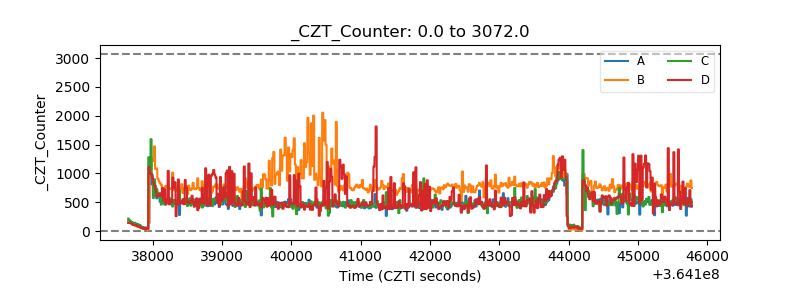

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

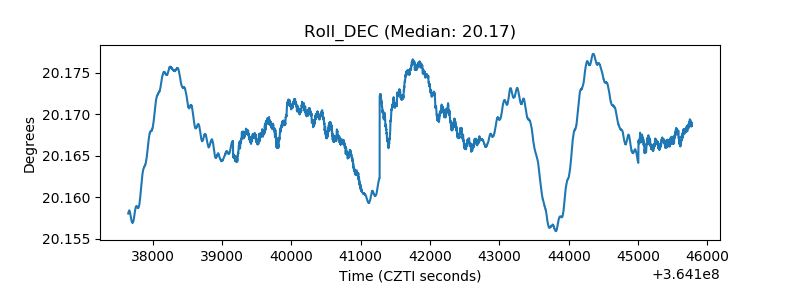

| _Roll_DEC |  |
| _Roll_RA |  |

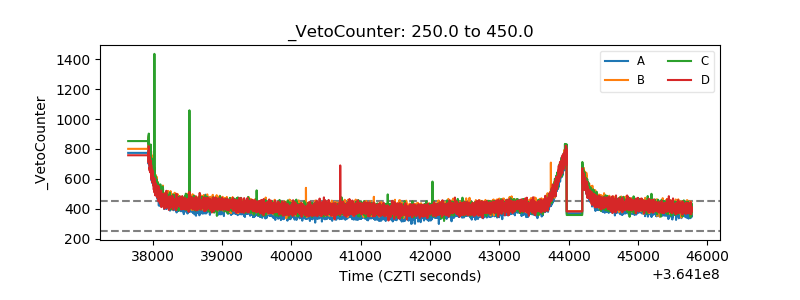

| Veto Counter |  |
