| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T01_9000004546_31362cztM0_level2.evt | modeM0/AS1A10_101T01_9000004546_31362cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,726,720 | 101,963,520 |
| Size | 518.5 MB | 97.2 MB |
| Events in quadrant A | 3,227,951 | 669,260 |
| Events in quadrant B | 5,322,795 | 666,446 |
| Events in quadrant C | 3,723,791 | 638,258 |
| Events in quadrant D | 3,726,876 | 635,613 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14148 | 2 |
| B | 0 | 20903 | 2 |
| C | 0 | 15476 | 3 |
| D | 0 | 15856 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6871 | 36 | 0.523941% |
| B | 6871 | 108 | 1.571824% |
| C | 6870 | 363 | 5.283843% |
| D | 6870 | 108 | 1.572052% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7786 | 6872 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7786 | 6872 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7785 | 6871 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7785 | 6871 | 59 | 59 | 0.76% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14415 | 81.41 | 836 | 819 | 167.0 |
| A | 3 | 137 | 8714 | 47.27 | 836 | 819 | 167.0 |
| A | 0 | 226 | 6908 | 36.46 | 836 | 819 | 167.0 |
| B | 6 | 159 | 1933798 | 12018.32 | 828 | 806 | 160.8 |
| B | 4 | 80 | 63951 | 392.6 | 828 | 806 | 160.8 |
| B | 0 | 190 | 57690 | 353.67 | 828 | 806 | 160.8 |
| C | 14 | 238 | 236463 | 1264.34 | 789 | 795 | 186.4 |
| C | 3 | 233 | 198234 | 1059.24 | 789 | 795 | 186.4 |
| C | 14 | 254 | 153822 | 820.98 | 789 | 795 | 186.4 |
| D | 8 | 195 | 488532 | 2499.64 | 807 | 784 | 195.1 |
| D | 2 | 250 | 75770 | 384.29 | 807 | 784 | 195.1 |
| D | 10 | 203 | 72902 | 369.59 | 807 | 784 | 195.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

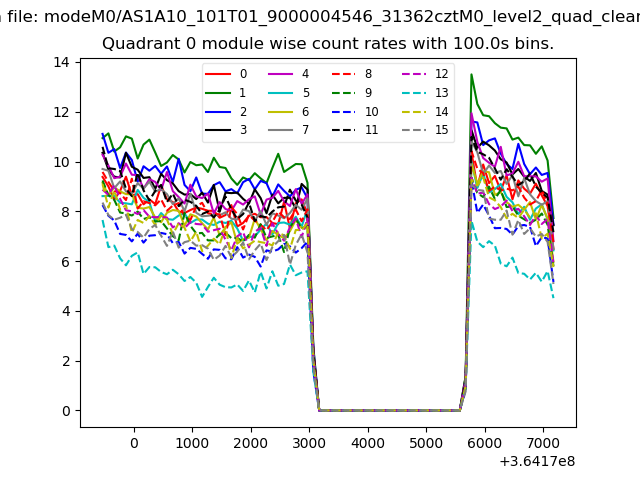

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

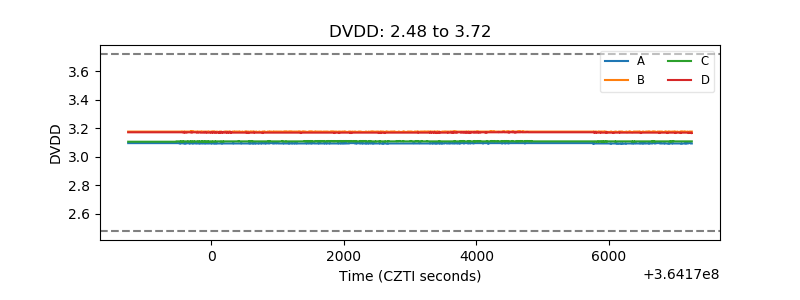

| D_VDD |  |

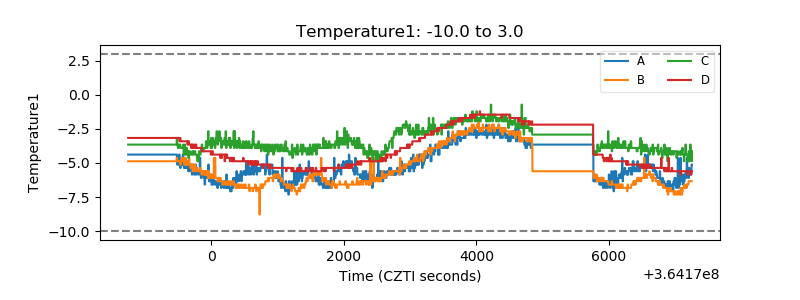

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

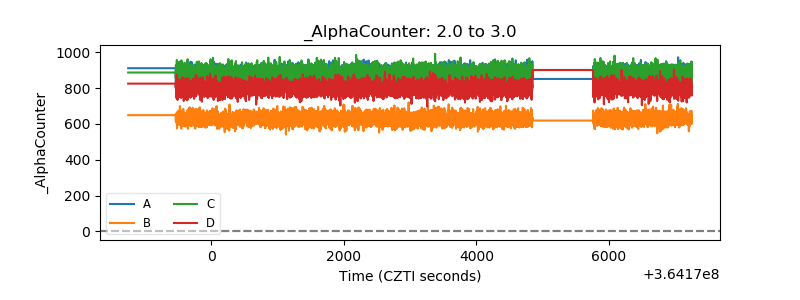

| Alpha Counter |  |
| _CPM_Rate |  |

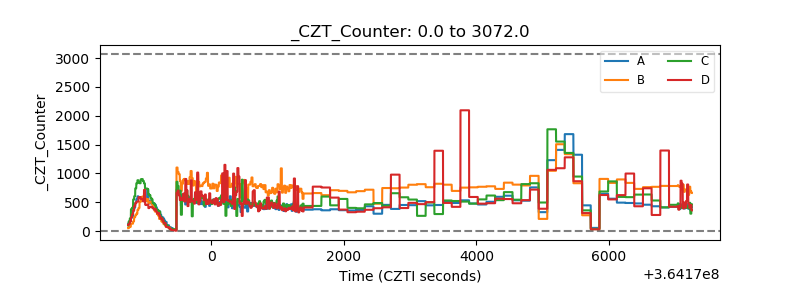

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

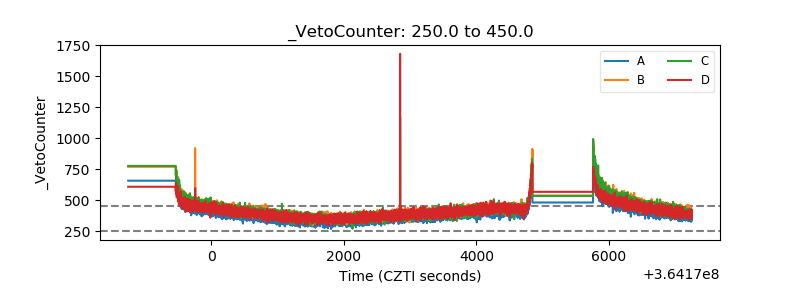

| Veto Counter |  |
