| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_101T01_9000004546_31368cztM0_level2.evt | modeM0/AS1A10_101T01_9000004546_31368cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,939,443,840 | 268,185,600 |
| Size | 1.8 GB | 255.8 MB |
| Events in quadrant A | 10,650,940 | 1,764,945 |
| Events in quadrant B | 16,450,228 | 1,759,216 |
| Events in quadrant C | 18,823,251 | 1,537,242 |
| Events in quadrant D | 11,436,715 | 1,652,219 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43428 | 4 |
| B | 0 | 62991 | 5 |
| C | 0 | 69991 | 4 |
| D | 0 | 46930 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 416 | 0 |
| B | 0 | 416 | 0 |
| C | 0 | 416 | 0 |
| D | 0 | 416 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51 | 0 |
| B | 0 | 51 | 0 |
| C | 0 | 51 | 0 |
| D | 0 | 51 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20455 | 207 | 1.011978% |
| B | 20455 | 455 | 2.224395% |
| C | 20455 | 2583 | 12.627719% |
| D | 20455 | 206 | 1.007089% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25565 | 20459 | 0 | 0 | 0.00% | 0.00% |  |
| B | 25565 | 20459 | 16 | 16 | 0.06% | 0.08% |  |
| C | 25565 | 20458 | 1353 | 1353 | 5.29% | 6.61% |  |
| D | 25565 | 20459 | 48 | 48 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 37260 | 63.77 | 2760 | 2716 | 541.7 |
| A | 3 | 137 | 26194 | 43.34 | 2760 | 2716 | 541.7 |
| A | 0 | 226 | 23656 | 38.66 | 2760 | 2716 | 541.7 |
| B | 6 | 159 | 5422133 | 10747.96 | 2690 | 2631 | 504.2 |
| B | 4 | 80 | 308309 | 606.22 | 2690 | 2631 | 504.2 |
| B | 0 | 190 | 131803 | 256.17 | 2690 | 2631 | 504.2 |
| C | 3 | 233 | 8056655 | 14210.38 | 2478 | 2499 | 566.8 |
| C | 14 | 238 | 449817 | 789.23 | 2478 | 2499 | 566.8 |
| C | 0 | 10 | 378179 | 662.83 | 2478 | 2499 | 566.8 |
| D | 8 | 195 | 921230 | 1489.95 | 2637 | 2577 | 616.6 |
| D | 10 | 203 | 211698 | 339.17 | 2637 | 2577 | 616.6 |
| D | 12 | 233 | 177476 | 283.67 | 2637 | 2577 | 616.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

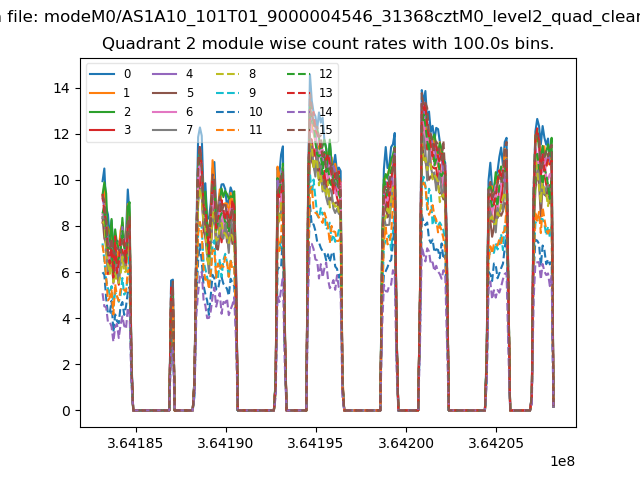

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
