| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T05_9000004548_31372cztM0_level2.evt | modeM0/AS1A10_064T05_9000004548_31372cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,860,800 | 83,655,360 |
| Size | 640.7 MB | 79.8 MB |
| Events in quadrant A | 4,054,275 | 508,013 |
| Events in quadrant B | 6,304,717 | 502,375 |
| Events in quadrant C | 4,453,228 | 480,835 |
| Events in quadrant D | 4,990,893 | 483,190 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17043 | 2 |
| B | 0 | 24740 | 2 |
| C | 0 | 18118 | 2 |
| D | 0 | 20248 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8039 | 350 | 4.353775% |
| B | 8040 | 504 | 6.268657% |
| C | 8040 | 485 | 6.032338% |
| D | 8040 | 344 | 4.278607% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8514 | 8042 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8515 | 8042 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8515 | 8042 | 27 | 27 | 0.32% | 0.34% |  |
| D | 8515 | 8043 | 36 | 36 | 0.42% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14941 | 65.3 | 1048 | 1023 | 213.1 |
| A | 3 | 137 | 11243 | 47.95 | 1048 | 1023 | 213.1 |
| A | 3 | 15 | 10797 | 45.86 | 1048 | 1023 | 213.1 |
| B | 6 | 159 | 2176605 | 10838.22 | 1018 | 991 | 200.7 |
| B | 0 | 190 | 47954 | 233.95 | 1018 | 991 | 200.7 |
| B | 12 | 111 | 25182 | 120.51 | 1018 | 991 | 200.7 |
| C | 3 | 233 | 332606 | 1423.16 | 981 | 986 | 233.0 |
| C | 14 | 238 | 156137 | 665.84 | 981 | 986 | 233.0 |
| C | 0 | 10 | 57691 | 243.35 | 981 | 986 | 233.0 |
| D | 8 | 195 | 931318 | 3839.81 | 1014 | 987 | 242.3 |
| D | 1 | 52 | 81820 | 333.63 | 1014 | 987 | 242.3 |
| D | 12 | 233 | 66746 | 271.41 | 1014 | 987 | 242.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

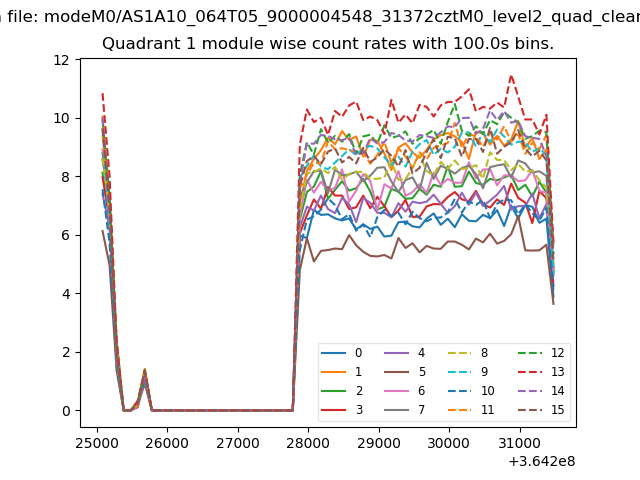

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

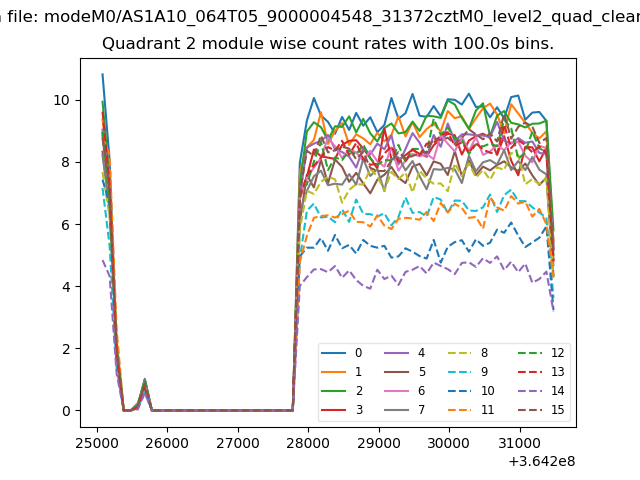

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

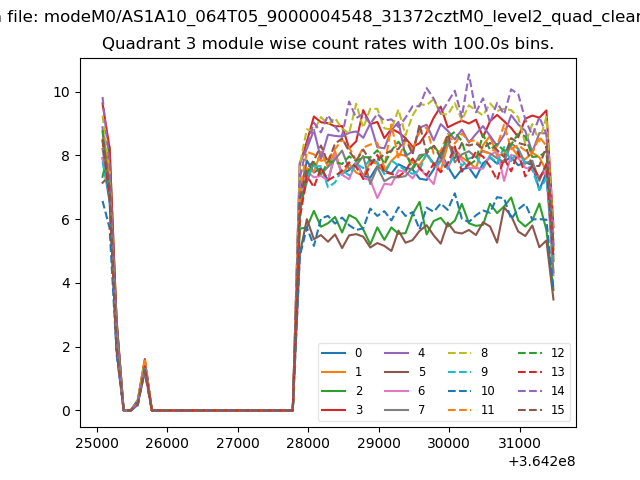

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
