| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_064T05_9000004548_31382cztM0_level2.evt | modeM0/AS1A10_064T05_9000004548_31382cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,919,040 | 93,576,960 |
| Size | 502.5 MB | 89.2 MB |
| Events in quadrant A | 3,281,477 | 623,520 |
| Events in quadrant B | 4,972,627 | 619,263 |
| Events in quadrant C | 3,705,094 | 576,121 |
| Events in quadrant D | 3,584,770 | 588,376 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13060 | 1 |
| B | 0 | 18829 | 1 |
| C | 0 | 14766 | 3 |
| D | 0 | 14528 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6111 | 78 | 1.276387% |
| B | 6111 | 156 | 2.552774% |
| C | 6110 | 190 | 3.109656% |
| D | 6110 | 52 | 0.851064% |

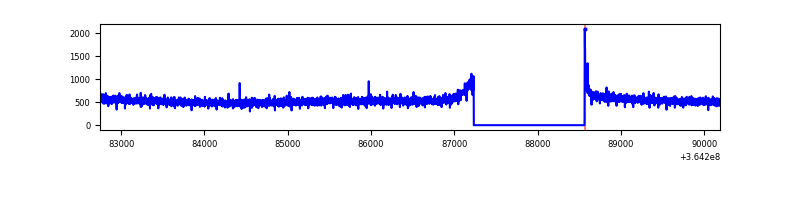

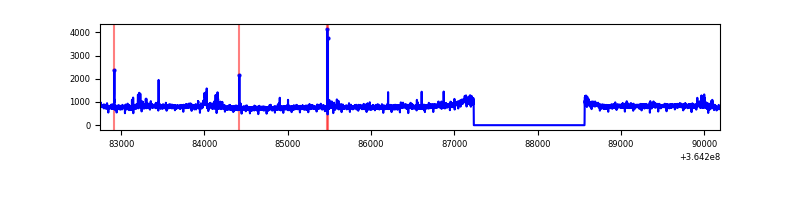

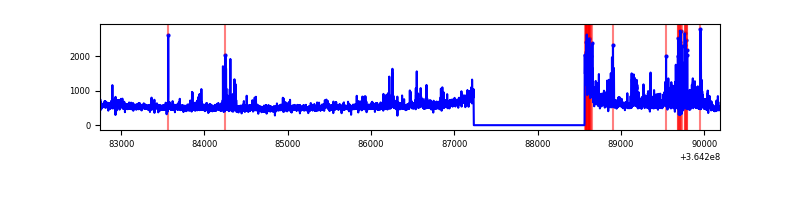

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7441 | 6112 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7441 | 6111 | 4 | 4 | 0.05% | 0.07% |  |
| C | 7440 | 6110 | 35 | 35 | 0.47% | 0.57% |  |
| D | 7440 | 6111 | 6 | 6 | 0.08% | 0.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10890 | 60.15 | 848 | 835 | 167.2 |
| A | 8 | 192 | 10711 | 59.08 | 848 | 835 | 167.2 |
| A | 3 | 137 | 7730 | 41.25 | 848 | 835 | 167.2 |
| B | 6 | 159 | 1605951 | 10333.71 | 824 | 807 | 155.3 |
| B | 0 | 190 | 75345 | 479.87 | 824 | 807 | 155.3 |
| B | 4 | 80 | 32938 | 206.86 | 824 | 807 | 155.3 |
| C | 3 | 233 | 323864 | 1790.43 | 782 | 788 | 180.4 |
| C | 14 | 238 | 139081 | 766.4 | 782 | 788 | 180.4 |
| C | 0 | 10 | 96749 | 531.8 | 782 | 788 | 180.4 |
| D | 8 | 195 | 494332 | 2331.29 | 803 | 789 | 211.7 |
| D | 2 | 250 | 24443 | 111.73 | 803 | 789 | 211.7 |
| D | 2 | 234 | 23658 | 108.02 | 803 | 789 | 211.7 |

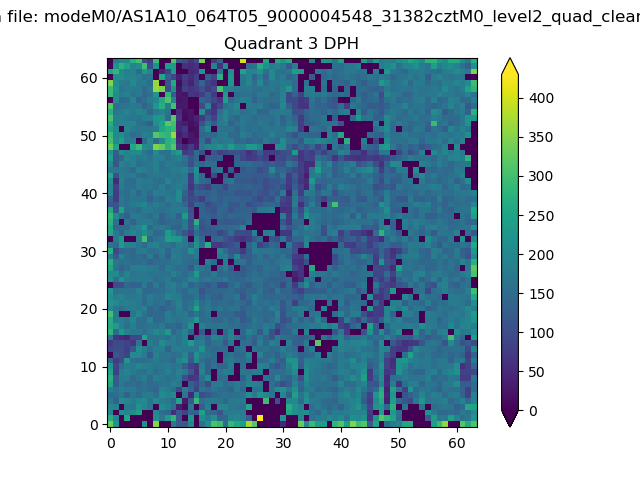

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

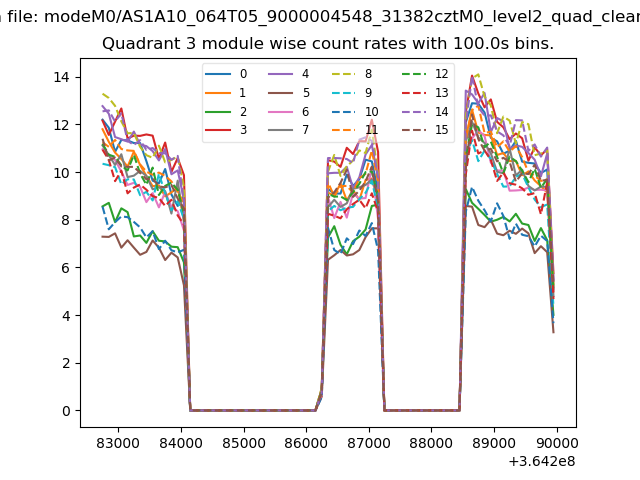

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

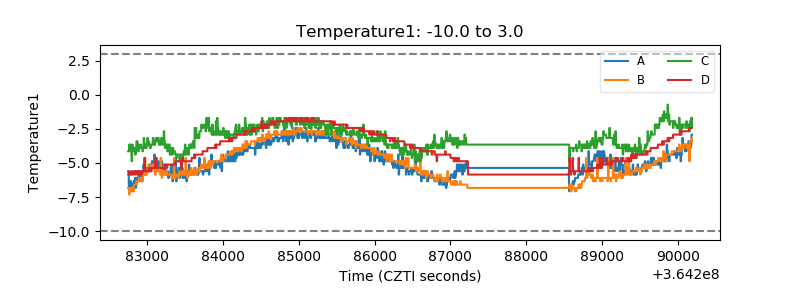

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

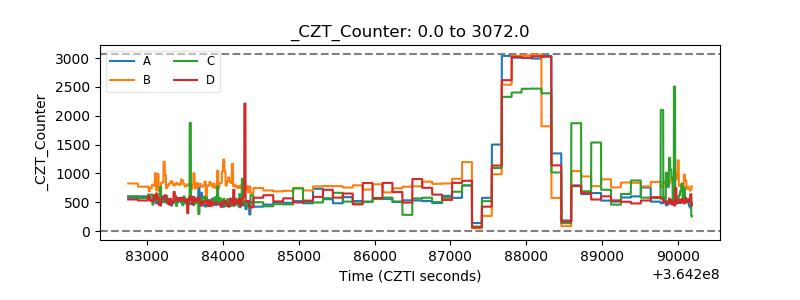

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

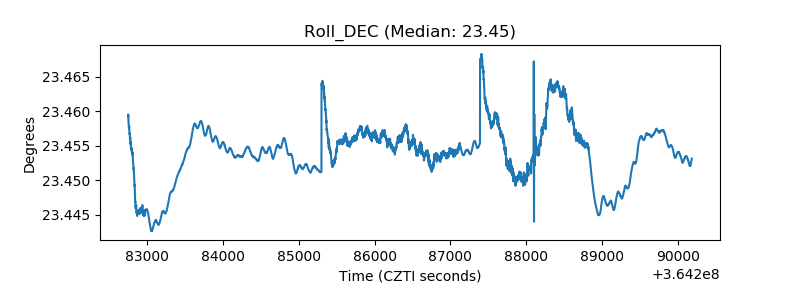

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
