| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_027T01_9000004552_31390cztM0_level2.evt | modeM0/AS1T04_027T01_9000004552_31390cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,005,203,520 | 170,913,600 |
| Size | 958.6 MB | 163.0 MB |
| Events in quadrant A | 5,984,348 | 1,111,911 |
| Events in quadrant B | 9,910,367 | 1,088,850 |
| Events in quadrant C | 6,488,065 | 1,055,998 |
| Events in quadrant D | 7,210,235 | 1,050,034 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 256 | 0 |
| B | 0 | 256 | 0 |
| C | 0 | 256 | 0 |
| D | 0 | 256 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26126 | 2 |
| B | 0 | 38708 | 2 |
| C | 0 | 27412 | 2 |
| D | 0 | 29958 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12586 | 61 | 0.484666% |
| B | 12587 | 256 | 2.033844% |
| C | 12587 | 269 | 2.137126% |
| D | 12587 | 173 | 1.374434% |

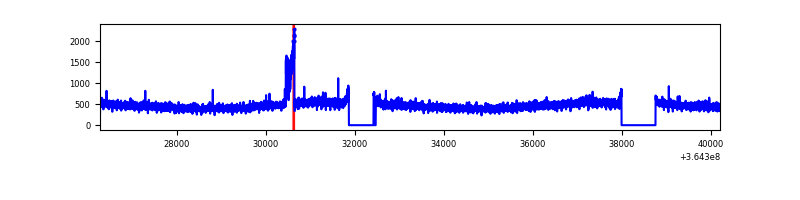

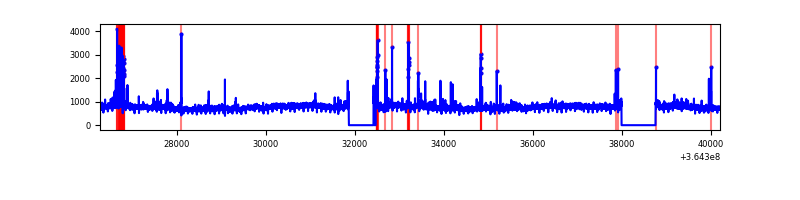

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13936 | 12589 | 5 | 5 | 0.04% | 0.04% |  |
| B | 13937 | 12590 | 86 | 86 | 0.62% | 0.68% |  |
| C | 13937 | 12590 | 23 | 23 | 0.17% | 0.18% |  |
| D | 13937 | 12590 | 140 | 140 | 1.00% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 193919 | 640.53 | 1499 | 1468 | 300.5 |
| A | 13 | 254 | 25907 | 81.34 | 1499 | 1468 | 300.5 |
| A | 3 | 137 | 15459 | 46.56 | 1499 | 1468 | 300.5 |
| B | 6 | 159 | 3599722 | 12789.0 | 1473 | 1436 | 281.4 |
| B | 5 | 172 | 253428 | 895.63 | 1473 | 1436 | 281.4 |
| B | 4 | 80 | 79693 | 278.14 | 1473 | 1436 | 281.4 |
| C | 3 | 233 | 432033 | 1295.5 | 1418 | 1429 | 332.4 |
| C | 14 | 238 | 278723 | 834.26 | 1418 | 1429 | 332.4 |
| C | 0 | 10 | 123481 | 367.2 | 1418 | 1429 | 332.4 |
| D | 8 | 195 | 887607 | 2534.65 | 1431 | 1390 | 349.6 |
| D | 12 | 233 | 442953 | 1262.91 | 1431 | 1390 | 349.6 |
| D | 13 | 249 | 197695 | 561.45 | 1431 | 1390 | 349.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

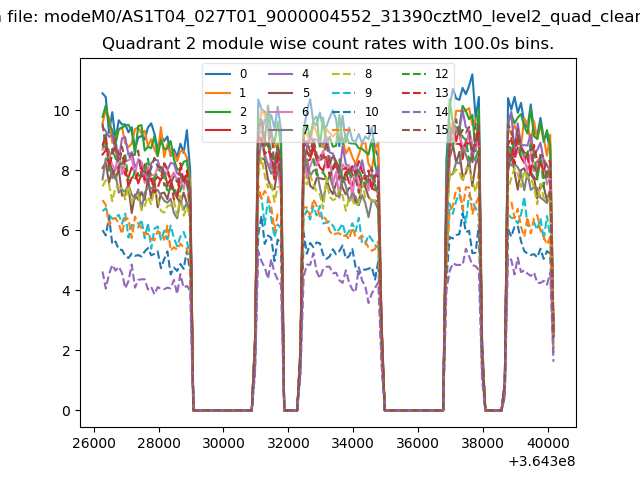

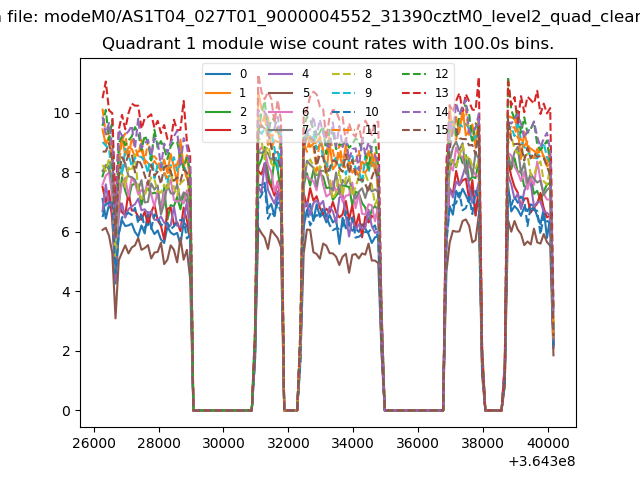

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

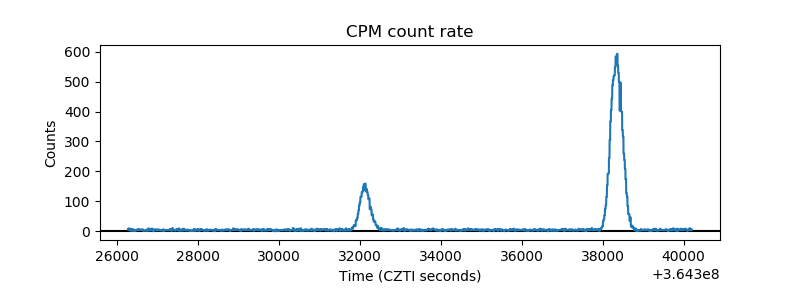

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

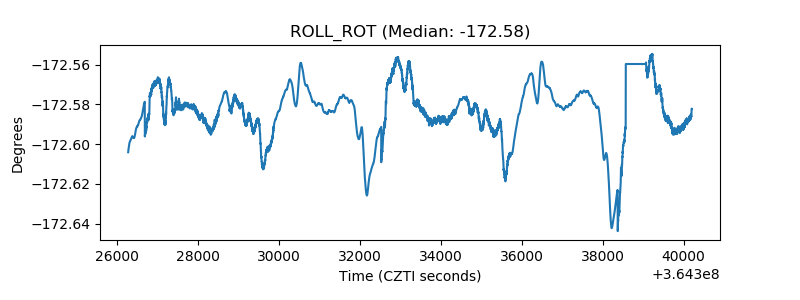

| _ROLL_ROT |  |

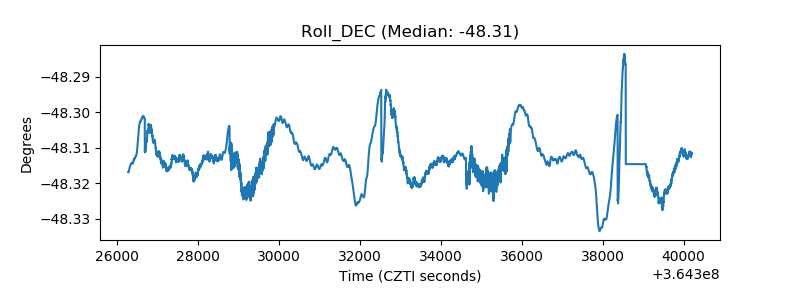

| _Roll_DEC |  |
| _Roll_RA |  |

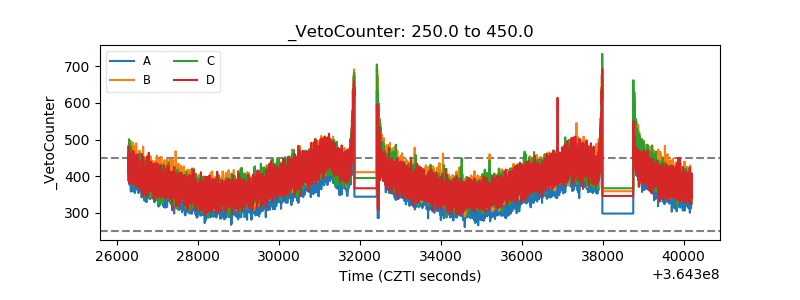

| Veto Counter |  |
