| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_027T01_9000004552_31391cztM0_level2.evt | modeM0/AS1T04_027T01_9000004552_31391cztM0_level2_quad_clean.evt |
| Size (bytes) | 553,806,720 | 102,542,400 |
| Size | 528.2 MB | 97.8 MB |
| Events in quadrant A | 3,291,207 | 674,258 |
| Events in quadrant B | 5,510,505 | 665,476 |
| Events in quadrant C | 3,558,267 | 639,351 |
| Events in quadrant D | 3,936,254 | 637,342 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14312 | 2 |
| B | 0 | 21592 | 2 |
| C | 0 | 14995 | 2 |
| D | 0 | 16402 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7030 | 24 | 0.341394% |
| B | 7030 | 122 | 1.735420% |
| C | 7031 | 175 | 2.488977% |
| D | 7030 | 66 | 0.938834% |

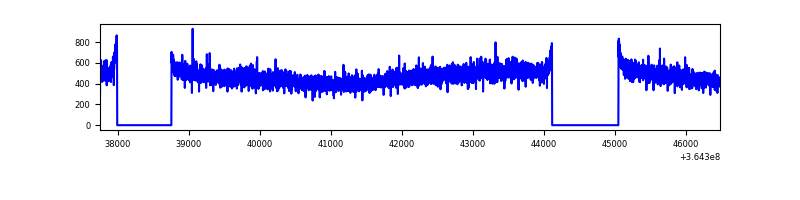

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8730 | 7032 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8730 | 7032 | 16 | 16 | 0.18% | 0.23% |  |
| C | 8731 | 7033 | 47 | 47 | 0.54% | 0.67% |  |
| D | 8730 | 7032 | 48 | 48 | 0.55% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 26670 | 151.28 | 845 | 828 | 170.8 |
| A | 13 | 254 | 14938 | 82.6 | 845 | 828 | 170.8 |
| A | 3 | 137 | 8602 | 45.51 | 845 | 828 | 170.8 |
| B | 6 | 159 | 1975426 | 12261.08 | 837 | 816 | 161.0 |
| B | 4 | 80 | 113058 | 696.95 | 837 | 816 | 161.0 |
| B | 0 | 190 | 52716 | 322.27 | 837 | 816 | 161.0 |
| C | 0 | 10 | 162398 | 859.12 | 799 | 804 | 188.1 |
| C | 14 | 238 | 149747 | 791.86 | 799 | 804 | 188.1 |
| C | 3 | 233 | 49162 | 257.1 | 799 | 804 | 188.1 |
| D | 8 | 195 | 379213 | 1826.07 | 801 | 785 | 207.2 |
| D | 10 | 203 | 193515 | 930.0 | 801 | 785 | 207.2 |
| D | 12 | 233 | 112918 | 541.09 | 801 | 785 | 207.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

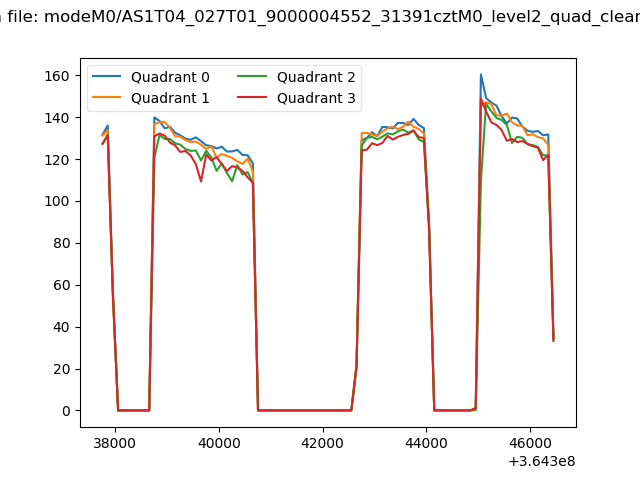

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

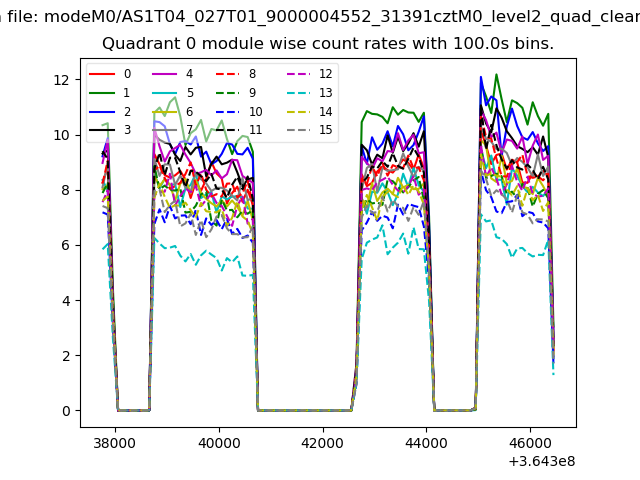

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

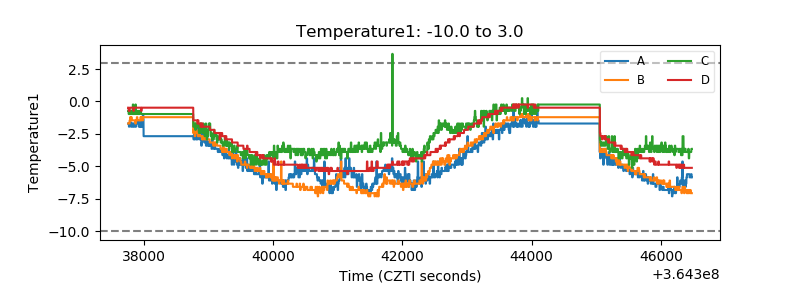

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

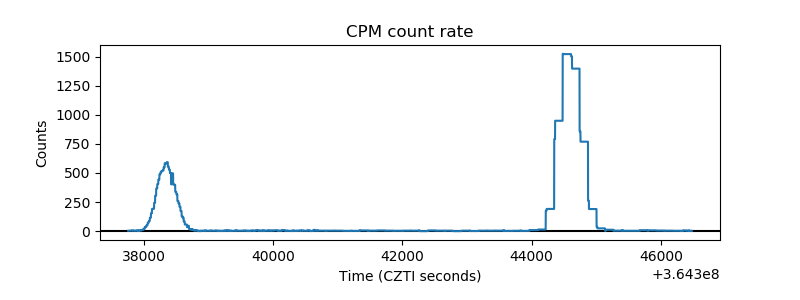

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

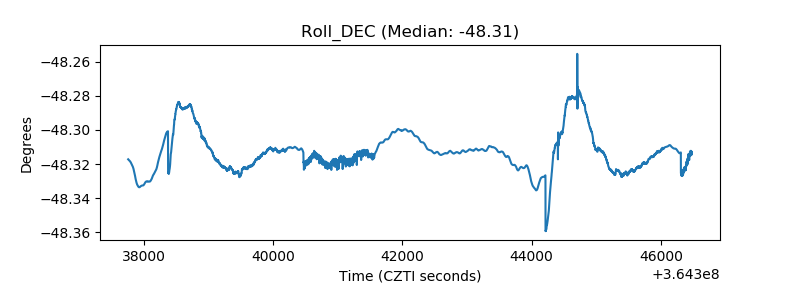

| _Roll_DEC |  |
| _Roll_RA |  |

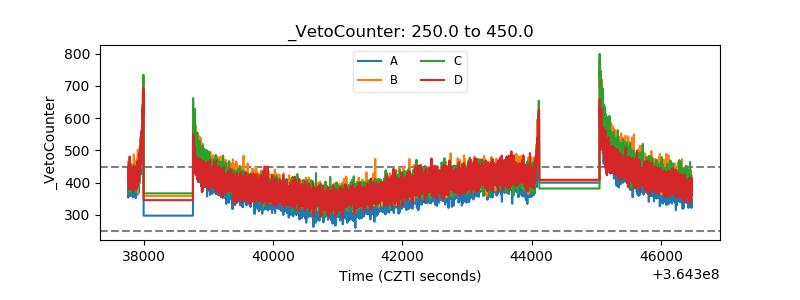

| Veto Counter |  |
