| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_027T01_9000004552_31392cztM0_level2.evt | modeM0/AS1T04_027T01_9000004552_31392cztM0_level2_quad_clean.evt |
| Size (bytes) | 552,104,640 | 94,063,680 |
| Size | 526.5 MB | 89.7 MB |
| Events in quadrant A | 3,217,418 | 611,714 |
| Events in quadrant B | 5,505,917 | 605,226 |
| Events in quadrant C | 3,693,628 | 580,176 |
| Events in quadrant D | 3,842,580 | 577,142 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 2 |
| B | 0 | 21253 | 2 |
| C | 0 | 15057 | 2 |
| D | 0 | 15961 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6805 | 13 | 0.191036% |
| B | 6805 | 153 | 2.248347% |
| C | 6805 | 213 | 3.130051% |
| D | 6805 | 43 | 0.631888% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7900 | 6806 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7900 | 6806 | 40 | 40 | 0.51% | 0.59% |  |
| C | 7900 | 6806 | 60 | 60 | 0.76% | 0.88% |  |
| D | 7900 | 6805 | 24 | 24 | 0.30% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14839 | 83.97 | 832 | 817 | 167.0 |
| A | 3 | 137 | 8218 | 44.32 | 832 | 817 | 167.0 |
| A | 0 | 226 | 6883 | 36.33 | 832 | 817 | 167.0 |
| B | 6 | 159 | 1923499 | 12212.84 | 827 | 805 | 157.4 |
| B | 12 | 18 | 119608 | 754.63 | 827 | 805 | 157.4 |
| B | 4 | 80 | 91505 | 576.12 | 827 | 805 | 157.4 |
| C | 0 | 10 | 284396 | 1541.93 | 789 | 795 | 183.9 |
| C | 14 | 238 | 154133 | 833.7 | 789 | 795 | 183.9 |
| C | 3 | 233 | 80429 | 432.97 | 789 | 795 | 183.9 |
| D | 8 | 195 | 360702 | 1761.2 | 792 | 778 | 204.4 |
| D | 10 | 203 | 201326 | 981.33 | 792 | 778 | 204.4 |
| D | 13 | 249 | 101474 | 492.73 | 792 | 778 | 204.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

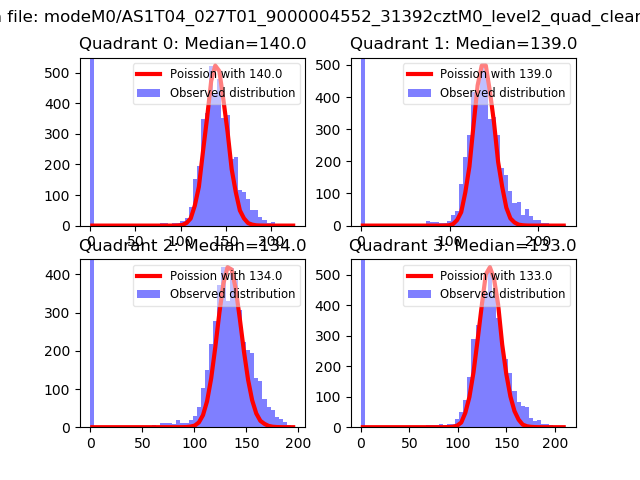

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

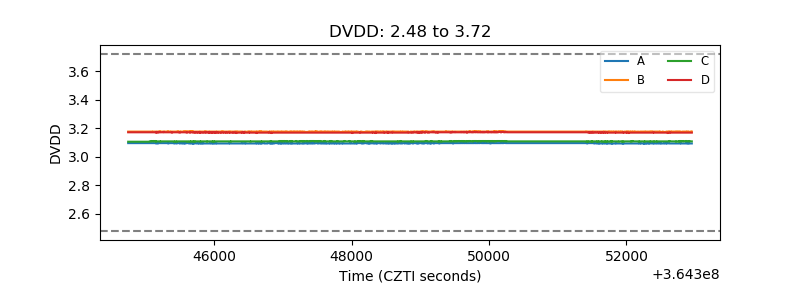

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

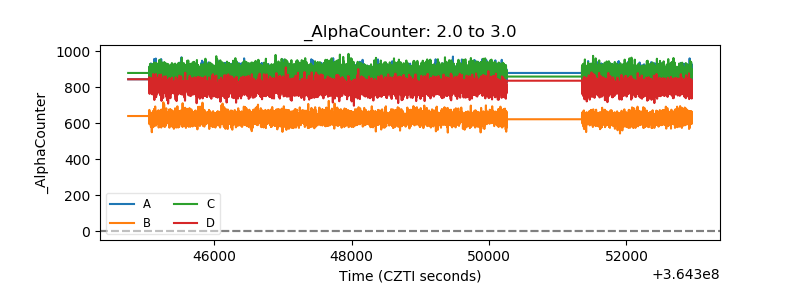

| Alpha Counter |  |
| _CPM_Rate |  |

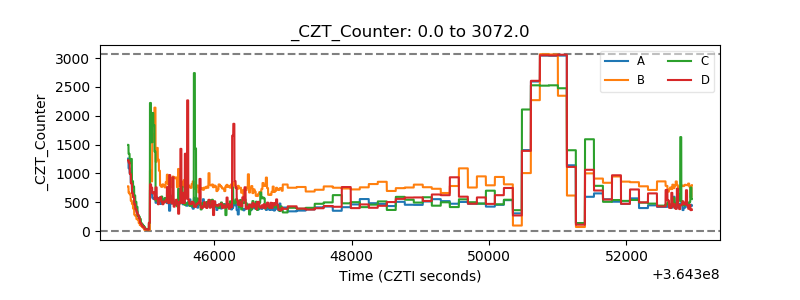

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

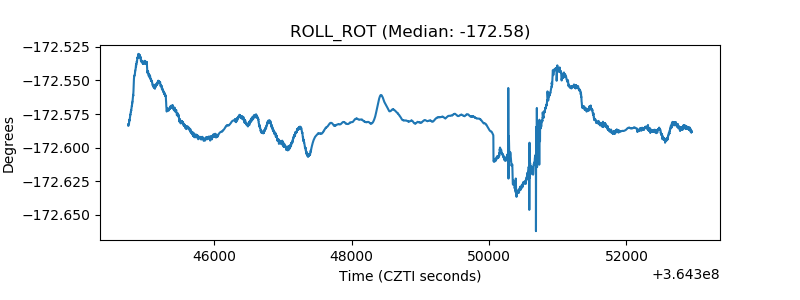

| _ROLL_ROT |  |
| _Roll_DEC |  |

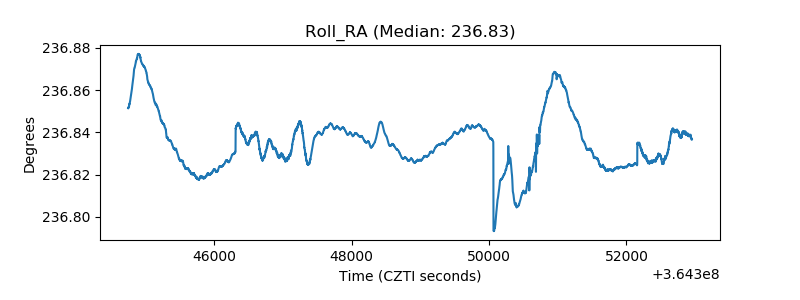

| _Roll_RA |  |
| Veto Counter |  |
