| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_027T01_9000004552_31395cztM0_level2.evt | modeM0/AS1T04_027T01_9000004552_31395cztM0_level2_quad_clean.evt |
| Size (bytes) | 527,849,280 | 81,158,400 |
| Size | 503.4 MB | 77.4 MB |
| Events in quadrant A | 3,233,203 | 517,182 |
| Events in quadrant B | 5,036,324 | 518,002 |
| Events in quadrant C | 3,590,235 | 500,919 |
| Events in quadrant D | 3,714,416 | 496,797 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 2 |
| B | 0 | 124 | 2 |
| C | 0 | 124 | 2 |
| D | 0 | 124 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13300 | 101 |
| B | 0 | 19087 | 166 |
| C | 0 | 14505 | 118 |
| D | 0 | 14920 | 131 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6088 | 35 | 0.574901% |
| B | 6084 | 100 | 1.643655% |
| C | 6089 | 237 | 3.892265% |
| D | 6085 | 61 | 1.002465% |

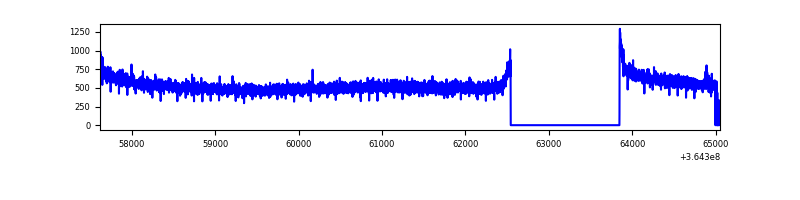

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

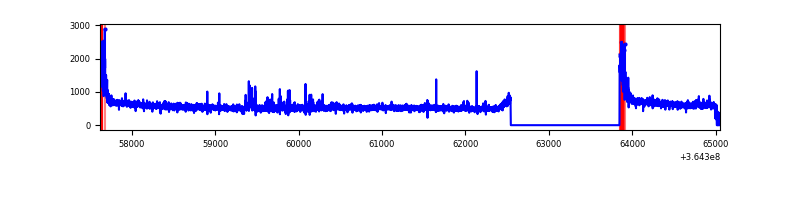

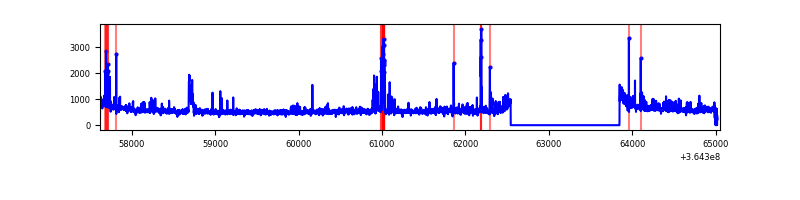

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7429 | 6100 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7396 | 6092 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7435 | 6098 | 39 | 39 | 0.52% | 0.64% |  |
| D | 7404 | 6096 | 29 | 29 | 0.39% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12722 | 72.25 | 838 | 824 | 164.7 |
| A | 3 | 137 | 7746 | 42.03 | 838 | 824 | 164.7 |
| A | 0 | 226 | 6988 | 37.43 | 838 | 824 | 164.7 |
| B | 6 | 159 | 1651057 | 10740.13 | 835 | 817 | 153.7 |
| B | 4 | 80 | 52314 | 335.15 | 835 | 817 | 153.7 |
| B | 0 | 190 | 37236 | 237.02 | 835 | 817 | 153.7 |
| C | 0 | 10 | 177228 | 951.66 | 812 | 820 | 185.4 |
| C | 14 | 238 | 161577 | 867.23 | 812 | 820 | 185.4 |
| C | 14 | 254 | 37646 | 198.66 | 812 | 820 | 185.4 |
| D | 10 | 203 | 208702 | 1024.31 | 815 | 801 | 203.0 |
| D | 8 | 195 | 202762 | 995.04 | 815 | 801 | 203.0 |
| D | 2 | 250 | 130444 | 638.74 | 815 | 801 | 203.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

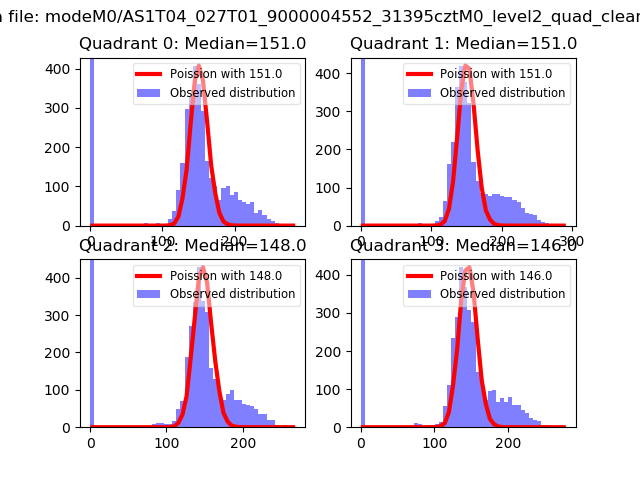

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

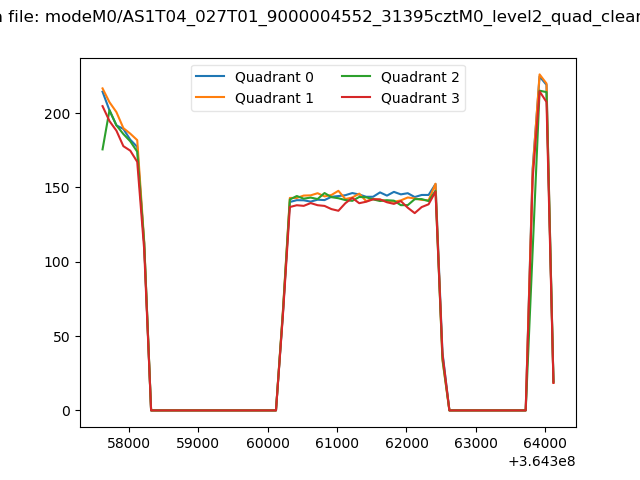

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

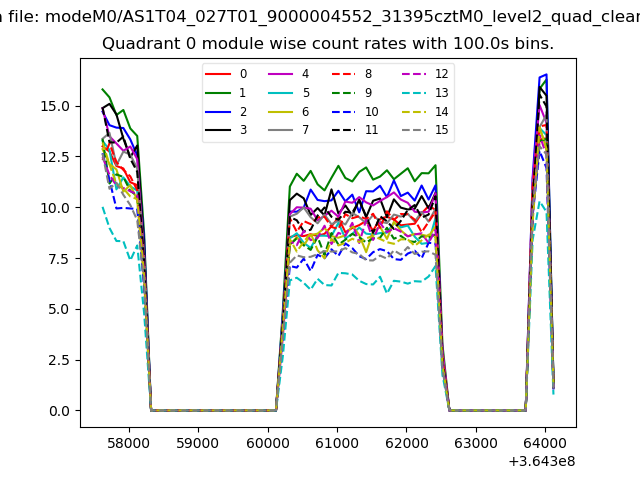

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

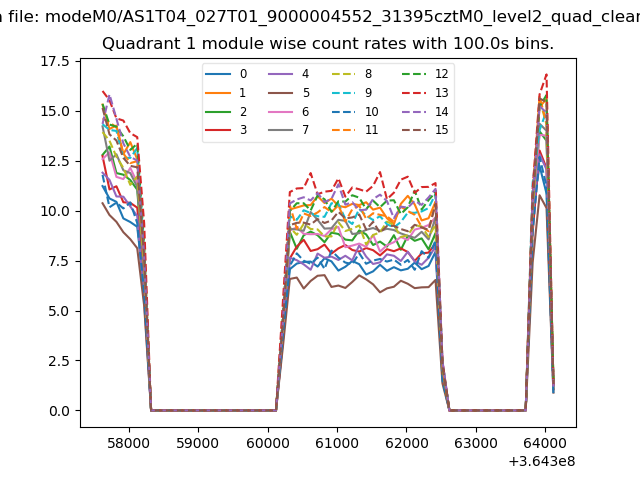

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

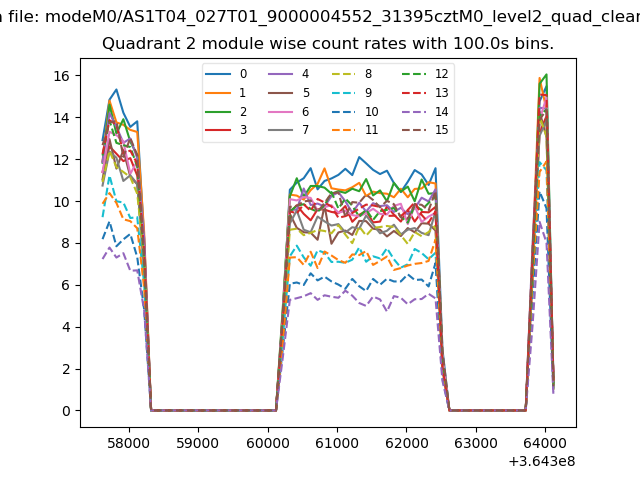

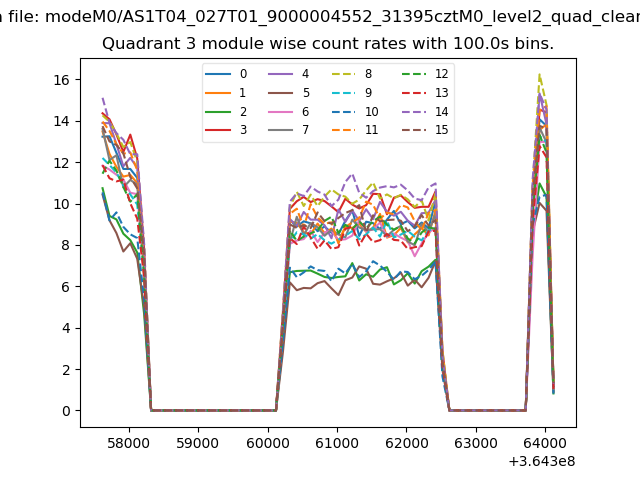

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

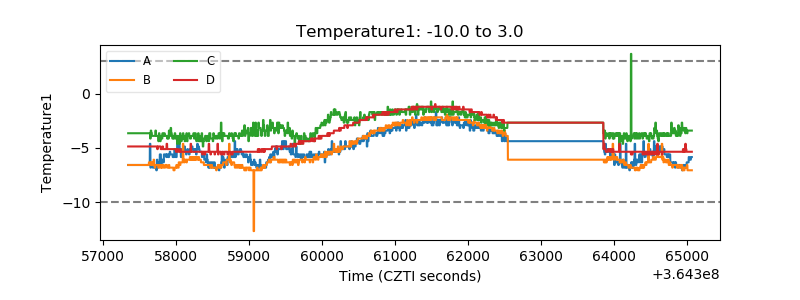

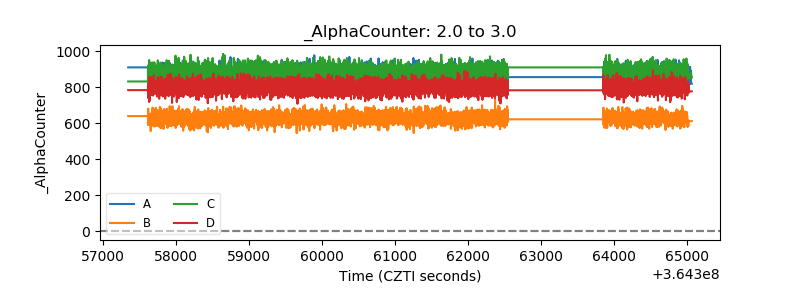

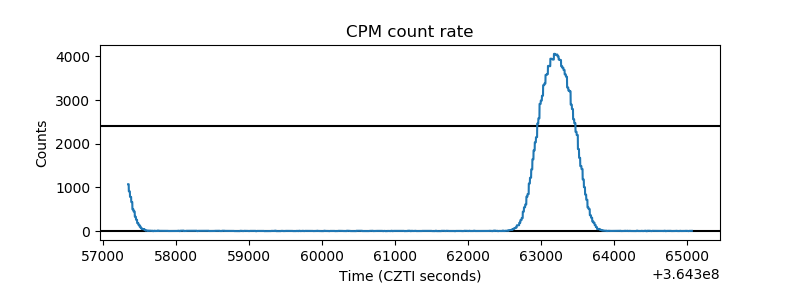

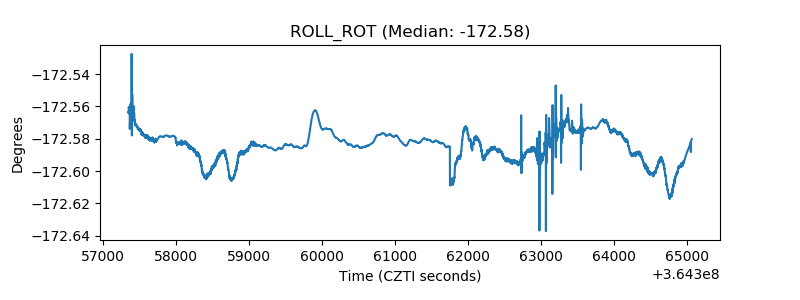

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

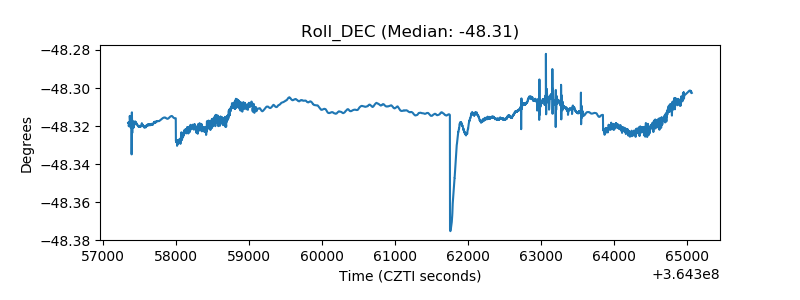

| _Roll_DEC |  |

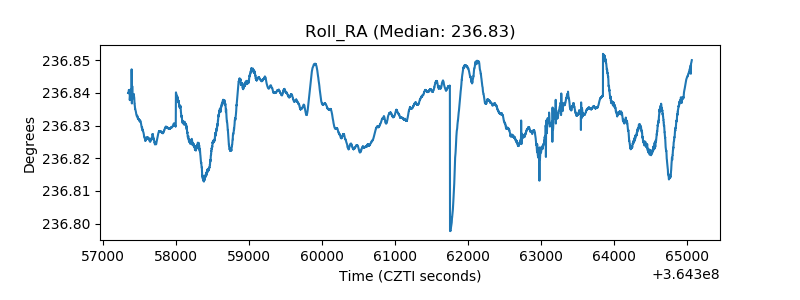

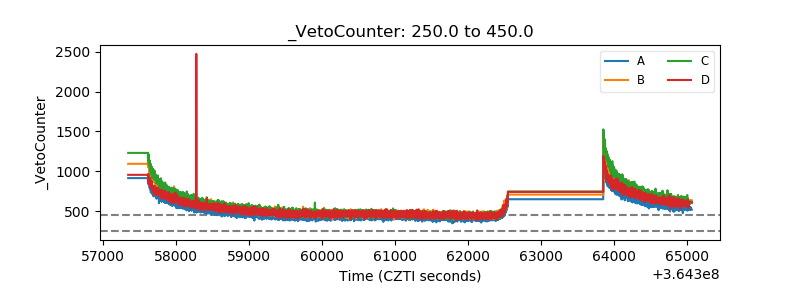

| _Roll_RA |  |
| Veto Counter |  |
