| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_027T01_9000004552_31396cztM0_level2.evt | modeM0/AS1T04_027T01_9000004552_31396cztM0_level2_quad_clean.evt |
| Size (bytes) | 366,701,760 | 55,797,120 |
| Size | 349.7 MB | 53.2 MB |
| Events in quadrant A | 2,261,737 | 352,391 |
| Events in quadrant B | 3,473,468 | 355,699 |
| Events in quadrant C | 2,463,190 | 345,524 |
| Events in quadrant D | 2,622,305 | 340,498 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 82 | 0 |
| B | 0 | 82 | 0 |
| C | 0 | 82 | 0 |
| D | 0 | 82 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9054 | 1 |
| B | 0 | 13018 | 1 |
| C | 0 | 9813 | 1 |
| D | 0 | 10408 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4197 | 22 | 0.524184% |
| B | 4197 | 50 | 1.191327% |
| C | 4197 | 113 | 2.692399% |
| D | 4197 | 36 | 0.857756% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4197 | 4197 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4197 | 4197 | 1 | 1 | 0.02% | 0.02% |  |
| C | 4197 | 4197 | 21 | 21 | 0.50% | 0.50% |  |
| D | 4197 | 4197 | 24 | 24 | 0.57% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 8256 | 66.05 | 586 | 579 | 116.2 |
| A | 3 | 137 | 5163 | 39.44 | 586 | 579 | 116.2 |
| A | 0 | 226 | 5065 | 38.59 | 586 | 579 | 116.2 |
| B | 6 | 159 | 1123713 | 10448.15 | 580 | 568 | 107.5 |
| B | 4 | 80 | 36876 | 337.76 | 580 | 568 | 107.5 |
| B | 0 | 190 | 36215 | 331.61 | 580 | 568 | 107.5 |
| C | 14 | 238 | 103344 | 786.34 | 569 | 574 | 130.7 |
| C | 0 | 10 | 90232 | 686.01 | 569 | 574 | 130.7 |
| C | 3 | 233 | 26840 | 200.97 | 569 | 574 | 130.7 |
| D | 8 | 195 | 221351 | 1621.75 | 575 | 563 | 136.1 |
| D | 10 | 203 | 117034 | 855.51 | 575 | 563 | 136.1 |
| D | 2 | 250 | 57135 | 415.54 | 575 | 563 | 136.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

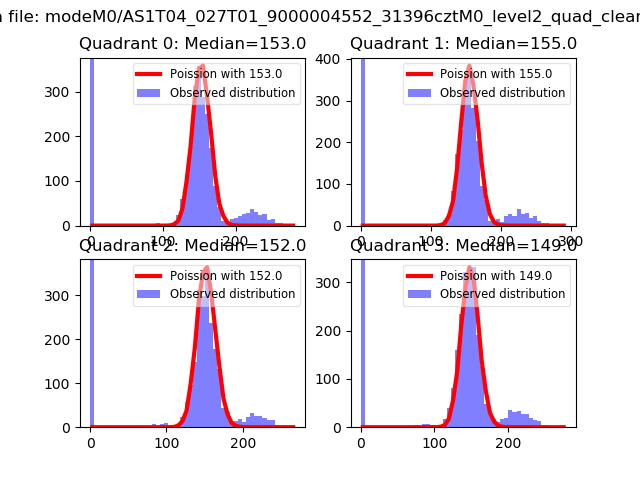

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

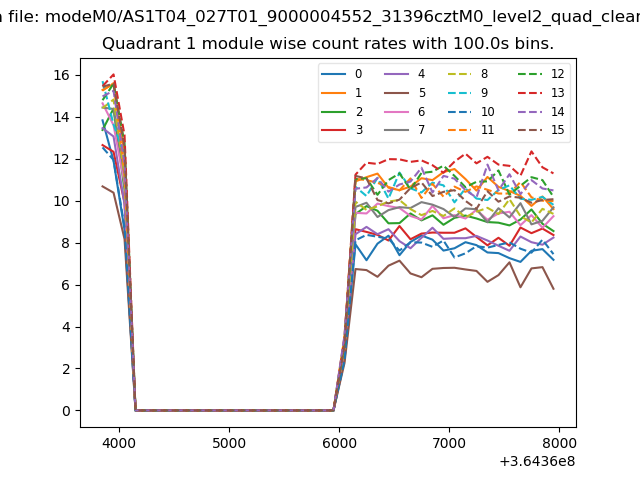

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

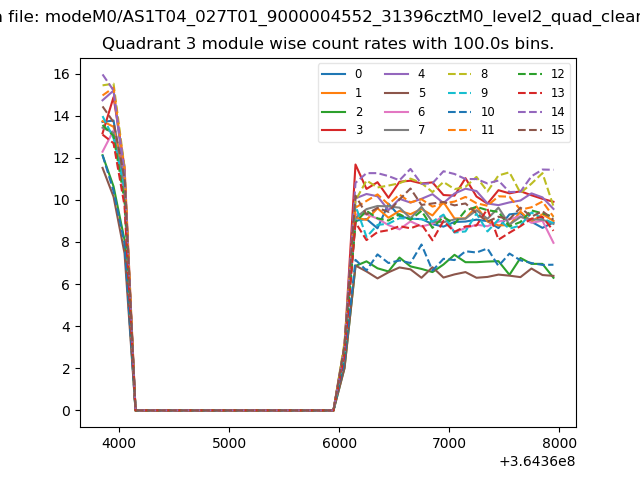

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

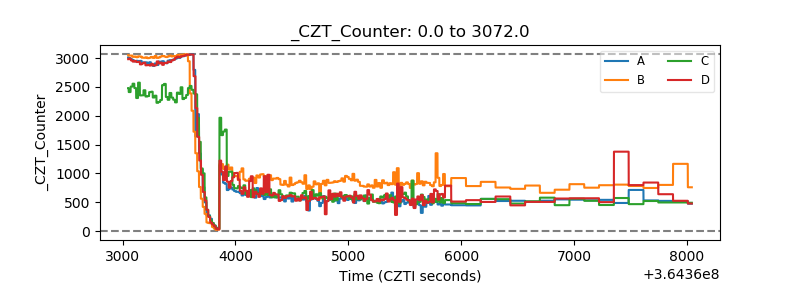

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

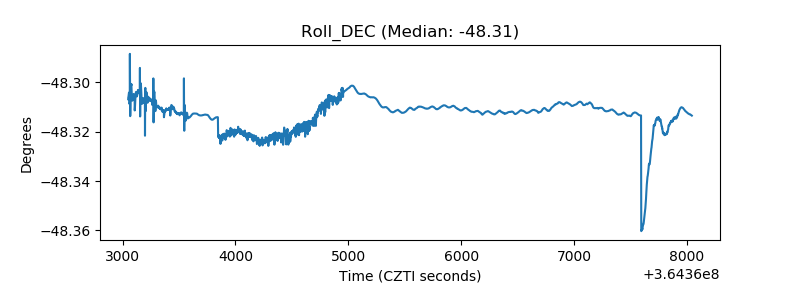

| _Roll_DEC |  |

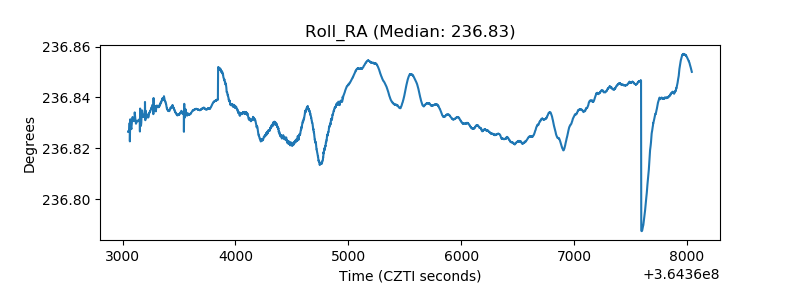

| _Roll_RA |  |
| Veto Counter |  |
