| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T26_9000004554_31398cztM0_level2.evt | modeM0/AS1A10_094T26_9000004554_31398cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,837,120 | 121,579,200 |
| Size | 418.5 MB | 115.9 MB |
| Events in quadrant A | 2,731,851 | 838,212 |
| Events in quadrant B | 4,167,316 | 833,074 |
| Events in quadrant C | 2,904,751 | 825,592 |
| Events in quadrant D | 3,127,273 | 815,135 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11143 | 1 |
| B | 0 | 16079 | 1 |
| C | 0 | 11836 | 1 |
| D | 0 | 12556 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5281 | 17 | 0.321909% |
| B | 5282 | 69 | 1.306323% |
| C | 5282 | 128 | 2.423324% |
| D | 5282 | 35 | 0.662628% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6661 | 5282 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6662 | 5283 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6662 | 5283 | 4 | 4 | 0.06% | 0.08% |  |
| D | 6662 | 5283 | 8 | 8 | 0.12% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10069 | 66.96 | 708 | 696 | 140.0 |
| A | 3 | 137 | 6363 | 40.49 | 708 | 696 | 140.0 |
| A | 0 | 226 | 6035 | 38.14 | 708 | 696 | 140.0 |
| B | 6 | 159 | 1386149 | 10891.4 | 690 | 674 | 127.2 |
| B | 4 | 80 | 42613 | 329.69 | 690 | 674 | 127.2 |
| B | 0 | 190 | 28760 | 220.79 | 690 | 674 | 127.2 |
| C | 14 | 238 | 128297 | 812.31 | 688 | 694 | 157.1 |
| C | 3 | 233 | 26602 | 164.93 | 688 | 694 | 157.1 |
| C | 0 | 10 | 23491 | 145.12 | 688 | 694 | 157.1 |
| D | 8 | 195 | 242918 | 1469.49 | 701 | 684 | 164.8 |
| D | 10 | 203 | 143605 | 867.02 | 701 | 684 | 164.8 |
| D | 2 | 250 | 59726 | 358.17 | 701 | 684 | 164.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

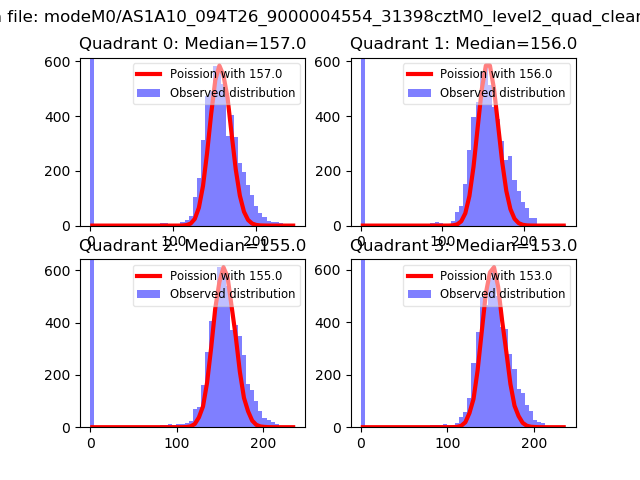

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

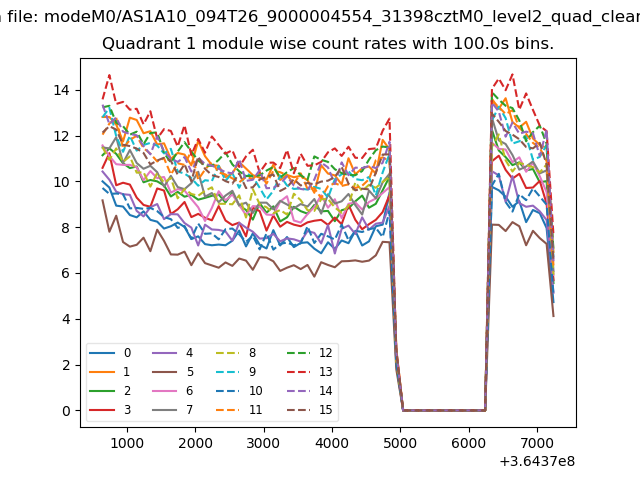

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

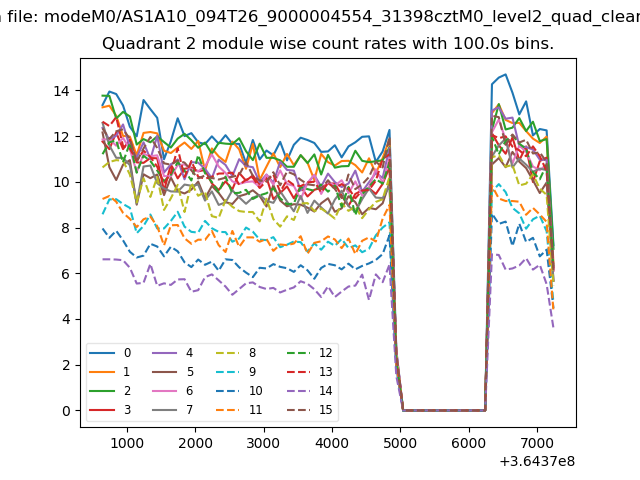

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

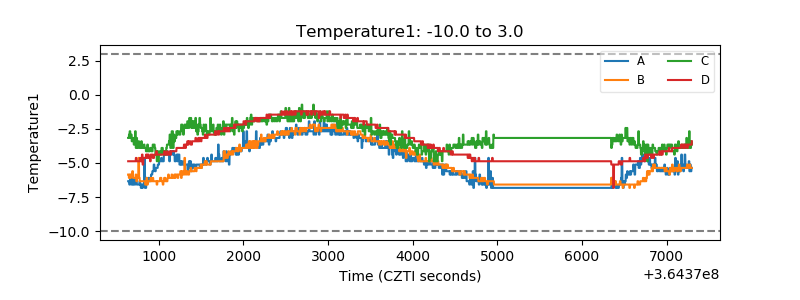

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

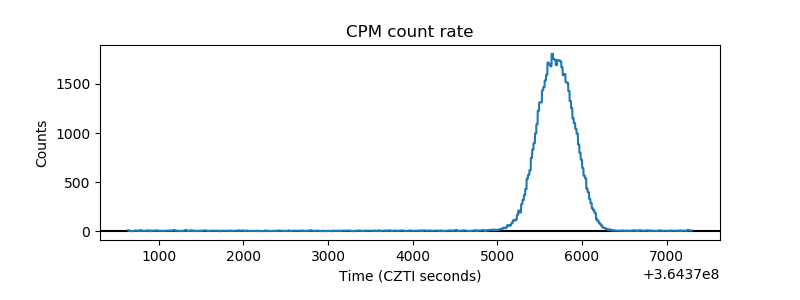

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
