| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T26_9000004558_31409cztM0_level2.evt | modeM0/AS1A10_094T26_9000004558_31409cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,444,160 | 140,192,640 |
| Size | 497.3 MB | 133.7 MB |
| Events in quadrant A | 3,212,832 | 960,825 |
| Events in quadrant B | 4,921,618 | 969,378 |
| Events in quadrant C | 3,466,945 | 954,742 |
| Events in quadrant D | 3,764,636 | 922,668 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13434 | 2 |
| B | 0 | 19134 | 2 |
| C | 0 | 14326 | 2 |
| D | 0 | 15281 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6287 | 20 | 0.318117% |
| B | 6287 | 70 | 1.113409% |
| C | 6287 | 101 | 1.606490% |
| D | 6287 | 67 | 1.065691% |

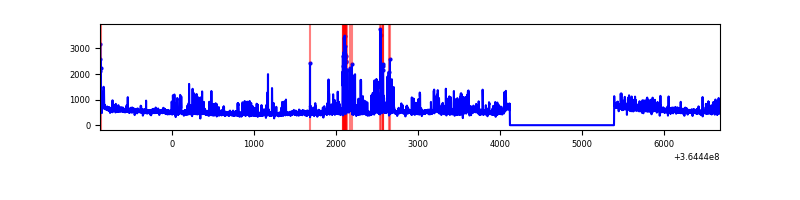

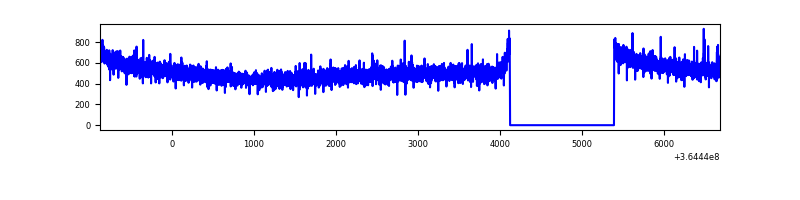

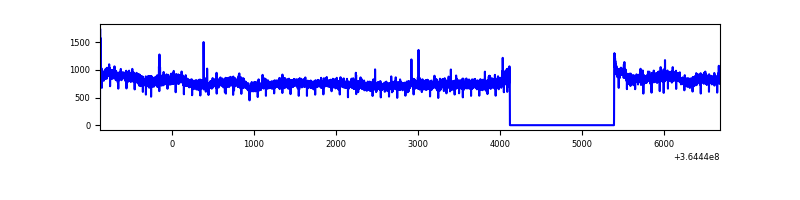

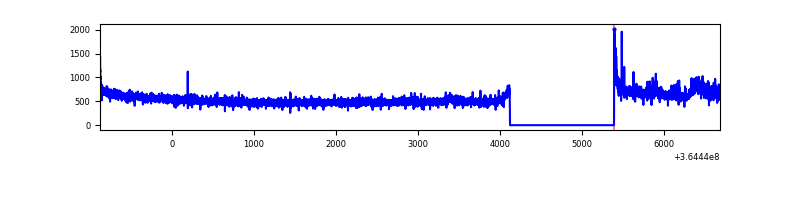

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6288 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7557 | 6288 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7557 | 6288 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7557 | 6288 | 39 | 39 | 0.52% | 0.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 25182 | 150.52 | 825 | 810 | 161.9 |
| A | 13 | 254 | 10339 | 58.85 | 825 | 810 | 161.9 |
| A | 12 | 194 | 10028 | 56.93 | 825 | 810 | 161.9 |
| B | 6 | 159 | 1679070 | 11106.81 | 818 | 798 | 151.1 |
| B | 12 | 111 | 18062 | 114.25 | 818 | 798 | 151.1 |
| B | 11 | 111 | 16597 | 104.56 | 818 | 798 | 151.1 |
| C | 14 | 238 | 135417 | 718.28 | 815 | 825 | 187.4 |
| C | 3 | 233 | 130018 | 689.47 | 815 | 825 | 187.4 |
| C | 2 | 114 | 14597 | 73.5 | 815 | 825 | 187.4 |
| D | 8 | 195 | 341711 | 1813.28 | 812 | 794 | 188.0 |
| D | 12 | 218 | 279683 | 1483.37 | 812 | 794 | 188.0 |
| D | 2 | 250 | 44231 | 231.03 | 812 | 794 | 188.0 |

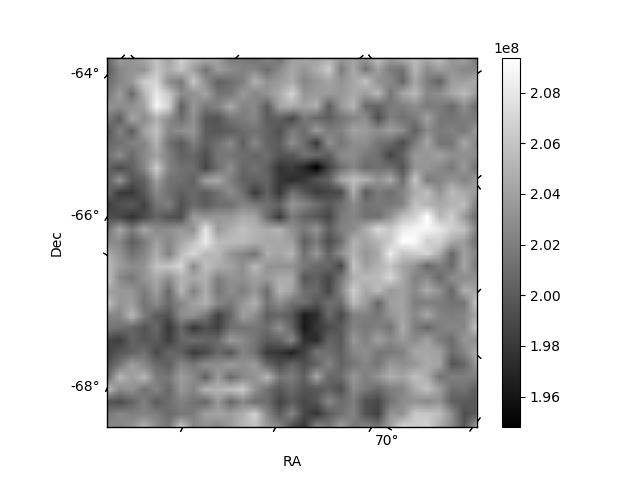

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

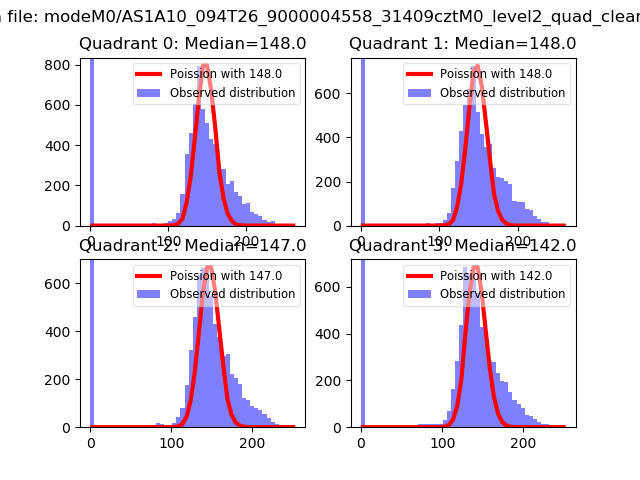

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

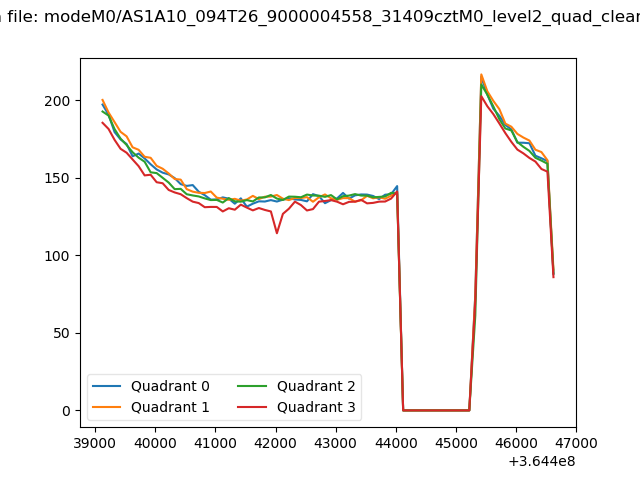

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

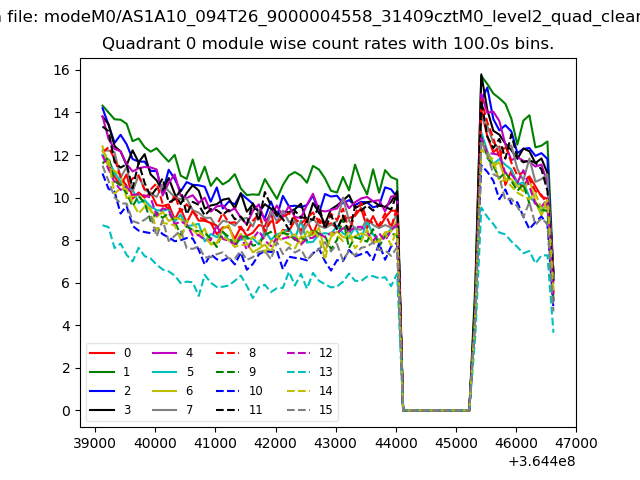

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

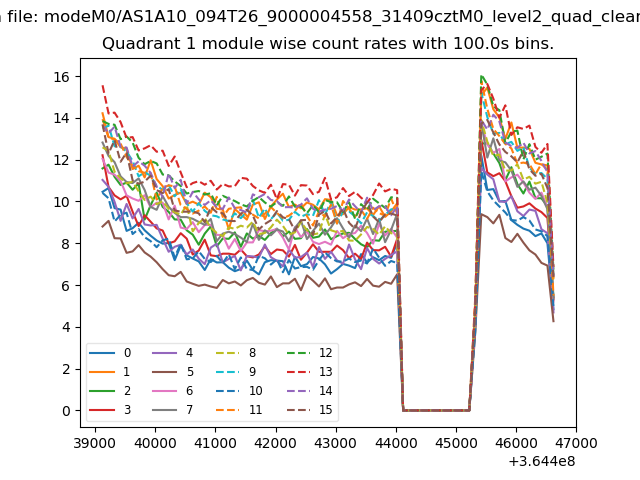

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

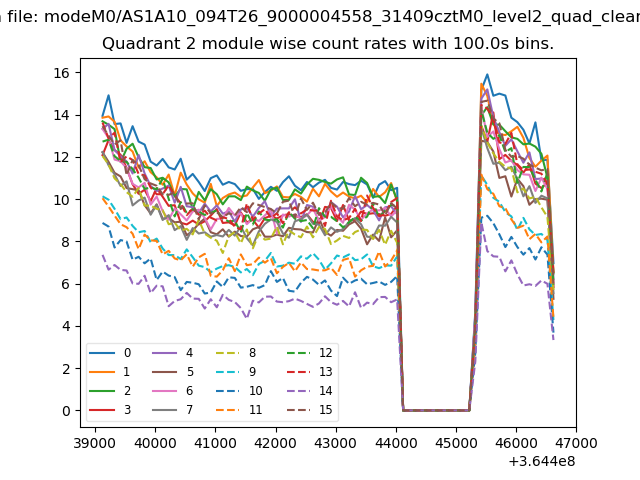

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

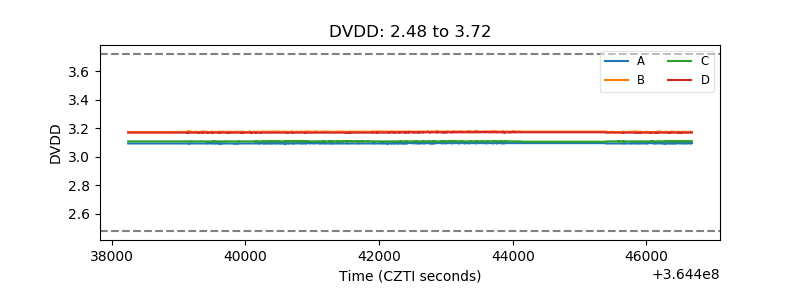

| D_VDD |  |

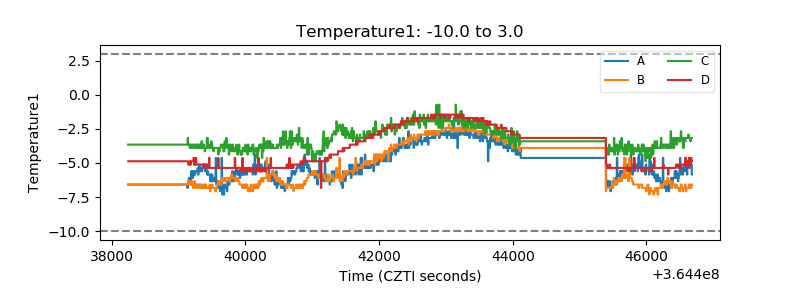

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

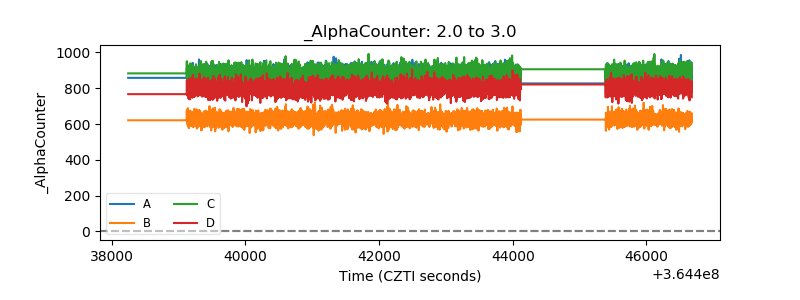

| Alpha Counter |  |

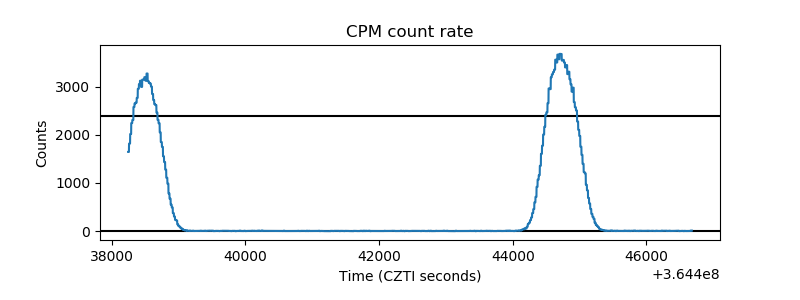

| _CPM_Rate |  |

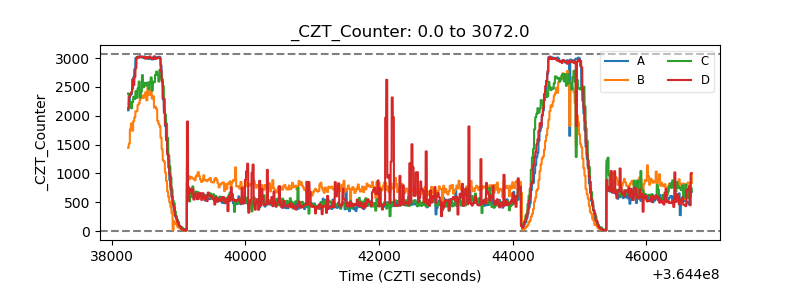

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

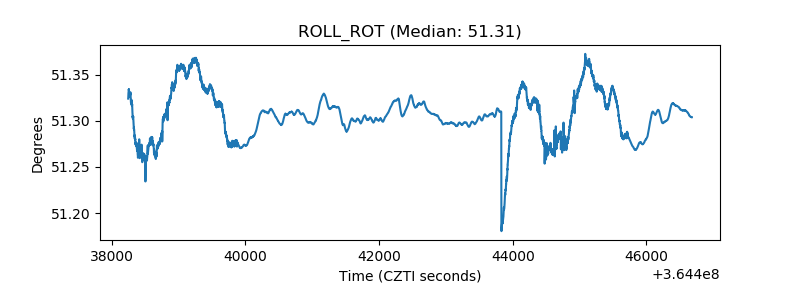

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

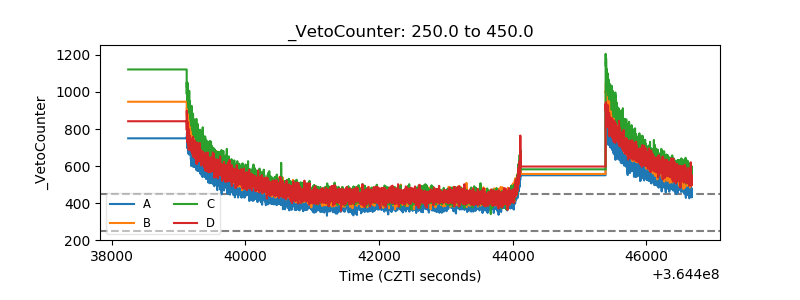

| Veto Counter |  |
