| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T26_9000004558_31411cztM0_level2.evt | modeM0/AS1A10_094T26_9000004558_31411cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,400,320 | 128,387,520 |
| Size | 455.3 MB | 122.4 MB |
| Events in quadrant A | 2,898,166 | 883,016 |
| Events in quadrant B | 4,372,790 | 884,043 |
| Events in quadrant C | 3,246,016 | 880,833 |
| Events in quadrant D | 3,566,839 | 854,508 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11977 | 136 |
| B | 0 | 16999 | 176 |
| C | 0 | 13367 | 138 |
| D | 0 | 14173 | 140 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 115 | 1 |
| B | 0 | 115 | 1 |
| C | 0 | 116 | 2 |
| D | 0 | 116 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5516 | 45 | 0.815809% |
| B | 5518 | 112 | 2.029721% |
| C | 5519 | 167 | 3.025910% |
| D | 5515 | 110 | 1.994560% |

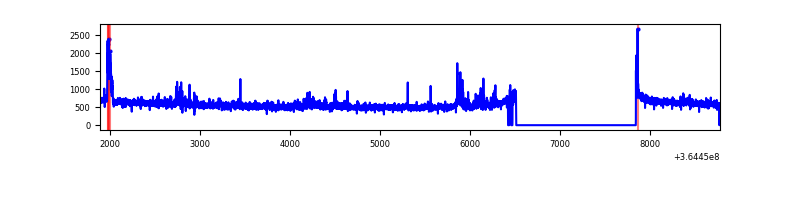

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6885 | 5525 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6881 | 5523 | 1 | 1 | 0.01% | 0.02% |  |
| C | 6883 | 5522 | 5 | 5 | 0.07% | 0.09% |  |
| D | 6885 | 5524 | 39 | 39 | 0.57% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 16 | 11982 | 76.93 | 748 | 737 | 146.2 |
| A | 13 | 254 | 9357 | 58.97 | 748 | 737 | 146.2 |
| A | 12 | 194 | 7127 | 43.71 | 748 | 737 | 146.2 |
| B | 6 | 159 | 1423953 | 10562.44 | 732 | 715 | 134.7 |
| B | 4 | 80 | 55622 | 407.49 | 732 | 715 | 134.7 |
| B | 12 | 111 | 15752 | 111.6 | 732 | 715 | 134.7 |
| C | 3 | 233 | 158255 | 935.35 | 733 | 738 | 168.4 |
| C | 14 | 238 | 137351 | 811.22 | 733 | 738 | 168.4 |
| C | 10 | 22 | 50792 | 297.22 | 733 | 738 | 168.4 |
| D | 8 | 195 | 422885 | 2410.46 | 739 | 721 | 175.1 |
| D | 12 | 218 | 240236 | 1367.58 | 739 | 721 | 175.1 |
| D | 12 | 227 | 59084 | 333.24 | 739 | 721 | 175.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

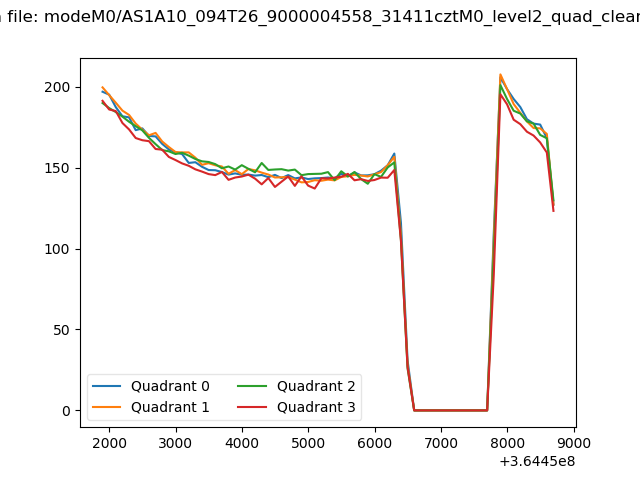

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

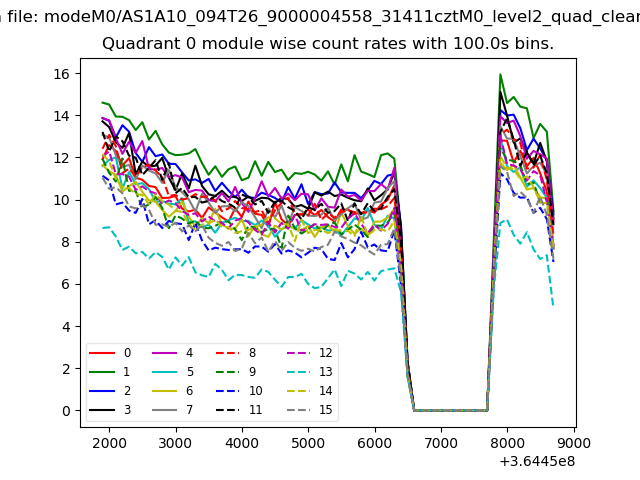

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

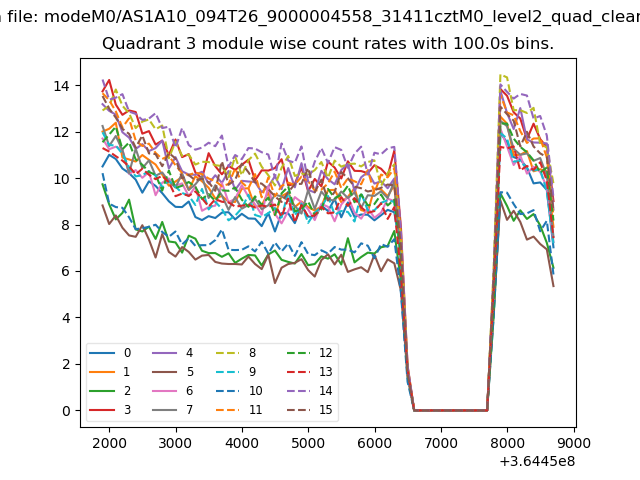

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

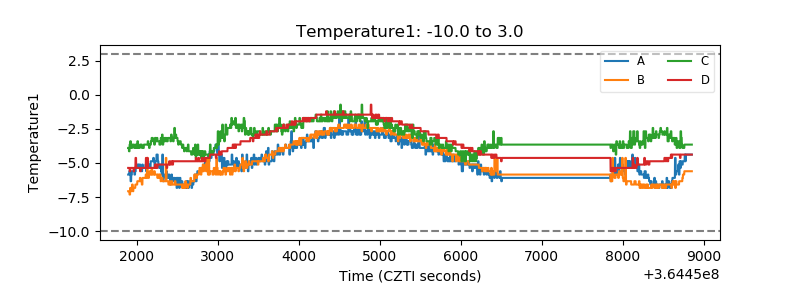

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

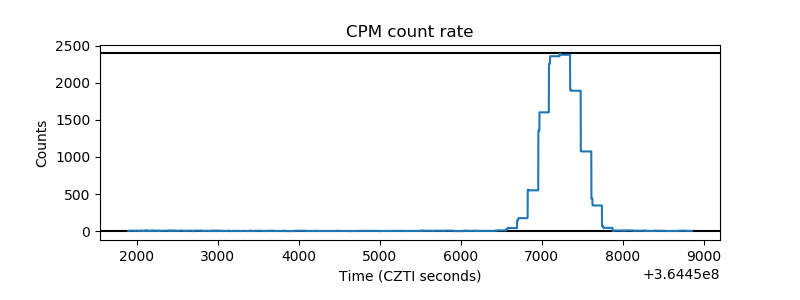

| _CPM_Rate |  |

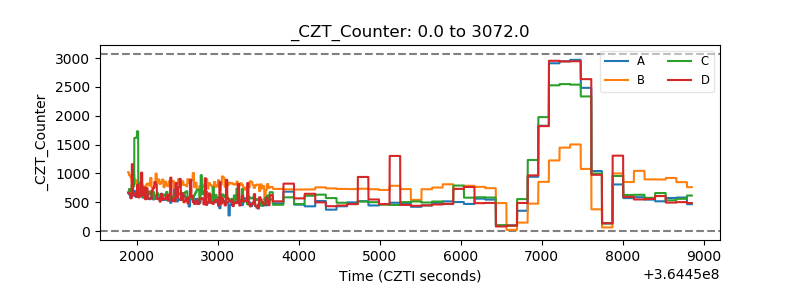

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

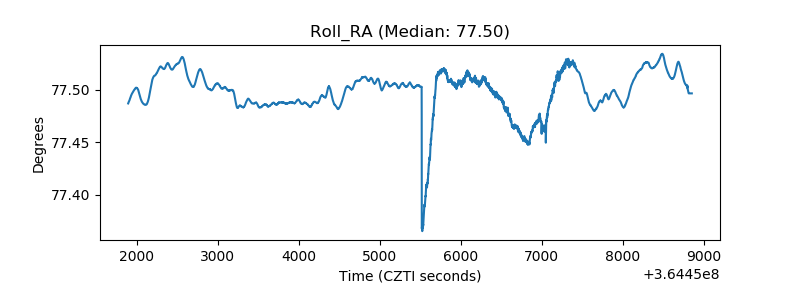

| _Roll_RA |  |
| Veto Counter |  |
