| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T27_9000004562_31419cztM0_level2.evt | modeM0/AS1A10_094T27_9000004562_31419cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,909,440 | 130,622,400 |
| Size | 559.7 MB | 124.6 MB |
| Events in quadrant A | 3,257,314 | 894,145 |
| Events in quadrant B | 5,279,802 | 884,044 |
| Events in quadrant C | 4,587,398 | 832,761 |
| Events in quadrant D | 4,176,759 | 858,317 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14232 | 1 |
| B | 0 | 21087 | 1 |
| C | 0 | 18027 | 1 |
| D | 0 | 17110 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6987 | 60 | 0.858738% |
| B | 6987 | 112 | 1.602977% |
| C | 6987 | 614 | 8.787749% |
| D | 6987 | 156 | 2.232718% |

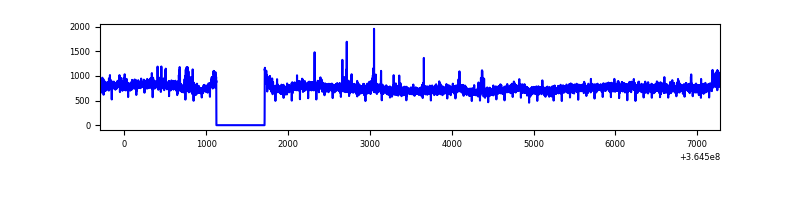

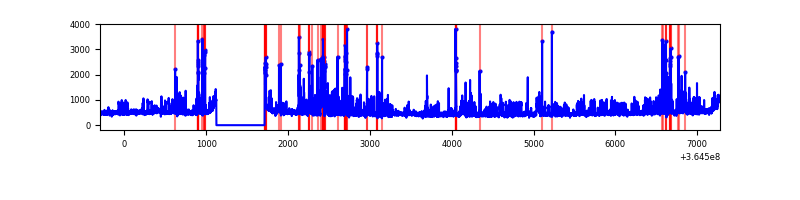

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7576 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7576 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7576 | 6987 | 414 | 414 | 5.46% | 5.93% |  |
| D | 7577 | 6988 | 98 | 98 | 1.29% | 1.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12152 | 66.62 | 842 | 823 | 170.1 |
| A | 3 | 137 | 8620 | 45.85 | 842 | 823 | 170.1 |
| A | 0 | 226 | 7171 | 37.33 | 842 | 823 | 170.1 |
| B | 6 | 159 | 1949478 | 12092.7 | 825 | 801 | 161.1 |
| B | 4 | 80 | 29510 | 178.16 | 825 | 801 | 161.1 |
| B | 0 | 190 | 25782 | 155.02 | 825 | 801 | 161.1 |
| C | 10 | 22 | 1117498 | 6120.68 | 777 | 784 | 182.4 |
| C | 3 | 233 | 238334 | 1302.0 | 777 | 784 | 182.4 |
| C | 14 | 238 | 150847 | 822.49 | 777 | 784 | 182.4 |
| D | 8 | 195 | 586815 | 2733.49 | 809 | 794 | 214.4 |
| D | 12 | 218 | 326052 | 1517.16 | 809 | 794 | 214.4 |
| D | 2 | 250 | 133529 | 619.14 | 809 | 794 | 214.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

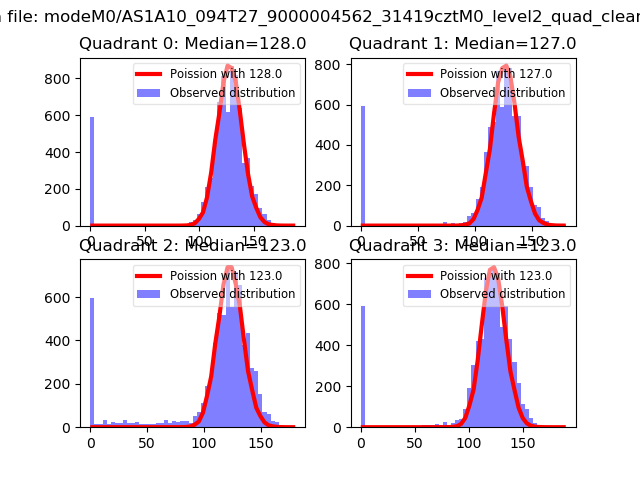

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

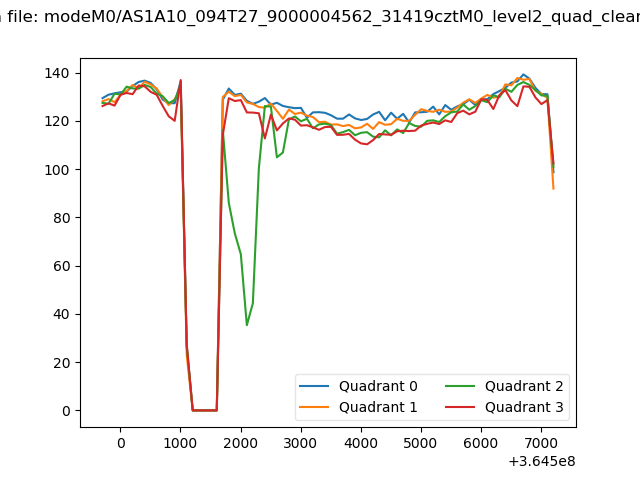

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

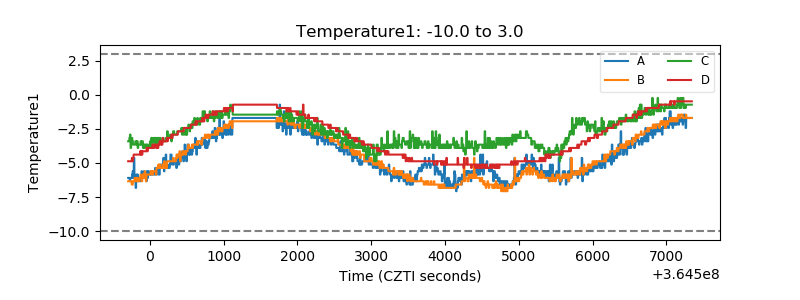

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

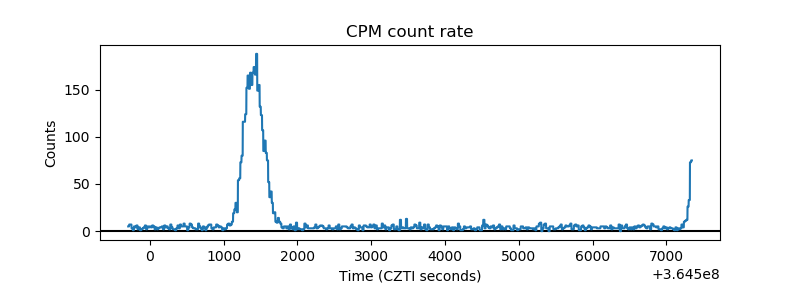

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

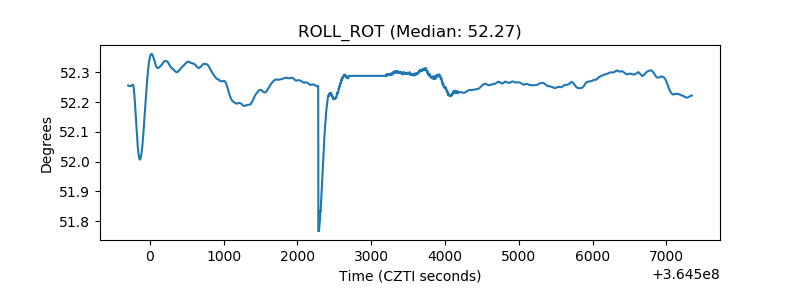

| _ROLL_ROT |  |
| _Roll_DEC |  |

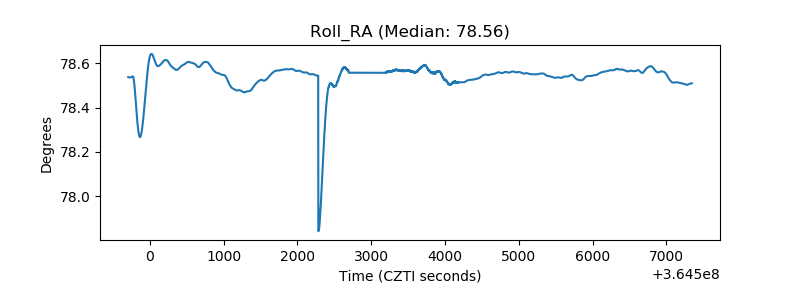

| _Roll_RA |  |
| Veto Counter |  |
