| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_026T01_9000004560_31414cztM0_level2.evt | modeM0/AS1T04_026T01_9000004560_31414cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,728,640 | 82,825,920 |
| Size | 558.6 MB | 79.0 MB |
| Events in quadrant A | 3,571,375 | 511,352 |
| Events in quadrant B | 5,632,038 | 512,892 |
| Events in quadrant C | 4,091,118 | 496,297 |
| Events in quadrant D | 3,959,281 | 489,135 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14894 | 2 |
| B | 0 | 21853 | 2 |
| C | 0 | 16382 | 2 |
| D | 0 | 16190 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7154 | 192 | 2.683813% |
| B | 7154 | 296 | 4.137545% |
| C | 7154 | 342 | 4.780542% |
| D | 7154 | 160 | 2.236511% |

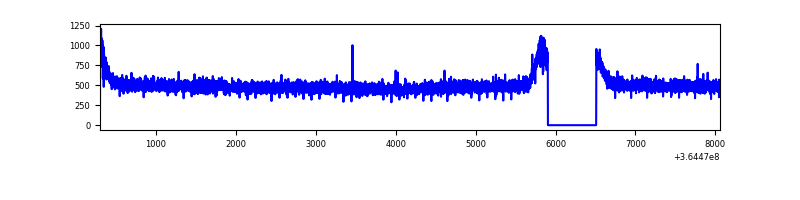

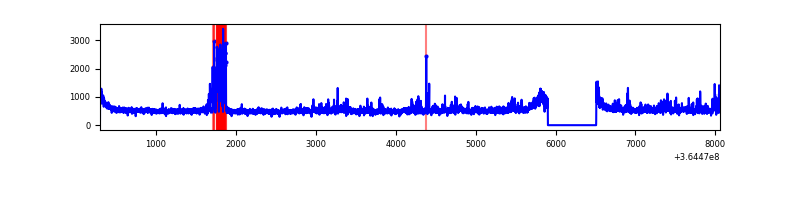

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7759 | 7154 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7759 | 7154 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7759 | 7154 | 45 | 45 | 0.58% | 0.63% |  |
| D | 7759 | 7154 | 11 | 11 | 0.14% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11413 | 56.32 | 925 | 907 | 186.5 |
| A | 3 | 137 | 9746 | 47.39 | 925 | 907 | 186.5 |
| A | 0 | 226 | 7619 | 35.98 | 925 | 907 | 186.5 |
| B | 6 | 159 | 1960599 | 11248.93 | 904 | 880 | 174.2 |
| B | 4 | 80 | 64426 | 364.76 | 904 | 880 | 174.2 |
| B | 12 | 111 | 22497 | 124.08 | 904 | 880 | 174.2 |
| C | 3 | 233 | 222973 | 1061.95 | 881 | 887 | 209.1 |
| C | 10 | 22 | 221446 | 1054.64 | 881 | 887 | 209.1 |
| C | 14 | 238 | 165700 | 788.08 | 881 | 887 | 209.1 |
| D | 8 | 195 | 439775 | 2007.13 | 900 | 876 | 218.7 |
| D | 12 | 218 | 58139 | 261.87 | 900 | 876 | 218.7 |
| D | 12 | 79 | 42838 | 191.9 | 900 | 876 | 218.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

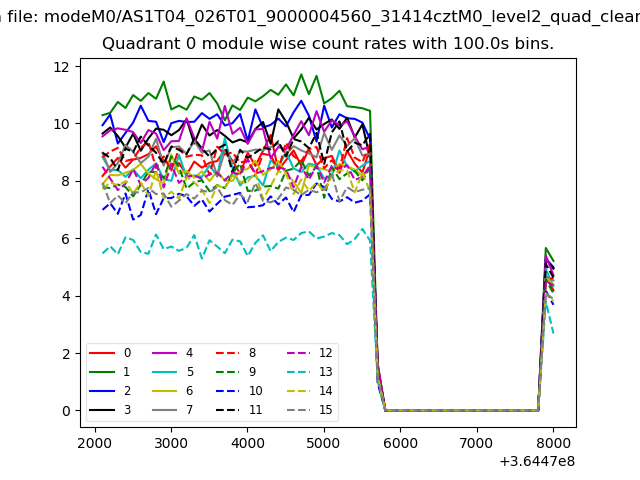

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

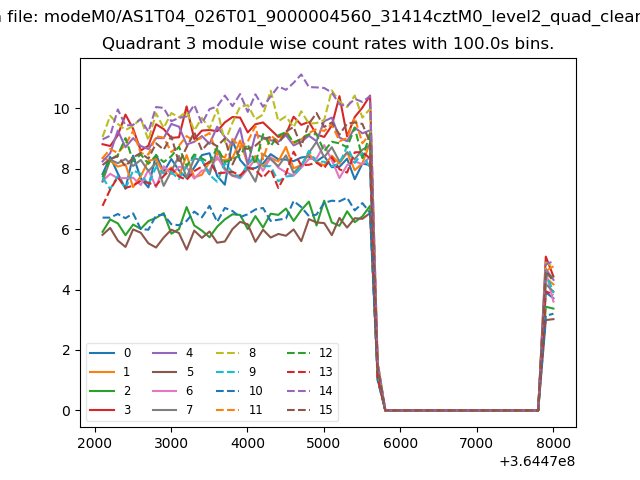

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

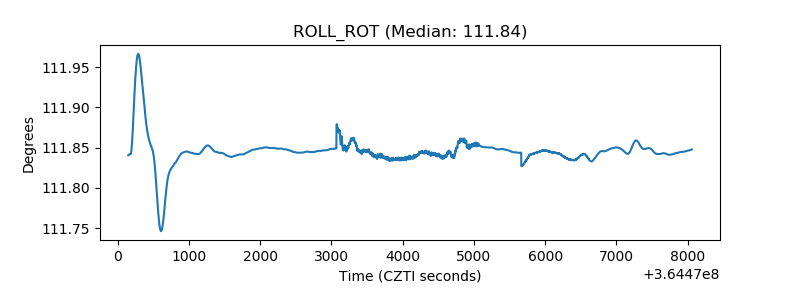

| _ROLL_ROT |  |

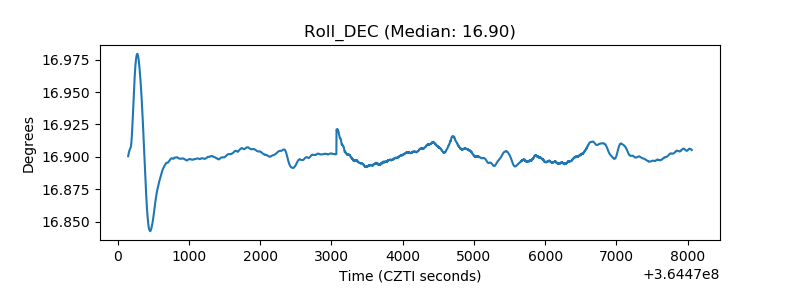

| _Roll_DEC |  |

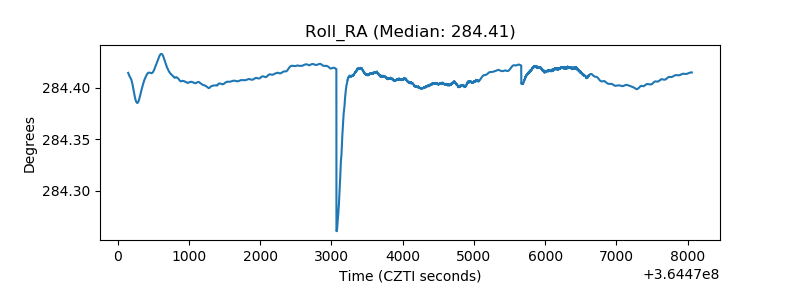

| _Roll_RA |  |

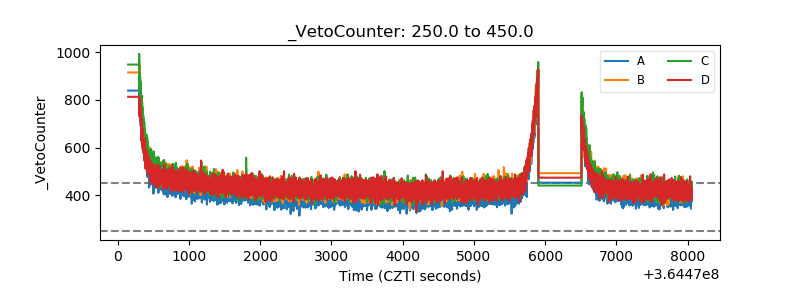

| Veto Counter |  |
