| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_029T01_9000004582_31459cztM0_level2.evt | modeM0/AS1T04_029T01_9000004582_31459cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,988,800 | 85,184,640 |
| Size | 630.4 MB | 81.2 MB |
| Events in quadrant A | 3,873,101 | 519,476 |
| Events in quadrant B | 6,293,607 | 521,877 |
| Events in quadrant C | 5,016,360 | 497,050 |
| Events in quadrant D | 4,301,338 | 493,229 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16469 | 1 |
| B | 0 | 24128 | 3 |
| C | 0 | 19996 | 1 |
| D | 0 | 18069 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7886 | 325 | 4.121227% |
| B | 7885 | 476 | 6.036779% |
| C | 7885 | 519 | 6.582118% |
| D | 7885 | 252 | 3.195942% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

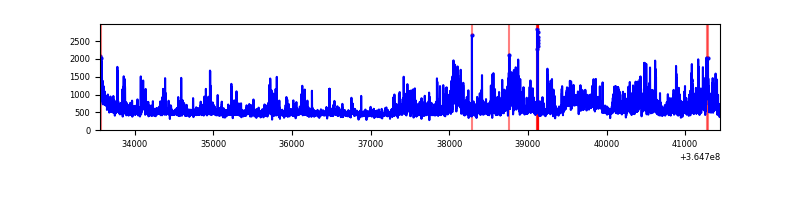

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7886 | 7886 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7885 | 7885 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7885 | 7885 | 13 | 13 | 0.16% | 0.16% |  |
| D | 7885 | 7885 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 13658 | 62.47 | 1003 | 982 | 202.9 |
| A | 3 | 137 | 11083 | 49.78 | 1003 | 982 | 202.9 |
| A | 0 | 226 | 8379 | 36.46 | 1003 | 982 | 202.9 |
| B | 6 | 159 | 2340356 | 12226.04 | 978 | 951 | 191.3 |
| B | 0 | 190 | 79978 | 413.0 | 978 | 951 | 191.3 |
| B | 12 | 111 | 24807 | 124.67 | 978 | 951 | 191.3 |
| C | 3 | 233 | 1017769 | 4568.85 | 946 | 952 | 222.6 |
| C | 14 | 238 | 163479 | 730.28 | 946 | 952 | 222.6 |
| C | 0 | 10 | 44208 | 194.36 | 946 | 952 | 222.6 |
| D | 8 | 195 | 623236 | 2684.25 | 969 | 941 | 231.8 |
| D | 2 | 234 | 27476 | 114.46 | 969 | 941 | 231.8 |
| D | 5 | 233 | 23687 | 98.11 | 969 | 941 | 231.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

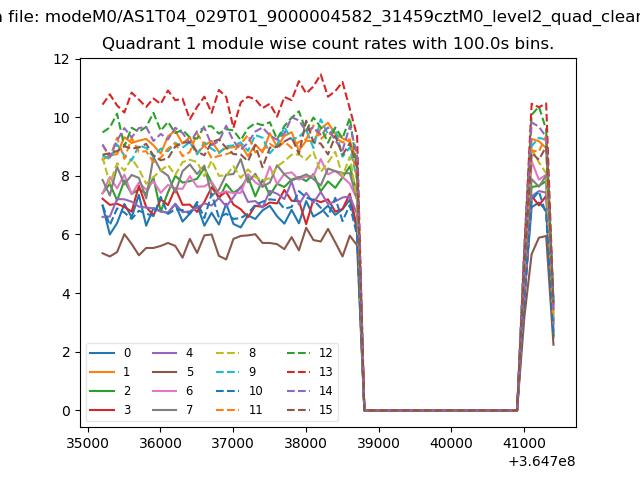

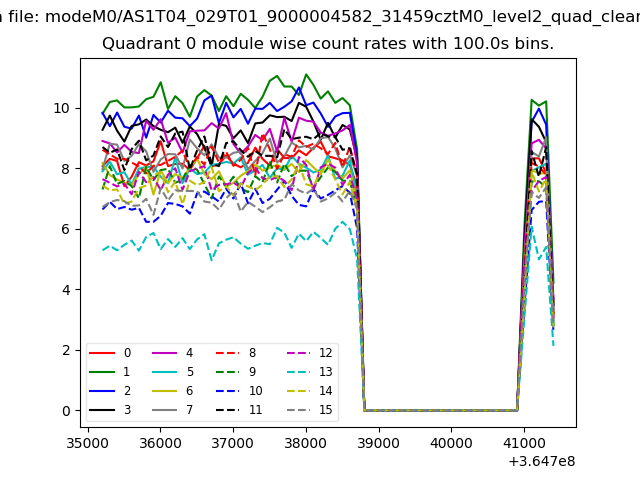

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

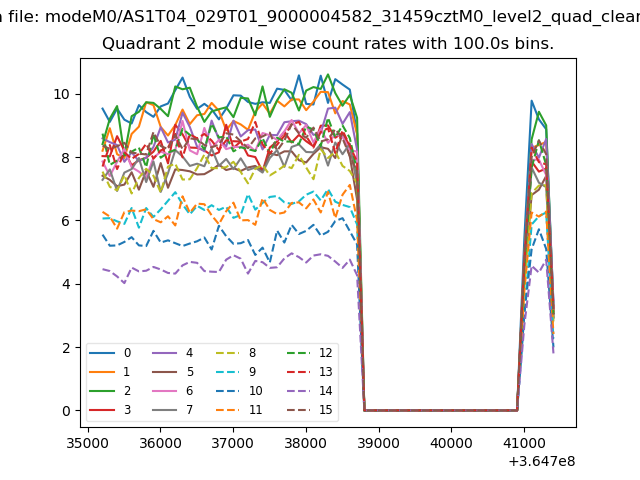

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

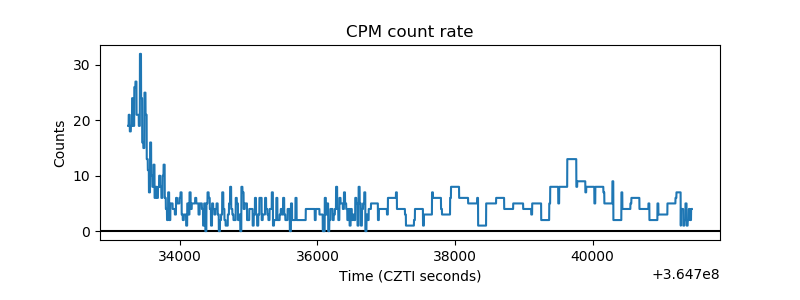

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

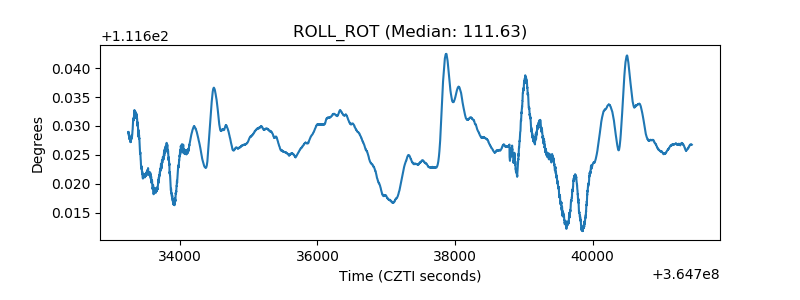

| _ROLL_ROT |  |
| _Roll_DEC |  |

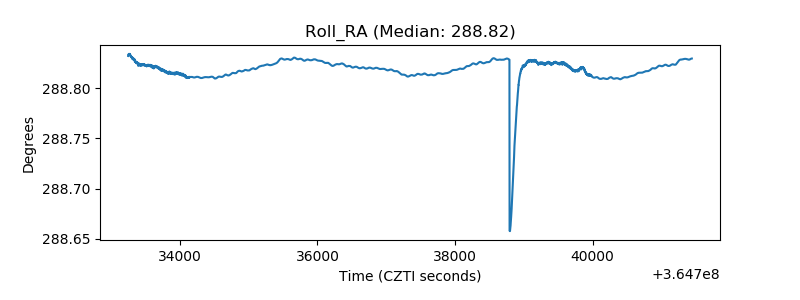

| _Roll_RA |  |

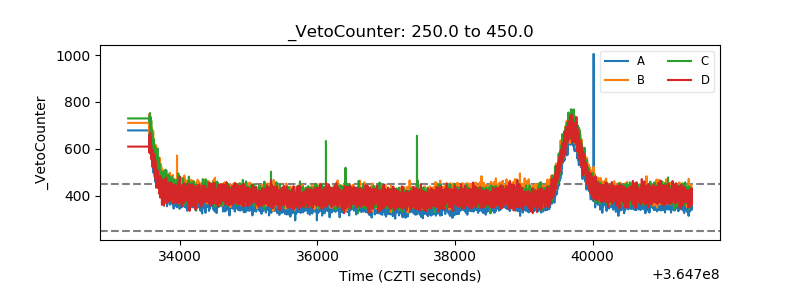

| Veto Counter |  |
