| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_029T01_9000004582_31471cztM0_level2.evt | modeM0/AS1T04_029T01_9000004582_31471cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,472,960 | 70,390,080 |
| Size | 505.9 MB | 67.1 MB |
| Events in quadrant A | 3,273,469 | 432,980 |
| Events in quadrant B | 5,246,528 | 435,748 |
| Events in quadrant C | 3,636,738 | 406,802 |
| Events in quadrant D | 3,470,320 | 404,486 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13437 | 2 |
| B | 0 | 19778 | 2 |
| C | 0 | 14498 | 2 |
| D | 0 | 14437 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6474 | 43 | 0.664195% |
| B | 6474 | 140 | 2.162496% |
| C | 6474 | 214 | 3.305530% |
| D | 6474 | 18 | 0.278035% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6475 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7564 | 6474 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7564 | 6474 | 95 | 95 | 1.26% | 1.47% |  |
| D | 7564 | 6475 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11421 | 62.86 | 848 | 835 | 168.4 |
| A | 3 | 137 | 8704 | 46.73 | 848 | 835 | 168.4 |
| A | 0 | 226 | 7047 | 36.89 | 848 | 835 | 168.4 |
| B | 6 | 159 | 1903028 | 11936.28 | 836 | 816 | 159.4 |
| B | 0 | 190 | 25504 | 154.92 | 836 | 816 | 159.4 |
| B | 4 | 80 | 21107 | 127.32 | 836 | 816 | 159.4 |
| C | 0 | 10 | 339626 | 1829.32 | 792 | 799 | 185.2 |
| C | 14 | 238 | 128626 | 690.14 | 792 | 799 | 185.2 |
| C | 10 | 22 | 53210 | 282.97 | 792 | 799 | 185.2 |
| D | 8 | 195 | 365787 | 1916.93 | 807 | 789 | 190.4 |
| D | 12 | 218 | 24813 | 126.17 | 807 | 789 | 190.4 |
| D | 2 | 234 | 24374 | 123.87 | 807 | 789 | 190.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

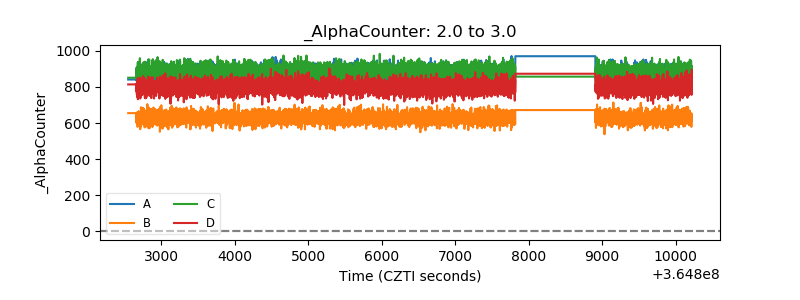

| Alpha Counter |  |
| _CPM_Rate |  |

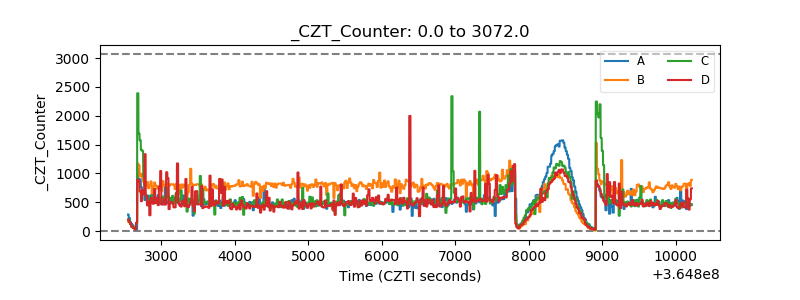

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

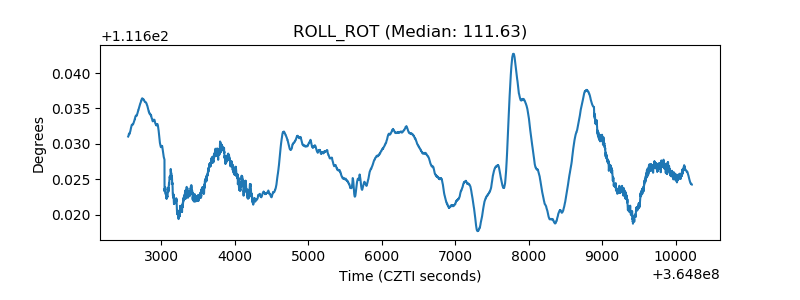

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

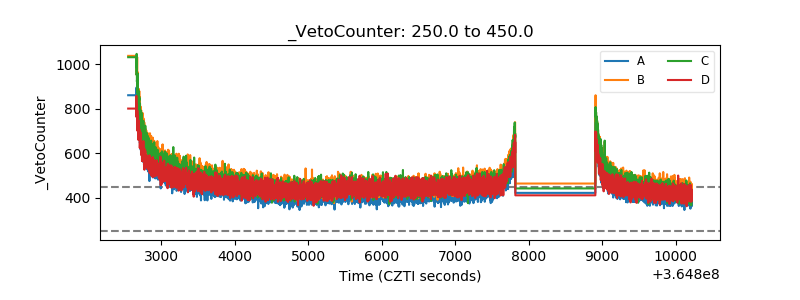

| Veto Counter |  |
