| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_028T01_9000004584_31496cztM0_level2.evt | modeM0/AS1T04_028T01_9000004584_31496cztM0_level2_quad_clean.evt |
| Size (bytes) | 251,841,600 | 43,856,640 |
| Size | 240.2 MB | 41.8 MB |
| Events in quadrant A | 1,319,522 | 292,740 |
| Events in quadrant B | 2,225,677 | 296,881 |
| Events in quadrant C | 1,481,999 | 276,531 |
| Events in quadrant D | 2,412,360 | 265,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5776 | 1 |
| B | 0 | 8545 | 1 |
| C | 0 | 6161 | 1 |
| D | 0 | 9159 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2745 | 2 | 0.072860% |
| B | 2745 | 26 | 0.947177% |
| C | 2745 | 79 | 2.877960% |
| D | 2745 | 16 | 0.582878% |

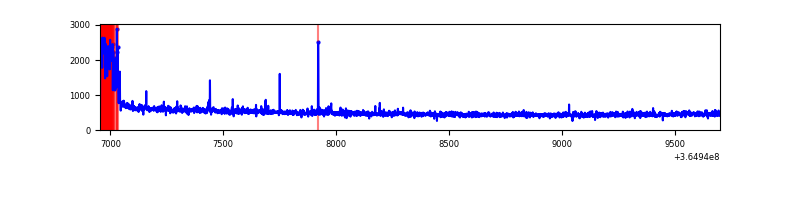

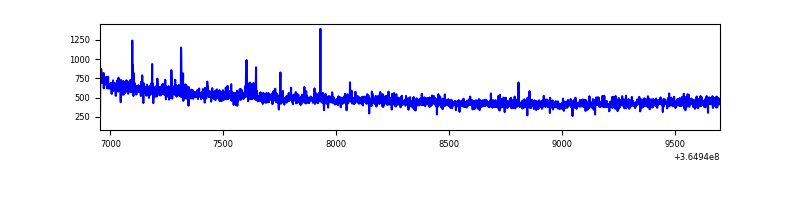

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2745 | 2745 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2745 | 2745 | 7 | 7 | 0.26% | 0.26% |  |
| C | 2745 | 2745 | 56 | 56 | 2.04% | 2.04% |  |
| D | 2745 | 2745 | 41 | 41 | 1.49% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 21410 | 307.25 | 336 | 330 | 68.6 |
| A | 13 | 254 | 5227 | 71.38 | 336 | 330 | 68.6 |
| A | 3 | 137 | 3262 | 42.74 | 336 | 330 | 68.6 |
| B | 6 | 159 | 803577 | 12381.23 | 339 | 331 | 64.9 |
| B | 5 | 172 | 42963 | 657.13 | 339 | 331 | 64.9 |
| B | 4 | 80 | 27507 | 418.89 | 339 | 331 | 64.9 |
| C | 0 | 10 | 158971 | 2092.87 | 317 | 320 | 75.8 |
| C | 14 | 238 | 51671 | 677.41 | 317 | 320 | 75.8 |
| C | 4 | 175 | 13364 | 172.07 | 317 | 320 | 75.8 |
| D | 8 | 195 | 1126310 | 14410.23 | 318 | 309 | 78.1 |
| D | 2 | 250 | 26534 | 335.62 | 318 | 309 | 78.1 |
| D | 13 | 249 | 13511 | 168.96 | 318 | 309 | 78.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

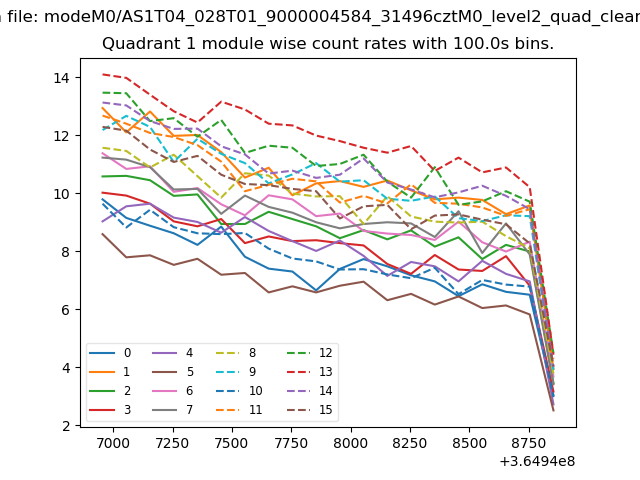

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

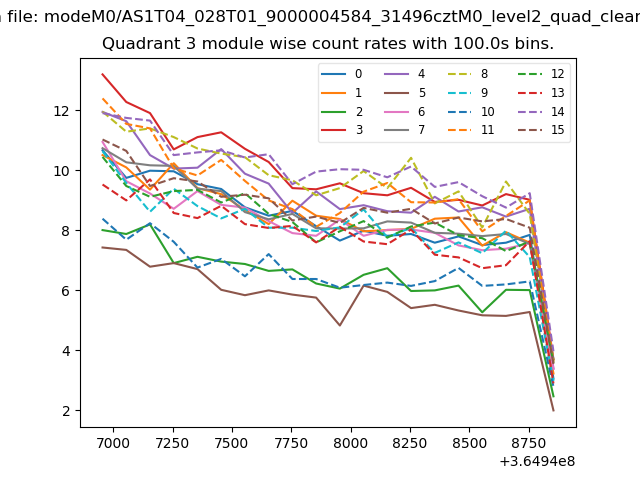

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

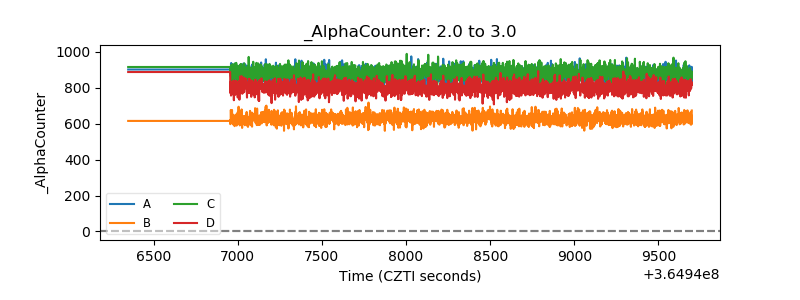

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

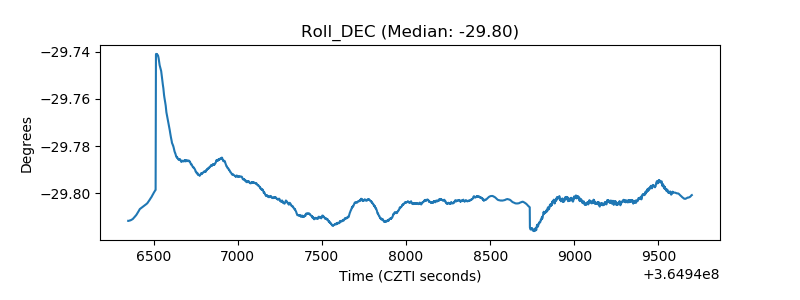

| _Roll_DEC |  |

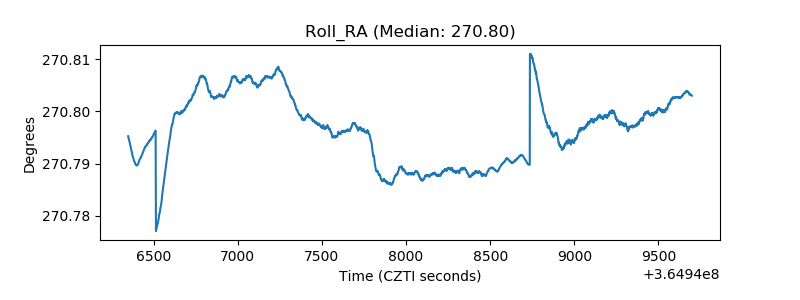

| _Roll_RA |  |

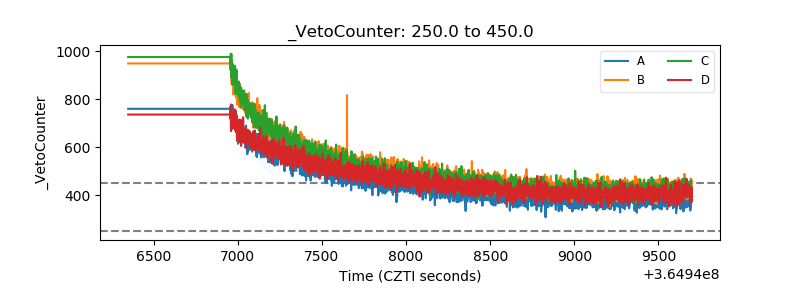

| Veto Counter |  |
