| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_053T26_9000004594_31524cztM0_level2.evt | modeM0/AS1A10_053T26_9000004594_31524cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,271,085,120 | 166,239,360 |
| Size | 1.2 GB | 158.5 MB |
| Events in quadrant A | 7,794,841 | 1,017,348 |
| Events in quadrant B | 12,171,510 | 1,034,620 |
| Events in quadrant C | 7,196,753 | 1,045,631 |
| Events in quadrant D | 10,417,062 | 998,057 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32485 | 3 |
| B | 0 | 46326 | 3 |
| C | 0 | 30245 | 3 |
| D | 0 | 39988 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 274 | 0 |
| B | 0 | 274 | 0 |
| C | 0 | 274 | 0 |
| D | 0 | 274 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13583 | 917 | 6.751086% |
| B | 13583 | 933 | 6.868880% |
| C | 13583 | 275 | 2.024590% |
| D | 13583 | 588 | 4.328941% |

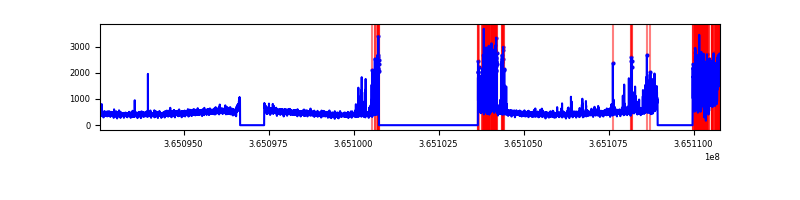

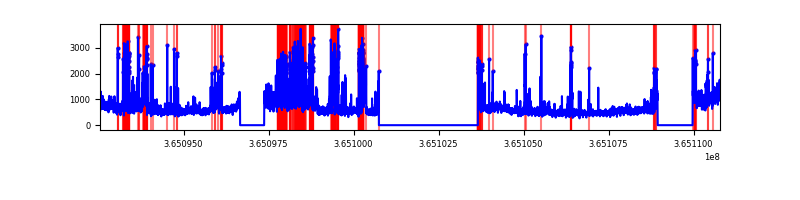

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18233 | 13582 | 354 | 354 | 1.94% | 2.61% |  |
| B | 18234 | 13584 | 603 | 603 | 3.31% | 4.44% |  |
| C | 18234 | 13584 | 47 | 47 | 0.26% | 0.35% |  |
| D | 18234 | 13585 | 527 | 527 | 2.89% | 3.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1795663 | 5724.3 | 1554 | 1520 | 313.4 |
| A | 13 | 254 | 24687 | 73.91 | 1554 | 1520 | 313.4 |
| A | 3 | 137 | 15758 | 45.43 | 1554 | 1520 | 313.4 |
| B | 6 | 159 | 3759209 | 12505.51 | 1567 | 1525 | 300.5 |
| B | 5 | 172 | 1616214 | 5373.66 | 1567 | 1525 | 300.5 |
| B | 4 | 80 | 371371 | 1230.84 | 1567 | 1525 | 300.5 |
| C | 3 | 233 | 509532 | 1389.21 | 1545 | 1552 | 365.7 |
| C | 0 | 10 | 307761 | 837.41 | 1545 | 1552 | 365.7 |
| C | 14 | 238 | 246946 | 671.1 | 1545 | 1552 | 365.7 |
| D | 8 | 195 | 2441285 | 6644.38 | 1537 | 1497 | 367.2 |
| D | 12 | 79 | 918895 | 2498.39 | 1537 | 1497 | 367.2 |
| D | 13 | 249 | 769743 | 2092.2 | 1537 | 1497 | 367.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

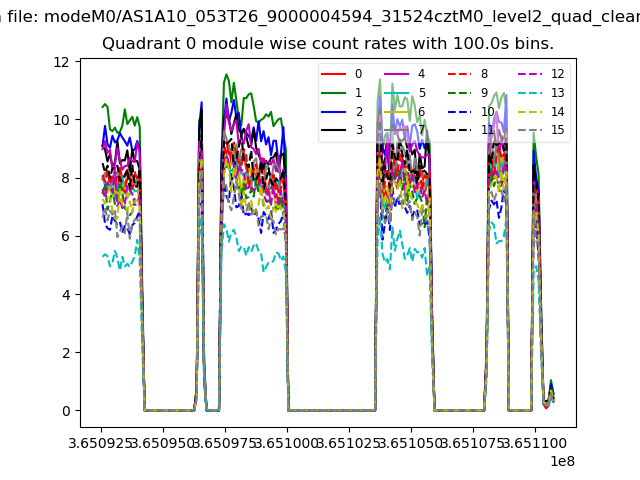

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

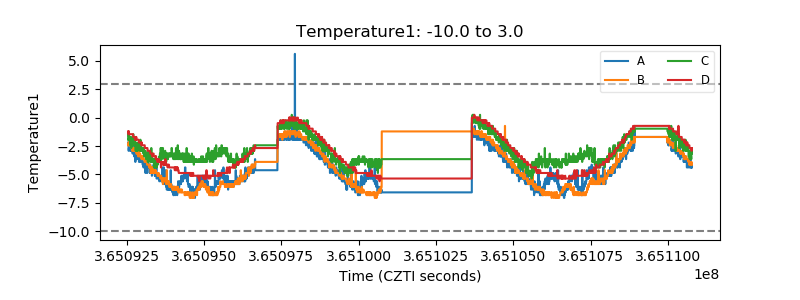

| Temperature 1 |  |

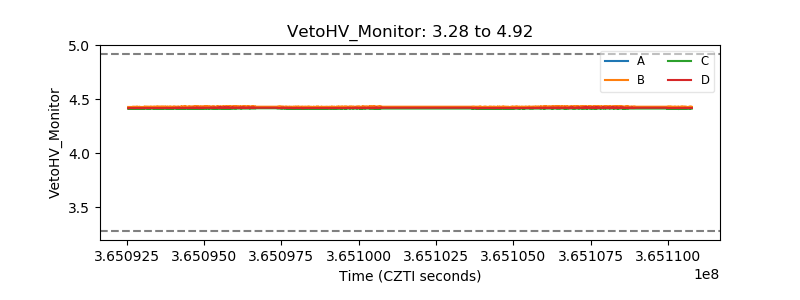

| Veto HV Monitor |  |
| Veto LLD |  |

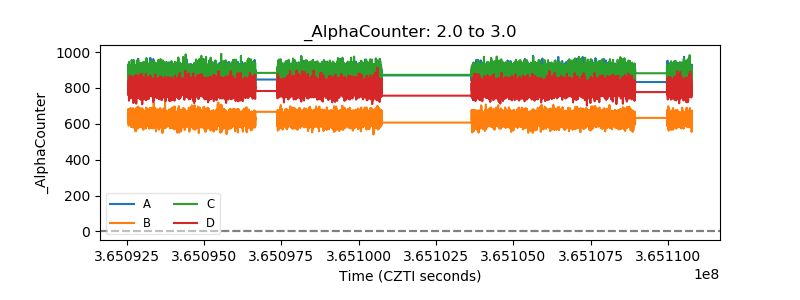

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

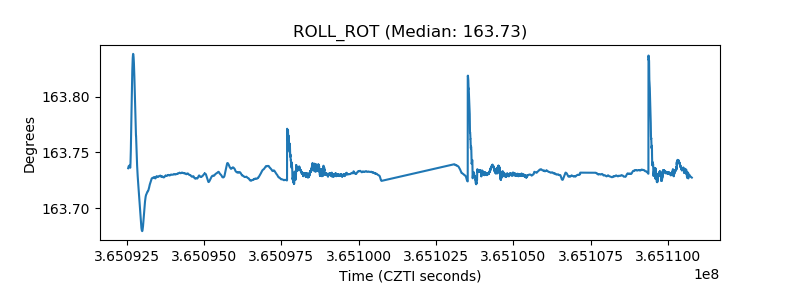

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

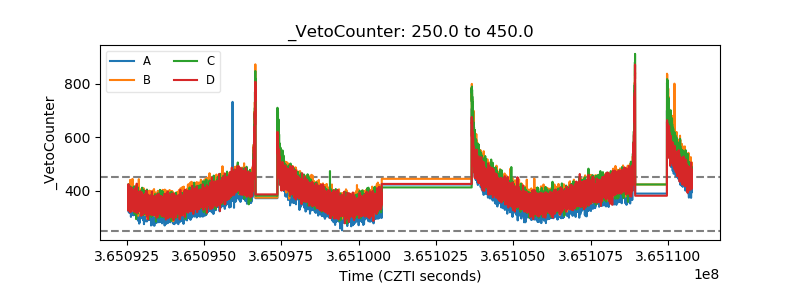

| Veto Counter |  |
