| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31539cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31539cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,895,680 | 112,440,960 |
| Size | 515.8 MB | 107.2 MB |
| Events in quadrant A | 3,104,944 | 755,991 |
| Events in quadrant B | 5,123,788 | 771,328 |
| Events in quadrant C | 3,393,590 | 744,216 |
| Events in quadrant D | 4,330,057 | 692,254 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13484 | 2 |
| B | 0 | 19779 | 2 |
| C | 0 | 14368 | 3 |
| D | 0 | 17050 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 16 | 0.253084% |
| B | 6322 | 108 | 1.708320% |
| C | 6321 | 136 | 2.151558% |
| D | 6321 | 366 | 5.790223% |

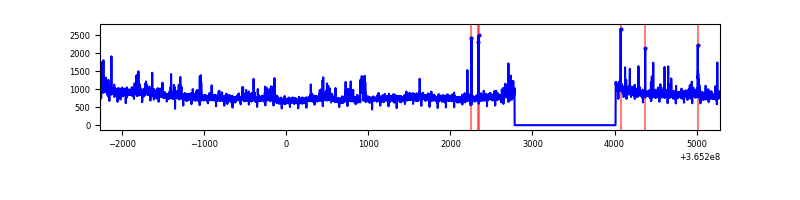

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7552 | 6323 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7552 | 6322 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7551 | 6321 | 14 | 14 | 0.19% | 0.22% |  |
| D | 7551 | 6322 | 294 | 294 | 3.89% | 4.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11655 | 67.72 | 804 | 787 | 160.5 |
| A | 3 | 137 | 8028 | 45.12 | 804 | 787 | 160.5 |
| A | 0 | 226 | 6657 | 36.58 | 804 | 787 | 160.5 |
| B | 6 | 159 | 1751220 | 11656.41 | 808 | 789 | 150.2 |
| B | 4 | 80 | 98525 | 650.84 | 808 | 789 | 150.2 |
| B | 0 | 190 | 43771 | 286.22 | 808 | 789 | 150.2 |
| C | 14 | 238 | 129066 | 701.55 | 788 | 794 | 182.8 |
| C | 0 | 10 | 52056 | 280.36 | 788 | 794 | 182.8 |
| C | 10 | 22 | 34761 | 185.77 | 788 | 794 | 182.8 |
| D | 13 | 249 | 755376 | 4164.97 | 761 | 740 | 181.2 |
| D | 8 | 195 | 436000 | 2402.28 | 761 | 740 | 181.2 |
| D | 12 | 218 | 125389 | 687.96 | 761 | 740 | 181.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

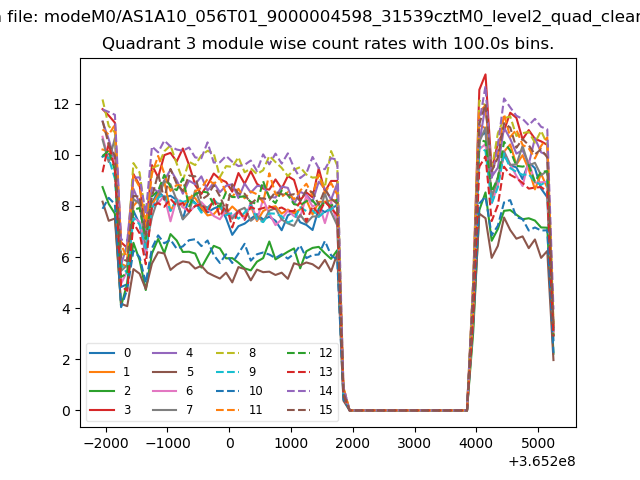

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

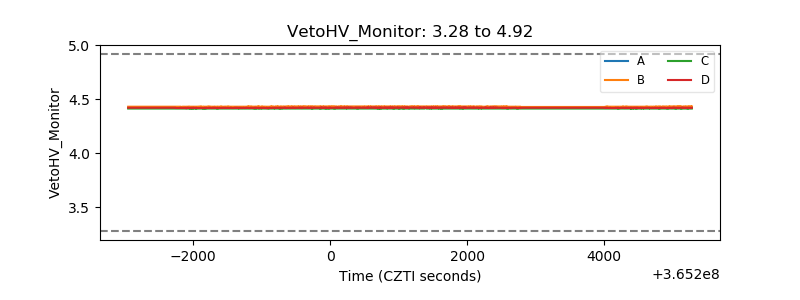

| Veto HV Monitor |  |

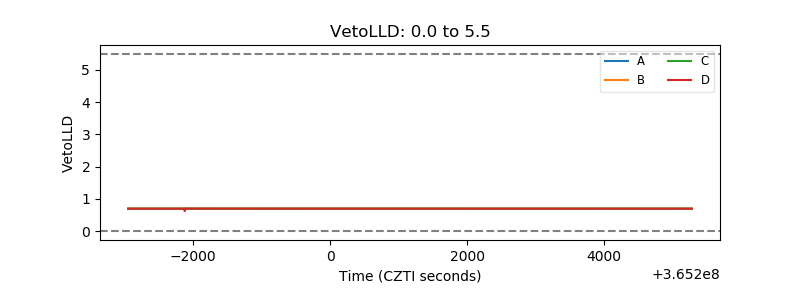

| Veto LLD |  |

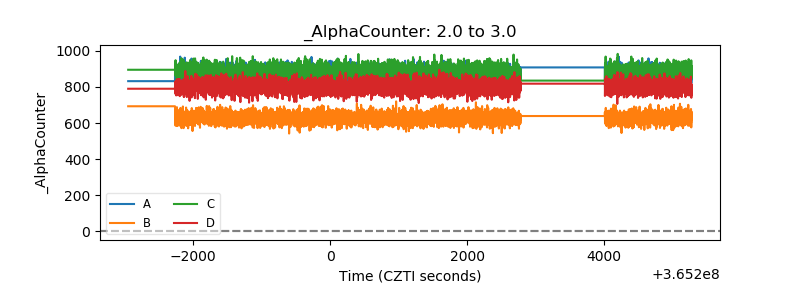

| Alpha Counter |  |
| _CPM_Rate |  |

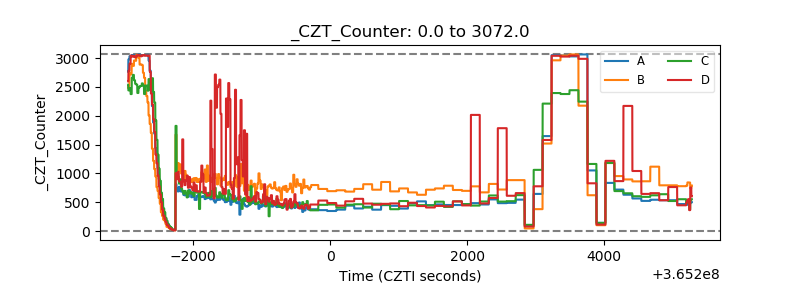

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

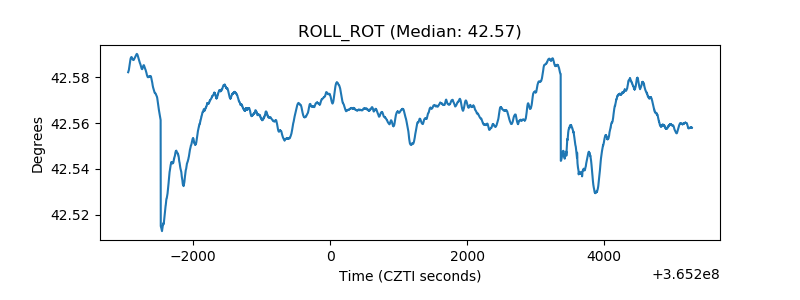

| _ROLL_ROT |  |
| _Roll_DEC |  |

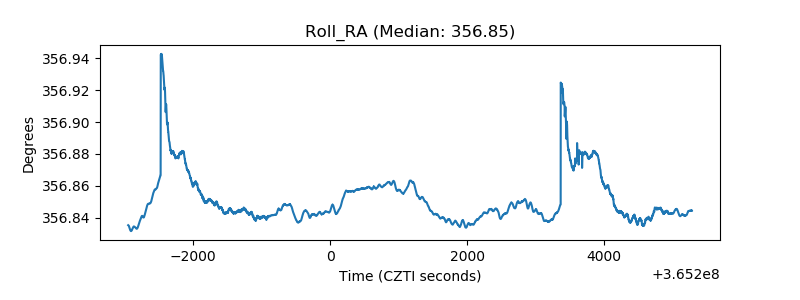

| _Roll_RA |  |
| Veto Counter |  |
