| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31547cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31547cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,065,600 | 83,672,640 |
| Size | 516.0 MB | 79.8 MB |
| Events in quadrant A | 3,319,471 | 520,046 |
| Events in quadrant B | 5,441,821 | 519,749 |
| Events in quadrant C | 3,381,369 | 500,149 |
| Events in quadrant D | 3,756,959 | 494,195 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14608 | 1 |
| B | 0 | 21819 | 1 |
| C | 0 | 14657 | 1 |
| D | 0 | 15792 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7169 | 146 | 2.036546% |
| B | 7170 | 233 | 3.249651% |
| C | 7170 | 180 | 2.510460% |
| D | 7169 | 180 | 2.510810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 7169 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7470 | 7170 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7470 | 7170 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7468 | 7168 | 59 | 59 | 0.79% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12945 | 69.48 | 860 | 840 | 174.2 |
| A | 3 | 137 | 8985 | 46.75 | 860 | 840 | 174.2 |
| A | 0 | 226 | 7121 | 36.05 | 860 | 840 | 174.2 |
| B | 6 | 159 | 1894657 | 11593.78 | 847 | 825 | 163.3 |
| B | 4 | 80 | 63702 | 384.92 | 847 | 825 | 163.3 |
| B | 0 | 190 | 33519 | 200.15 | 847 | 825 | 163.3 |
| C | 14 | 238 | 130836 | 678.74 | 816 | 817 | 191.6 |
| C | 3 | 233 | 25092 | 126.72 | 816 | 817 | 191.6 |
| C | 2 | 114 | 16665 | 82.73 | 816 | 817 | 191.6 |
| D | 8 | 195 | 341315 | 1733.19 | 826 | 802 | 196.5 |
| D | 7 | 223 | 123253 | 623.27 | 826 | 802 | 196.5 |
| D | 2 | 250 | 70732 | 355.94 | 826 | 802 | 196.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

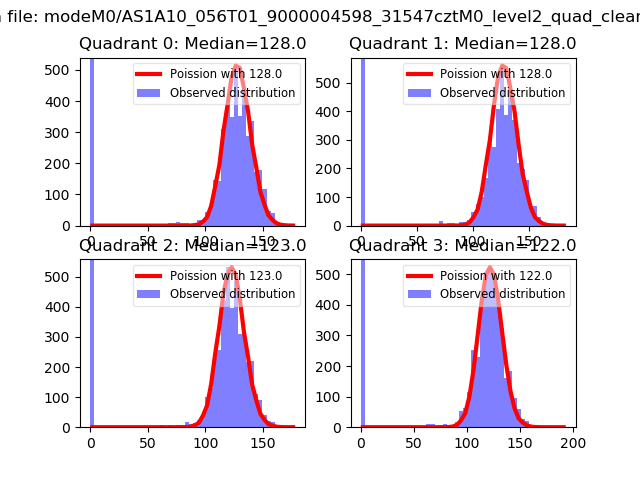

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

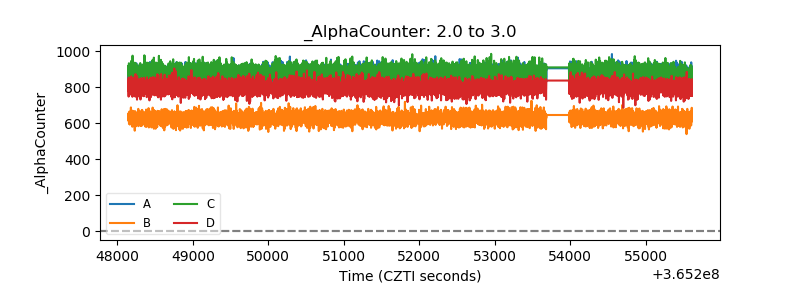

| Alpha Counter |  |

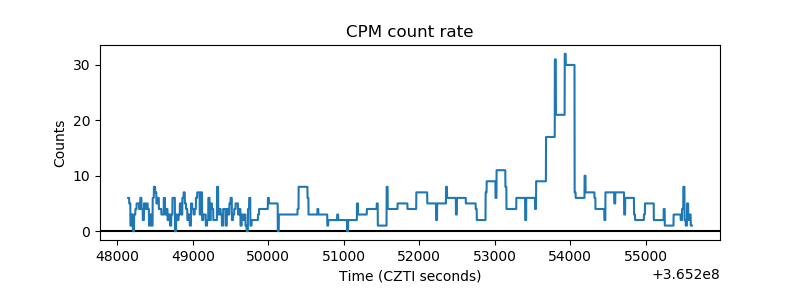

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

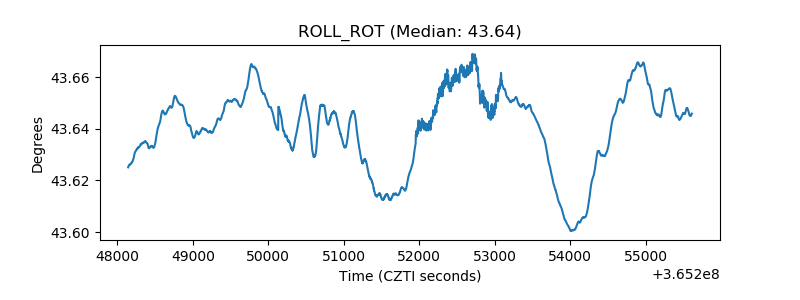

| _ROLL_ROT |  |
| _Roll_DEC |  |

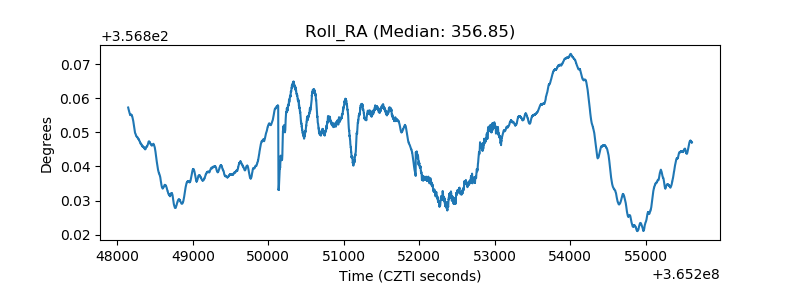

| _Roll_RA |  |

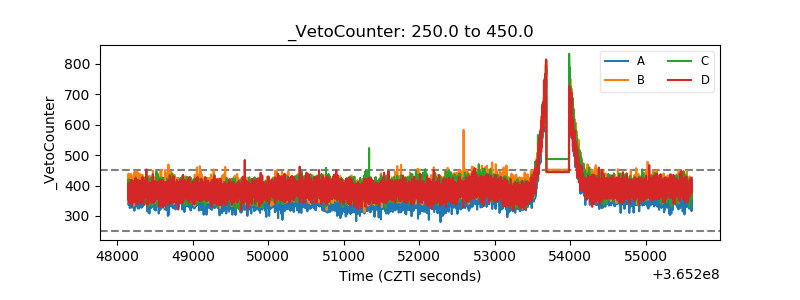

| Veto Counter |  |
