| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31551cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31551cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,587,840 | 92,520,000 |
| Size | 570.9 MB | 88.2 MB |
| Events in quadrant A | 4,099,732 | 559,696 |
| Events in quadrant B | 5,237,493 | 616,335 |
| Events in quadrant C | 3,339,627 | 592,286 |
| Events in quadrant D | 5,008,757 | 576,965 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16529 | 2 |
| B | 0 | 20331 | 2 |
| C | 0 | 14302 | 2 |
| D | 0 | 19308 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 570 | 8.710269% |
| B | 6544 | 122 | 1.864303% |
| C | 6544 | 139 | 2.124083% |
| D | 6544 | 78 | 1.191932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7579 | 6544 | 297 | 297 | 3.92% | 4.54% |  |
| B | 7579 | 6544 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7579 | 6544 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7579 | 6544 | 15 | 15 | 0.20% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1110868 | 7163.69 | 774 | 759 | 155.0 |
| A | 13 | 254 | 10645 | 63.8 | 774 | 759 | 155.0 |
| A | 3 | 137 | 7871 | 45.89 | 774 | 759 | 155.0 |
| B | 6 | 159 | 1824062 | 11758.66 | 813 | 791 | 155.1 |
| B | 4 | 80 | 80740 | 515.61 | 813 | 791 | 155.1 |
| B | 0 | 190 | 44179 | 279.82 | 813 | 791 | 155.1 |
| C | 14 | 238 | 128558 | 690.16 | 789 | 792 | 185.1 |
| C | 0 | 10 | 64019 | 341.54 | 789 | 792 | 185.1 |
| C | 4 | 175 | 40495 | 214.47 | 789 | 792 | 185.1 |
| D | 8 | 195 | 1853418 | 9787.24 | 794 | 774 | 189.3 |
| D | 12 | 218 | 50802 | 264.29 | 794 | 774 | 189.3 |
| D | 13 | 249 | 38900 | 201.41 | 794 | 774 | 189.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

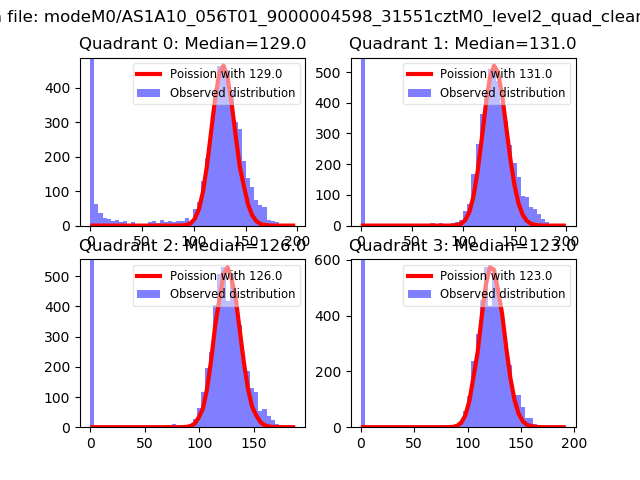

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

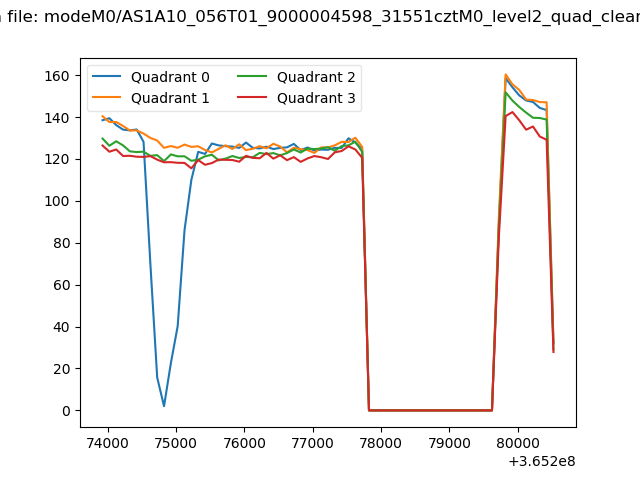

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

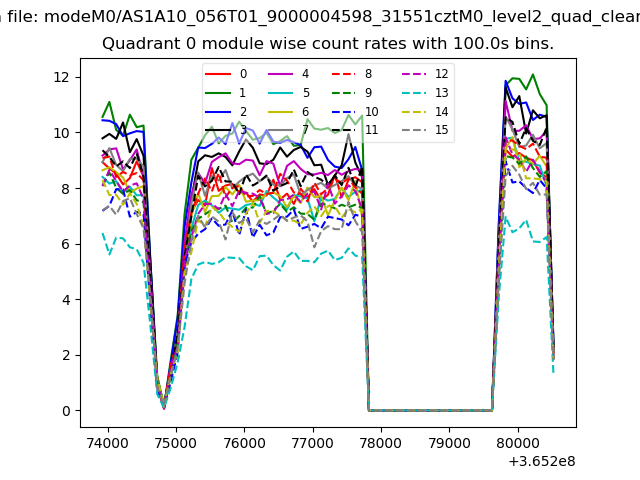

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

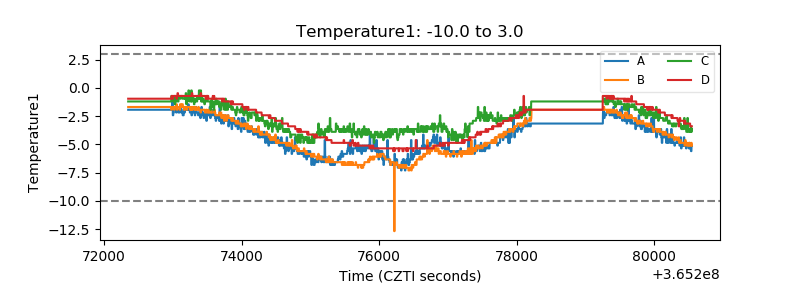

| Temperature 1 |  |

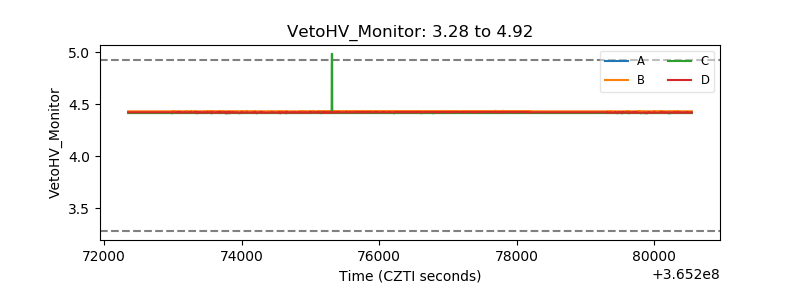

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

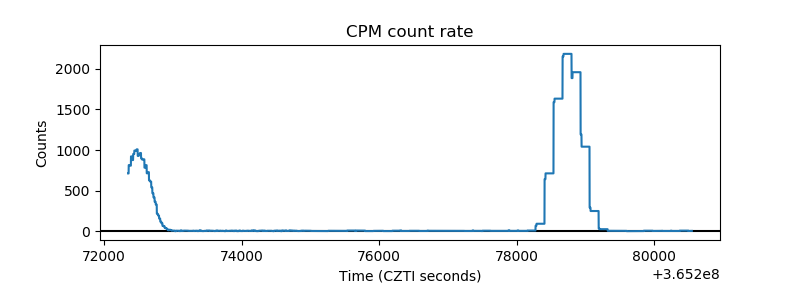

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

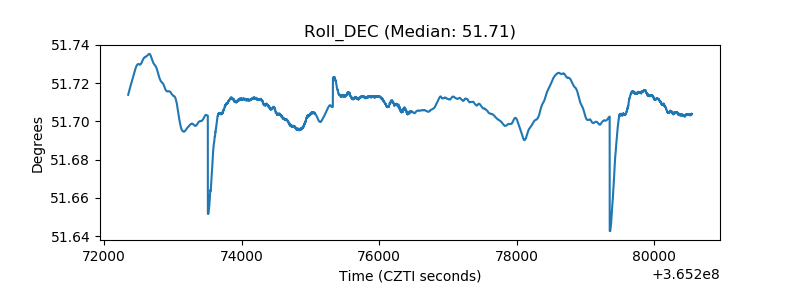

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
