| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31555cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31555cztM0_level2_quad_clean.evt |
| Size (bytes) | 714,651,840 | 136,445,760 |
| Size | 681.5 MB | 130.1 MB |
| Events in quadrant A | 4,130,118 | 905,469 |
| Events in quadrant B | 7,970,832 | 901,240 |
| Events in quadrant C | 4,456,224 | 894,445 |
| Events in quadrant D | 4,527,214 | 857,424 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20557 | 2973 |
| B | 0 | 34604 | 5259 |
| C | 0 | 21407 | 2979 |
| D | 0 | 21977 | 3148 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 1 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 198 | 28 |
| B | 0 | 196 | 28 |
| C | 0 | 197 | 29 |
| D | 0 | 197 | 29 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8296 | 55 | 0.662970% |
| B | 8155 | 926 | 11.354997% |
| C | 8306 | 225 | 2.708885% |
| D | 8280 | 117 | 1.413043% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12425 | 8454 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12425 | 8279 | 548 | 548 | 4.41% | 6.62% |  |
| C | 12521 | 8482 | 29 | 29 | 0.23% | 0.34% |  |
| D | 12531 | 8427 | 45 | 45 | 0.36% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 15322 | 67.31 | 1069 | 1050 | 212.0 |
| A | 3 | 137 | 10512 | 44.63 | 1069 | 1050 | 212.0 |
| A | 0 | 226 | 8953 | 37.27 | 1069 | 1050 | 212.0 |
| B | 6 | 159 | 2160869 | 11424.46 | 1025 | 1003 | 189.1 |
| B | 4 | 80 | 1690694 | 8937.5 | 1025 | 1003 | 189.1 |
| B | 0 | 190 | 43505 | 224.81 | 1025 | 1003 | 189.1 |
| C | 14 | 238 | 170680 | 708.92 | 1042 | 1049 | 239.3 |
| C | 0 | 10 | 165920 | 689.03 | 1042 | 1049 | 239.3 |
| C | 3 | 233 | 20015 | 79.26 | 1042 | 1049 | 239.3 |
| D | 8 | 195 | 340464 | 1412.3 | 1032 | 1007 | 240.4 |
| D | 13 | 249 | 119363 | 492.42 | 1032 | 1007 | 240.4 |
| D | 2 | 250 | 96896 | 398.94 | 1032 | 1007 | 240.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

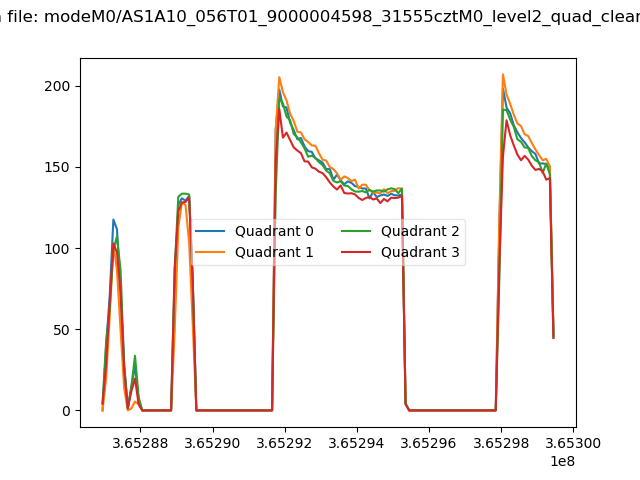

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

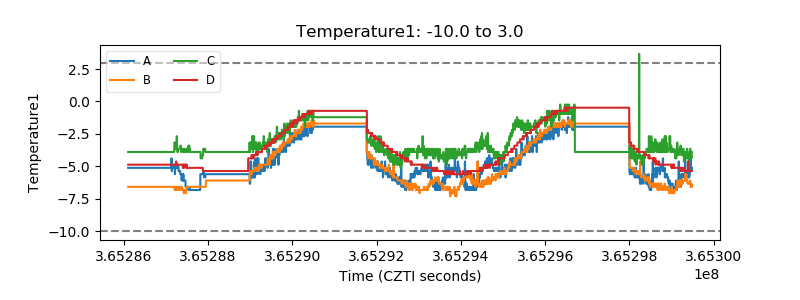

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

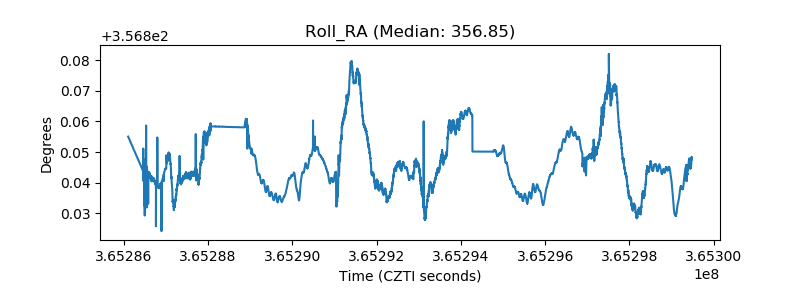

| _Roll_RA |  |

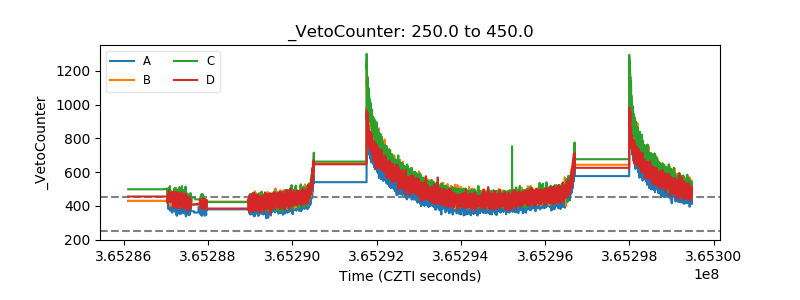

| Veto Counter |  |
