| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31556cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31556cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,610,560 | 104,417,280 |
| Size | 489.8 MB | 99.6 MB |
| Events in quadrant A | 3,091,786 | 689,568 |
| Events in quadrant B | 5,122,599 | 711,187 |
| Events in quadrant C | 3,335,974 | 674,837 |
| Events in quadrant D | 3,582,311 | 652,073 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13108 | 2 |
| B | 0 | 19489 | 2 |
| C | 0 | 13798 | 2 |
| D | 0 | 14693 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 22 | 0.353073% |
| B | 6231 | 108 | 1.733269% |
| C | 6231 | 140 | 2.246830% |
| D | 6230 | 122 | 1.958266% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 6232 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7586 | 6231 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7586 | 6231 | 14 | 14 | 0.18% | 0.22% |  |
| D | 7585 | 6231 | 52 | 52 | 0.69% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11334 | 66.54 | 799 | 784 | 158.6 |
| A | 3 | 137 | 7549 | 42.67 | 799 | 784 | 158.6 |
| A | 0 | 226 | 6585 | 36.59 | 799 | 784 | 158.6 |
| B | 6 | 159 | 1730203 | 11529.24 | 805 | 787 | 150.0 |
| B | 4 | 80 | 169076 | 1121.91 | 805 | 787 | 150.0 |
| B | 0 | 190 | 28180 | 182.62 | 805 | 787 | 150.0 |
| C | 14 | 238 | 133663 | 744.3 | 775 | 780 | 178.5 |
| C | 0 | 10 | 113108 | 629.17 | 775 | 780 | 178.5 |
| C | 2 | 16 | 19658 | 105.74 | 775 | 780 | 178.5 |
| D | 8 | 195 | 361395 | 2021.43 | 765 | 745 | 178.4 |
| D | 12 | 218 | 163167 | 910.37 | 765 | 745 | 178.4 |
| D | 13 | 249 | 85211 | 473.43 | 765 | 745 | 178.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

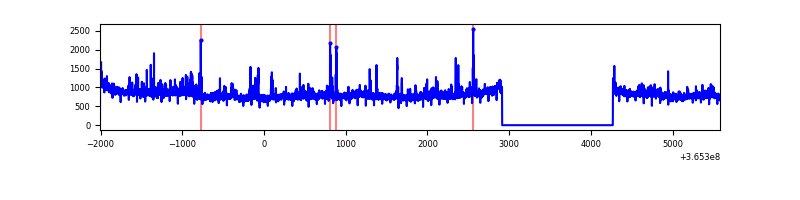

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

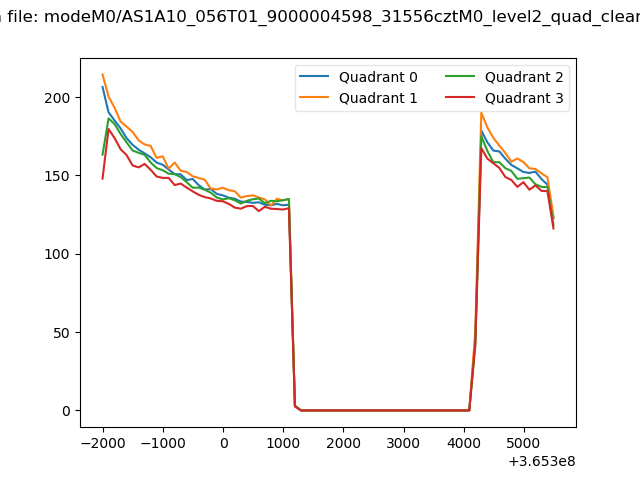

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

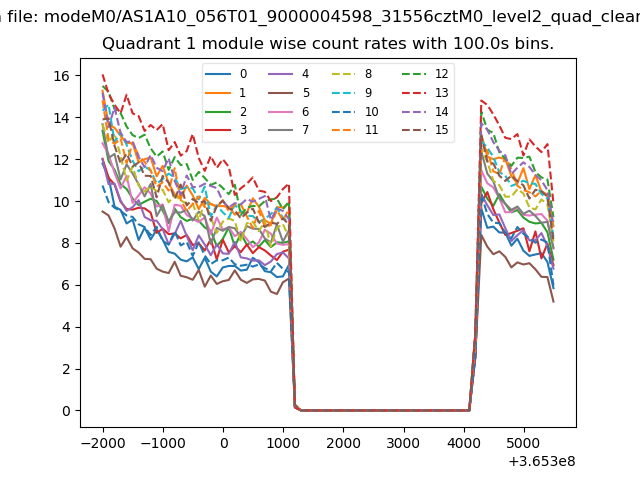

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

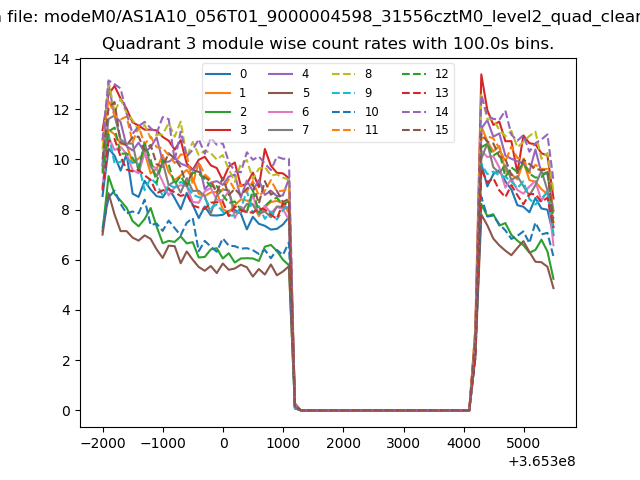

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

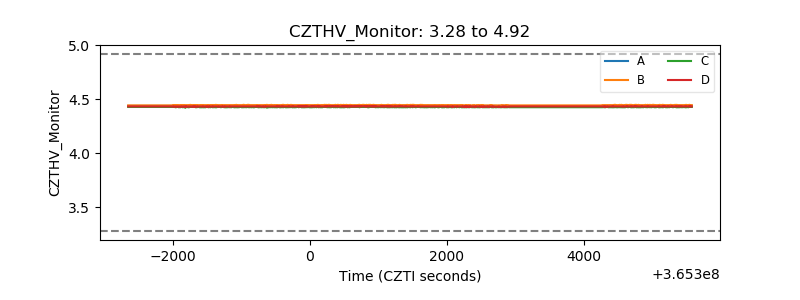

| CZT HV Monitor |  |

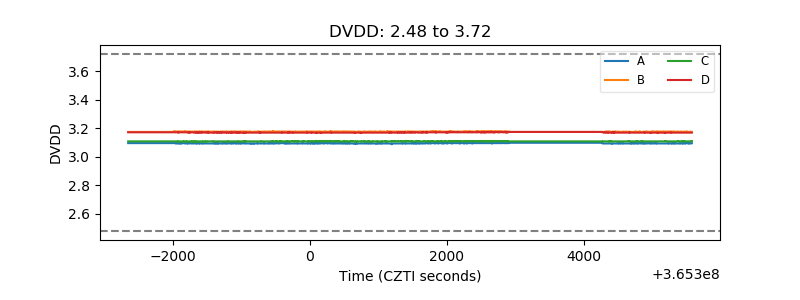

| D_VDD |  |

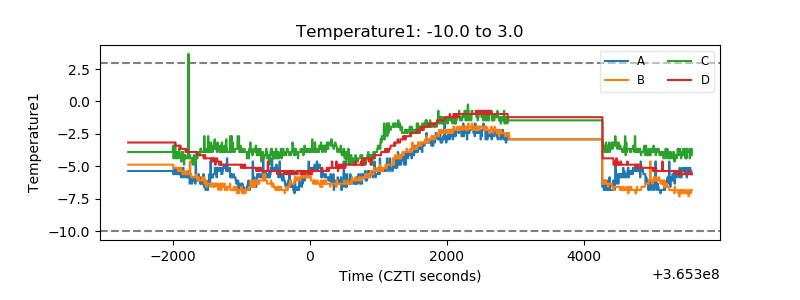

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

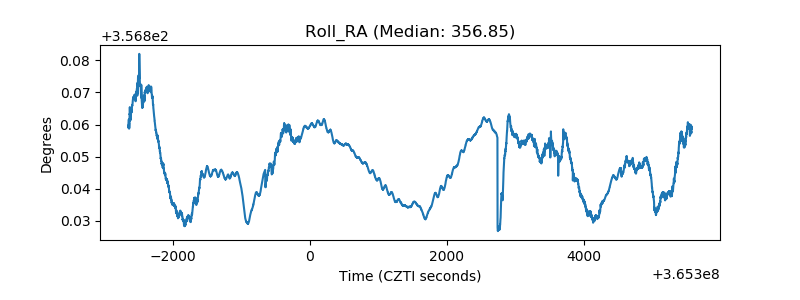

| _Roll_RA |  |
| Veto Counter |  |
