| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004598_31565cztM0_level2.evt | modeM0/AS1A10_056T01_9000004598_31565cztM0_level2_quad_clean.evt |
| Size (bytes) | 575,130,240 | 93,911,040 |
| Size | 548.5 MB | 89.6 MB |
| Events in quadrant A | 3,366,717 | 604,375 |
| Events in quadrant B | 5,569,960 | 601,172 |
| Events in quadrant C | 3,478,816 | 579,552 |
| Events in quadrant D | 4,530,188 | 573,192 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14596 | 2 |
| B | 0 | 21620 | 2 |
| C | 0 | 14823 | 2 |
| D | 0 | 18333 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6970 | 66 | 0.946915% |
| B | 6971 | 182 | 2.610816% |
| C | 6971 | 137 | 1.965285% |
| D | 6971 | 176 | 2.524745% |

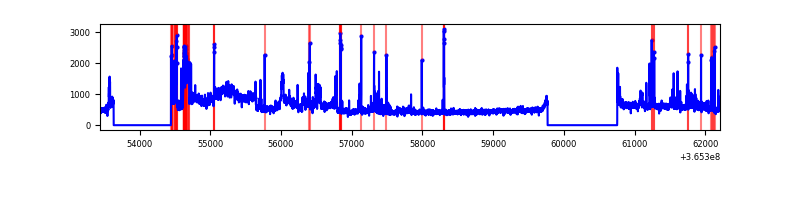

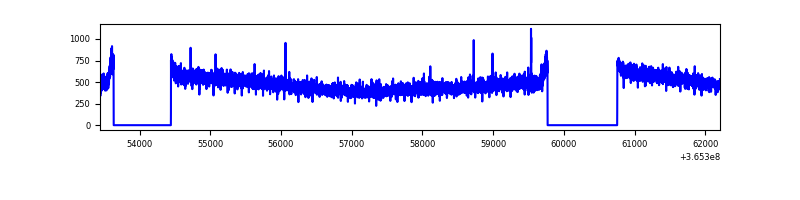

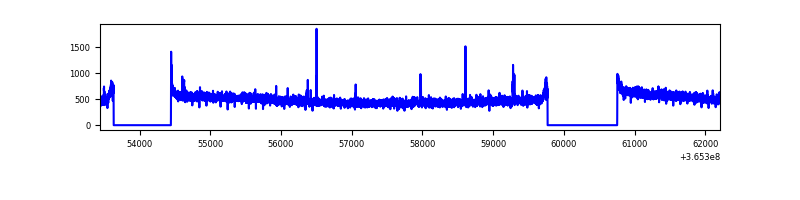

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8765 | 6970 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8766 | 6971 | 18 | 18 | 0.21% | 0.26% |  |
| C | 8766 | 6971 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8766 | 6971 | 80 | 80 | 0.91% | 1.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12219 | 64.94 | 871 | 853 | 175.0 |
| A | 3 | 137 | 9088 | 47.05 | 871 | 853 | 175.0 |
| A | 0 | 226 | 7385 | 37.32 | 871 | 853 | 175.0 |
| B | 6 | 159 | 1898286 | 11490.07 | 861 | 838 | 165.1 |
| B | 4 | 80 | 144718 | 871.27 | 861 | 838 | 165.1 |
| B | 0 | 190 | 71673 | 428.94 | 861 | 838 | 165.1 |
| C | 14 | 238 | 133333 | 675.47 | 836 | 840 | 196.1 |
| C | 4 | 175 | 20433 | 99.89 | 836 | 840 | 196.1 |
| C | 2 | 114 | 16468 | 79.67 | 836 | 840 | 196.1 |
| D | 7 | 223 | 684356 | 3377.73 | 843 | 818 | 202.4 |
| D | 8 | 195 | 323400 | 1594.05 | 843 | 818 | 202.4 |
| D | 12 | 218 | 232399 | 1144.37 | 843 | 818 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

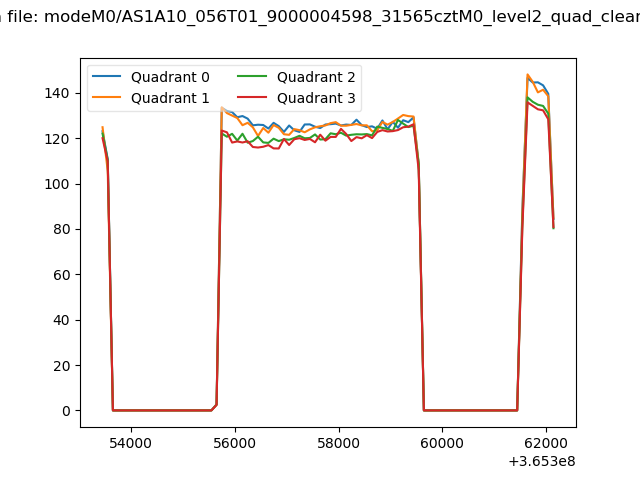

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

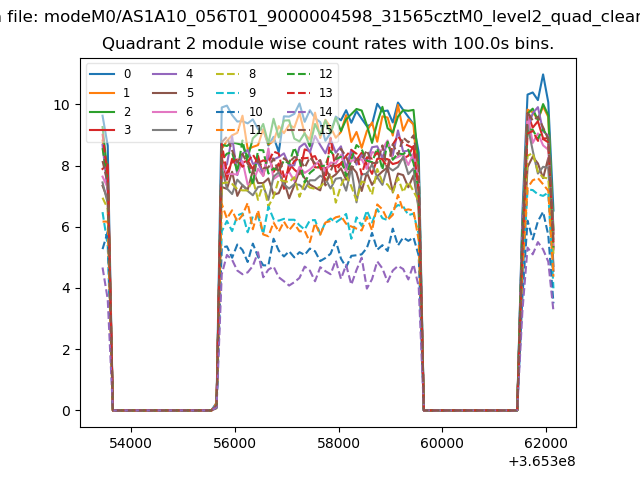

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

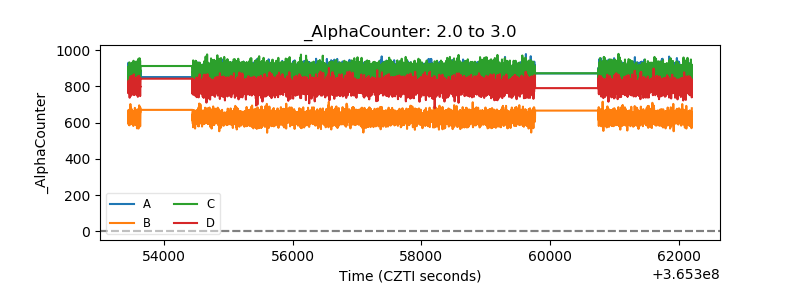

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

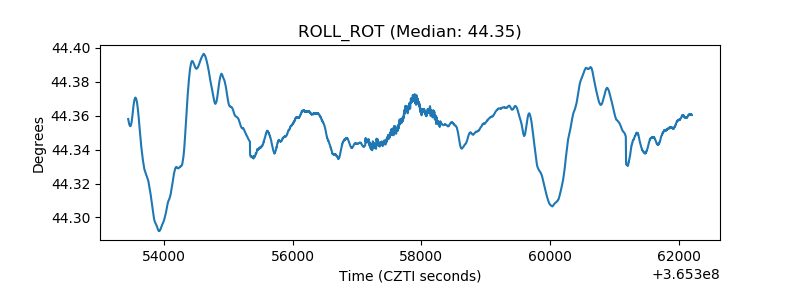

| _ROLL_ROT |  |
| _Roll_DEC |  |

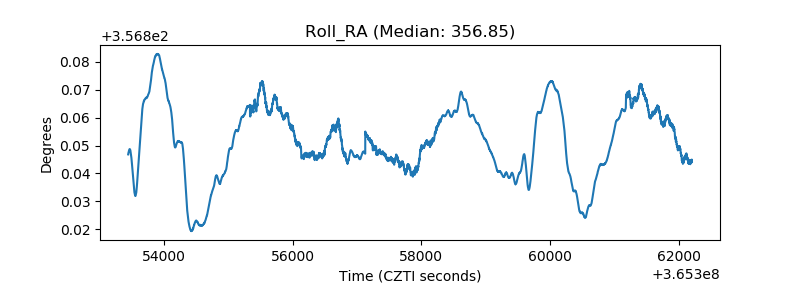

| _Roll_RA |  |
| Veto Counter |  |
