| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T73_9000004606_31588cztM0_level2.evt | modeM0/AS1A10_094T73_9000004606_31588cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,392,000 | 97,153,920 |
| Size | 484.8 MB | 92.7 MB |
| Events in quadrant A | 2,576,299 | 674,817 |
| Events in quadrant B | 4,353,961 | 668,536 |
| Events in quadrant C | 3,058,828 | 647,909 |
| Events in quadrant D | 5,070,057 | 601,291 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 1 |
| B | 0 | 11 | 2 |
| C | 0 | 11 | 2 |
| D | 0 | 12 | 3 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11825 | 1011 |
| B | 0 | 18013 | 1822 |
| C | 0 | 13530 | 1112 |
| D | 0 | 20516 | 1929 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 8 |
| B | 0 | 106 | 6 |
| C | 0 | 109 | 7 |
| D | 0 | 112 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5012 | 6 | 0.119713% |
| B | 4952 | 134 | 2.705977% |
| C | 5008 | 72 | 1.437700% |
| D | 4958 | 293 | 5.909641% |

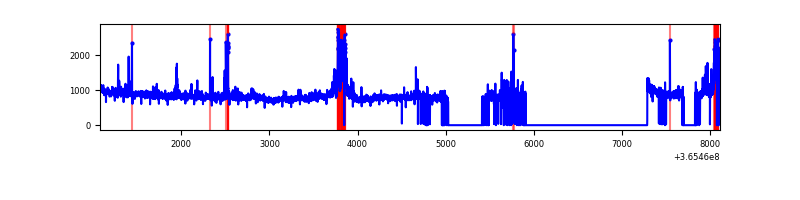

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7029 | 5100 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7017 | 5053 | 67 | 67 | 0.95% | 1.33% |  |
| C | 7032 | 5085 | 3 | 3 | 0.04% | 0.06% |  |
| D | 7030 | 5052 | 288 | 288 | 4.10% | 5.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9934 | 70.5 | 667 | 656 | 131.6 |
| A | 3 | 137 | 6103 | 41.39 | 667 | 656 | 131.6 |
| A | 0 | 226 | 5691 | 38.26 | 667 | 656 | 131.6 |
| B | 6 | 159 | 1392262 | 11756.54 | 651 | 639 | 118.4 |
| B | 4 | 171 | 128666 | 1081.58 | 651 | 639 | 118.4 |
| B | 4 | 80 | 121927 | 1024.65 | 651 | 639 | 118.4 |
| C | 3 | 233 | 349311 | 2375.09 | 640 | 646 | 146.8 |
| C | 14 | 238 | 107099 | 725.15 | 640 | 646 | 146.8 |
| C | 4 | 175 | 37832 | 253.31 | 640 | 646 | 146.8 |
| D | 8 | 195 | 2020982 | 13924.48 | 620 | 604 | 145.1 |
| D | 12 | 233 | 203435 | 1397.91 | 620 | 604 | 145.1 |
| D | 12 | 218 | 184114 | 1264.75 | 620 | 604 | 145.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

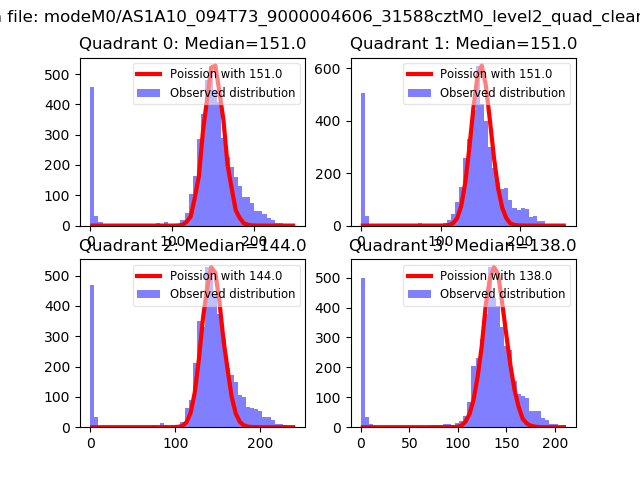

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

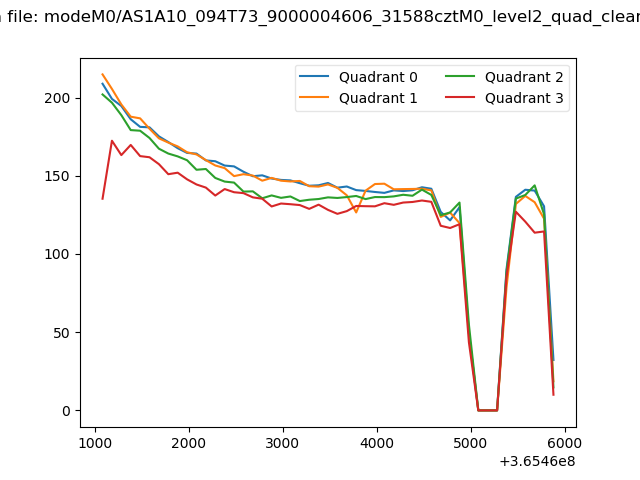

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

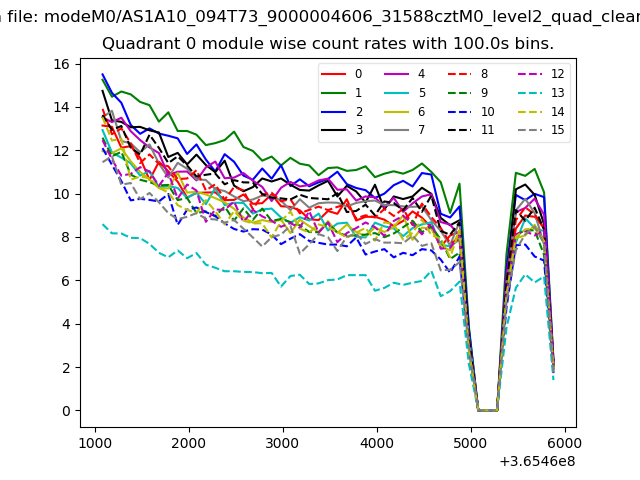

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

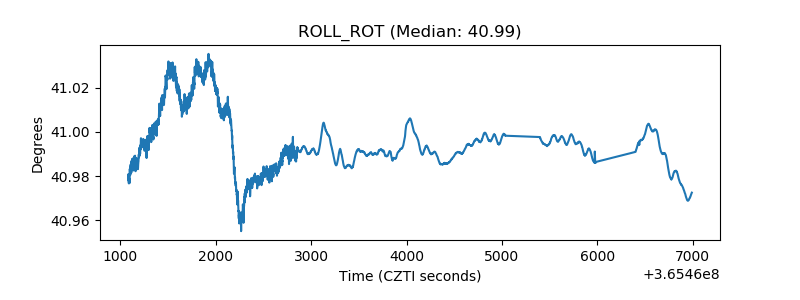

| _ROLL_ROT |  |

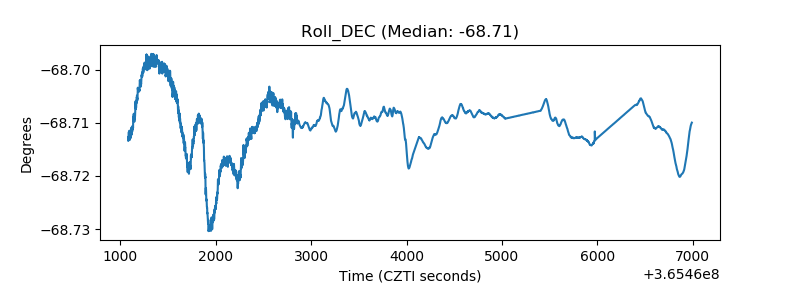

| _Roll_DEC |  |

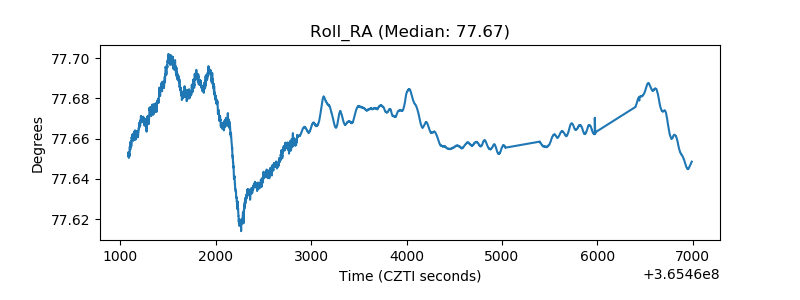

| _Roll_RA |  |

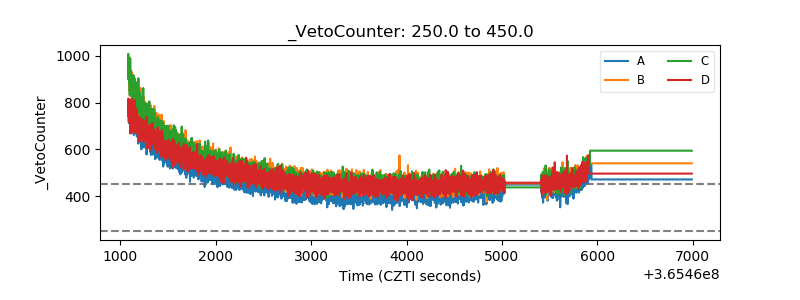

| Veto Counter |  |
