| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_006T05_9000004600_31575cztM0_level2.evt | modeM0/AS1C06_006T05_9000004600_31575cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,822,400 | 71,095,680 |
| Size | 431.8 MB | 67.8 MB |
| Events in quadrant A | 2,306,192 | 466,088 |
| Events in quadrant B | 3,973,217 | 460,110 |
| Events in quadrant C | 2,683,455 | 450,440 |
| Events in quadrant D | 4,416,416 | 430,021 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 9 | 1 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10436 | 279 |
| B | 0 | 15875 | 439 |
| C | 0 | 11305 | 297 |
| D | 0 | 17174 | 518 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 2 |
| B | 0 | 104 | 4 |
| C | 0 | 104 | 2 |
| D | 0 | 104 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4937 | 85 | 1.721693% |
| B | 4930 | 163 | 3.306288% |
| C | 4937 | 153 | 3.099048% |
| D | 4926 | 140 | 2.842063% |

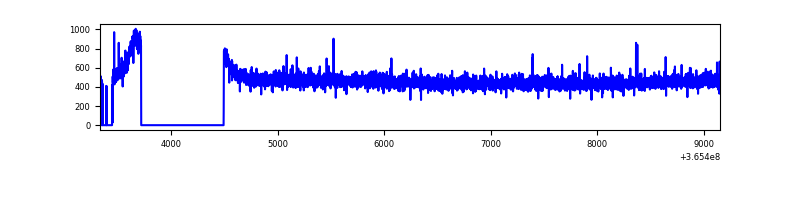

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

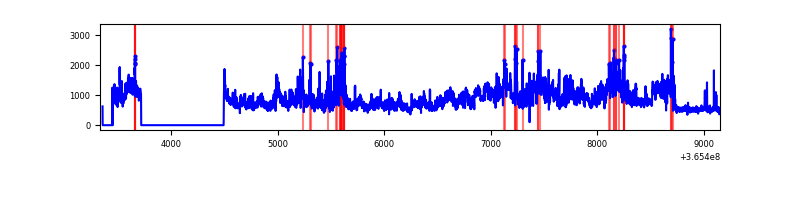

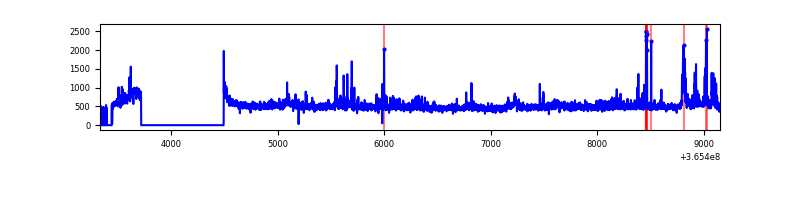

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5810 | 4946 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5819 | 4938 | 11 | 11 | 0.19% | 0.22% |  |
| C | 5819 | 4949 | 11 | 11 | 0.19% | 0.22% |  |
| D | 5795 | 4929 | 46 | 46 | 0.79% | 0.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9431 | 73.26 | 597 | 584 | 120.8 |
| A | 3 | 137 | 5989 | 44.76 | 597 | 584 | 120.8 |
| A | 0 | 226 | 5048 | 36.96 | 597 | 584 | 120.8 |
| B | 6 | 159 | 1338697 | 11821.49 | 586 | 571 | 113.2 |
| B | 4 | 80 | 167540 | 1475.06 | 586 | 571 | 113.2 |
| B | 0 | 245 | 43488 | 379.14 | 586 | 571 | 113.2 |
| C | 3 | 233 | 163602 | 1208.55 | 572 | 576 | 134.9 |
| C | 10 | 22 | 124878 | 921.48 | 572 | 576 | 134.9 |
| C | 14 | 238 | 93797 | 691.07 | 572 | 576 | 134.9 |
| D | 8 | 195 | 1844667 | 13321.21 | 572 | 554 | 138.4 |
| D | 12 | 33 | 202780 | 1460.81 | 572 | 554 | 138.4 |
| D | 12 | 233 | 57819 | 413.66 | 572 | 554 | 138.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

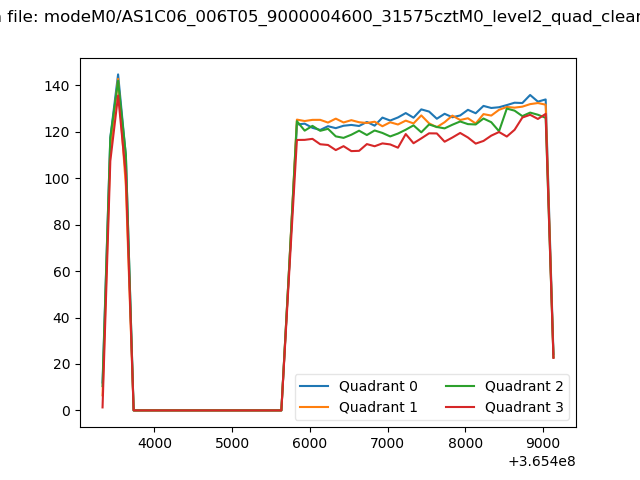

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

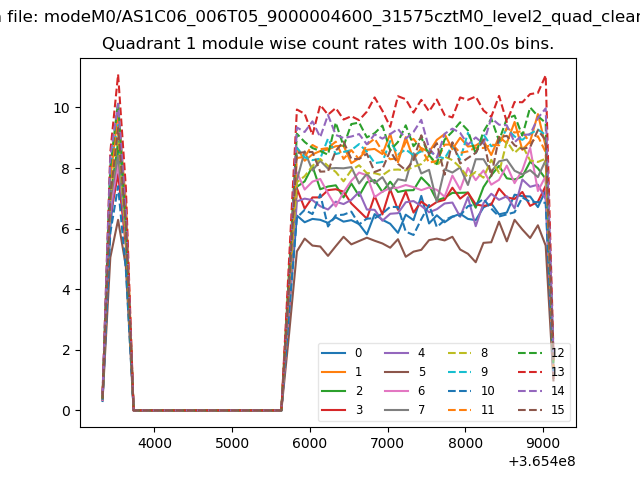

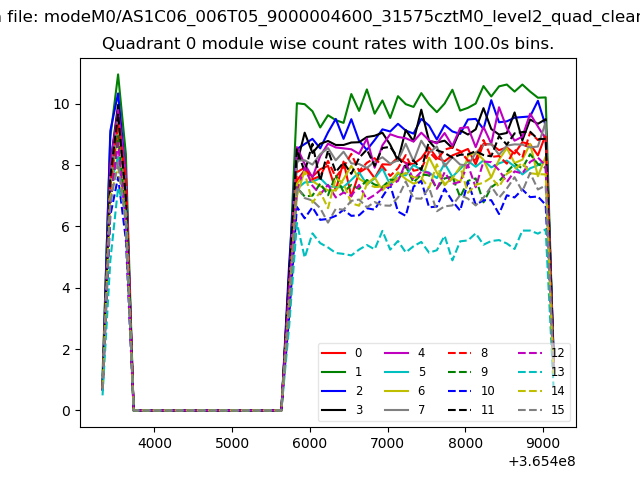

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

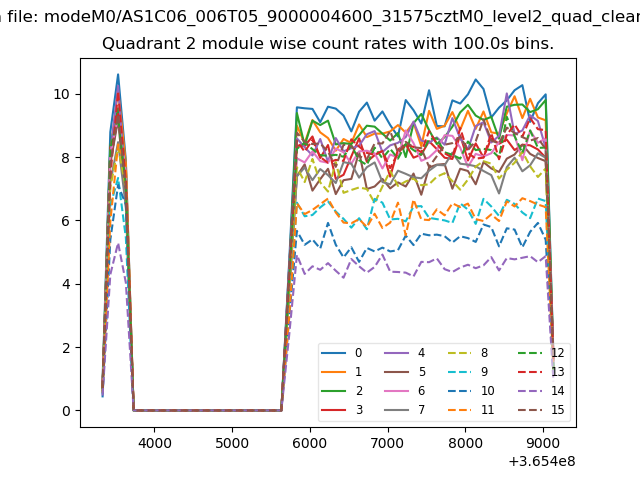

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

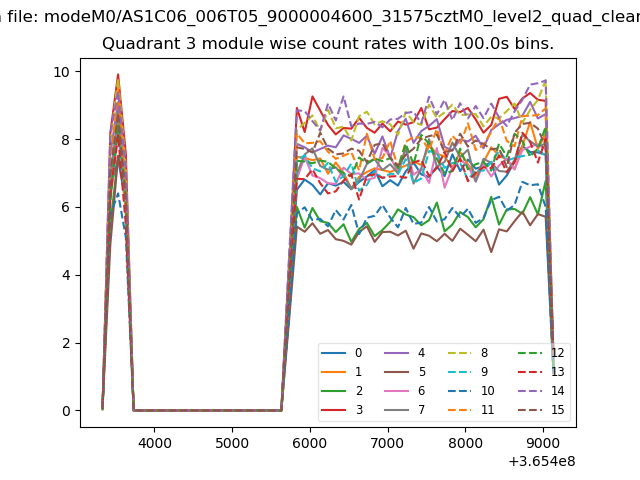

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

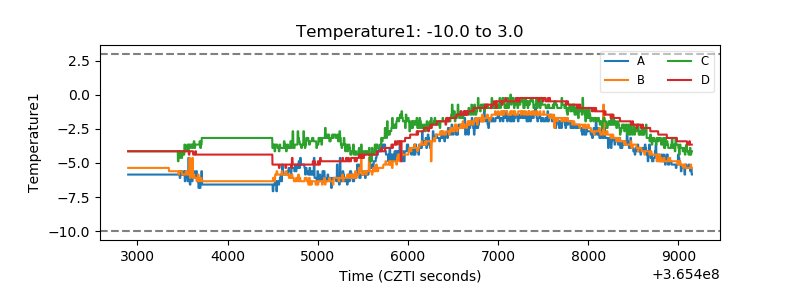

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

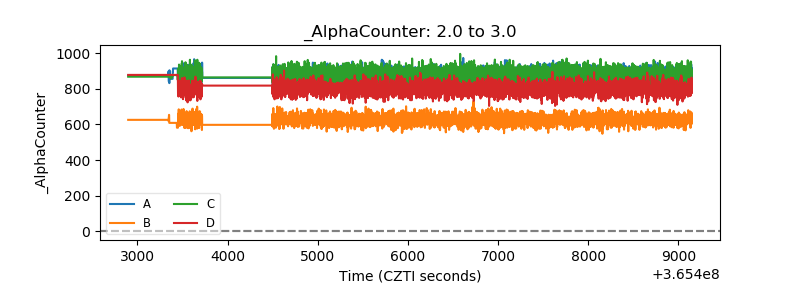

| Alpha Counter |  |

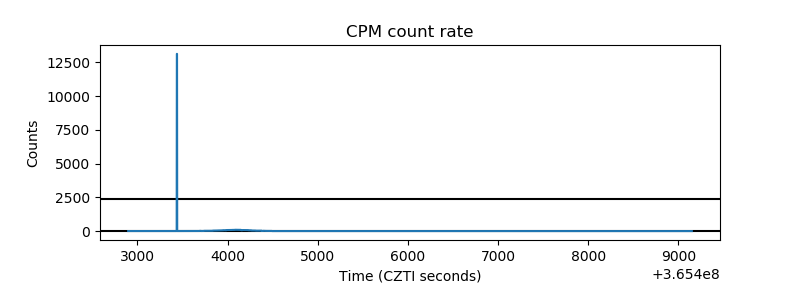

| _CPM_Rate |  |

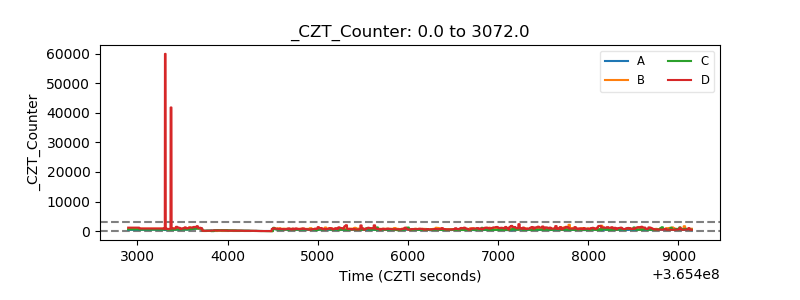

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

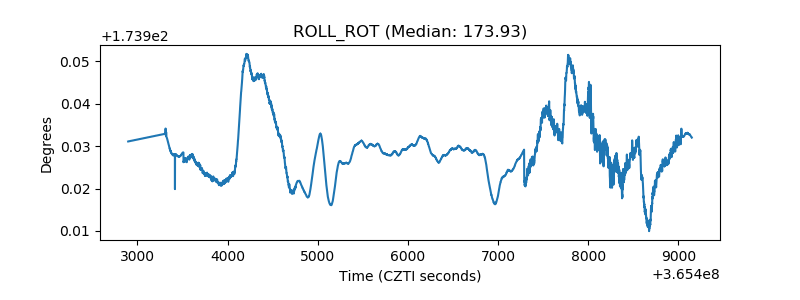

| _ROLL_ROT |  |

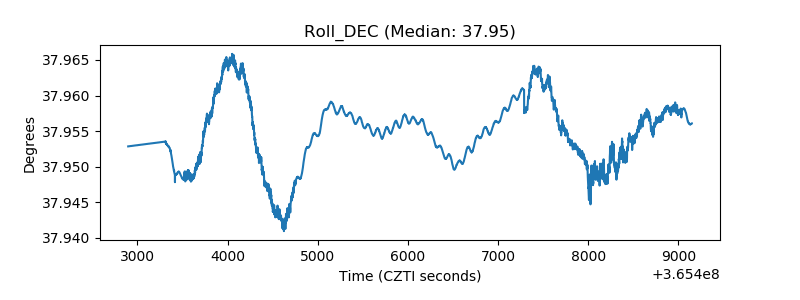

| _Roll_DEC |  |

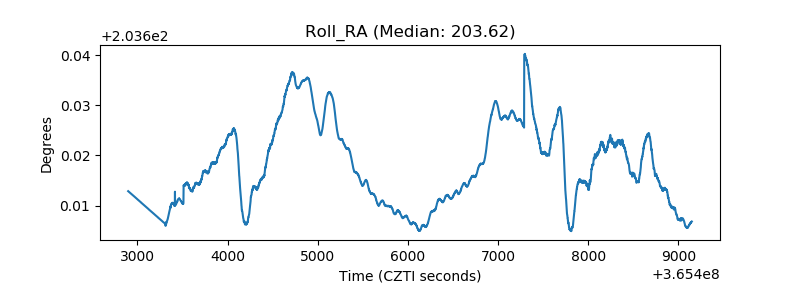

| _Roll_RA |  |

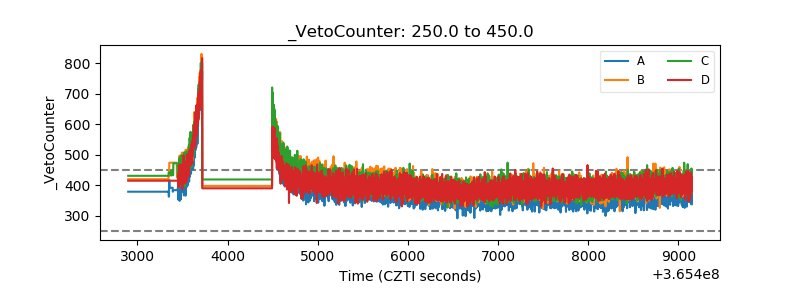

| Veto Counter |  |
