| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T03_9000004610_31596cztM0_level2.evt | modeM0/AS1C06_002T03_9000004610_31596cztM0_level2_quad_clean.evt |
| Size (bytes) | 652,178,880 | 127,468,800 |
| Size | 622.0 MB | 121.6 MB |
| Events in quadrant A | 3,037,661 | 886,894 |
| Events in quadrant B | 6,193,361 | 860,374 |
| Events in quadrant C | 3,902,944 | 855,387 |
| Events in quadrant D | 6,188,289 | 814,237 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13319 | 1 |
| B | 0 | 23212 | 4 |
| C | 0 | 15848 | 1 |
| D | 0 | 22925 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6356 | 25 | 0.393329% |
| B | 6356 | 252 | 3.964758% |
| C | 6356 | 208 | 3.272498% |
| D | 6356 | 405 | 6.371932% |

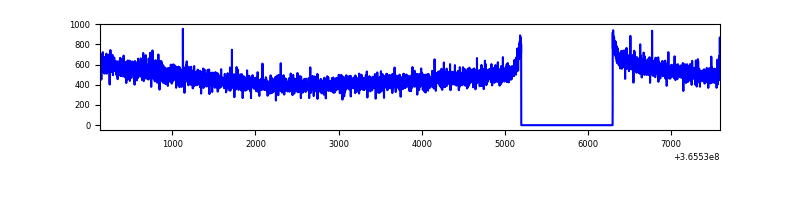

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7456 | 6356 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7456 | 6356 | 40 | 40 | 0.54% | 0.63% |  |
| C | 7456 | 6356 | 42 | 42 | 0.56% | 0.66% |  |
| D | 7456 | 6356 | 329 | 329 | 4.41% | 5.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12002 | 72.07 | 786 | 770 | 155.8 |
| A | 3 | 137 | 7350 | 42.22 | 786 | 770 | 155.8 |
| A | 0 | 226 | 6944 | 39.61 | 786 | 770 | 155.8 |
| B | 6 | 159 | 2088147 | 14530.7 | 773 | 755 | 143.7 |
| B | 12 | 1 | 669272 | 4653.66 | 773 | 755 | 143.7 |
| B | 4 | 80 | 123626 | 855.33 | 773 | 755 | 143.7 |
| C | 3 | 233 | 551318 | 3082.02 | 762 | 766 | 178.6 |
| C | 14 | 238 | 121279 | 674.64 | 762 | 766 | 178.6 |
| C | 4 | 175 | 70758 | 391.82 | 762 | 766 | 178.6 |
| D | 8 | 195 | 2559557 | 14145.61 | 757 | 734 | 180.9 |
| D | 12 | 218 | 259649 | 1431.32 | 757 | 734 | 180.9 |
| D | 12 | 233 | 226526 | 1248.21 | 757 | 734 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

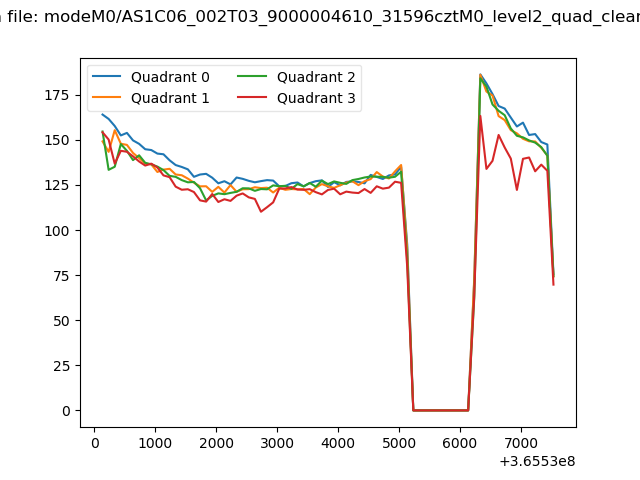

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

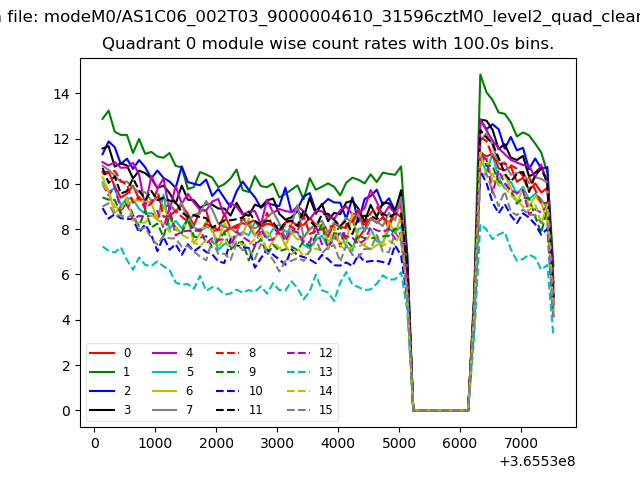

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

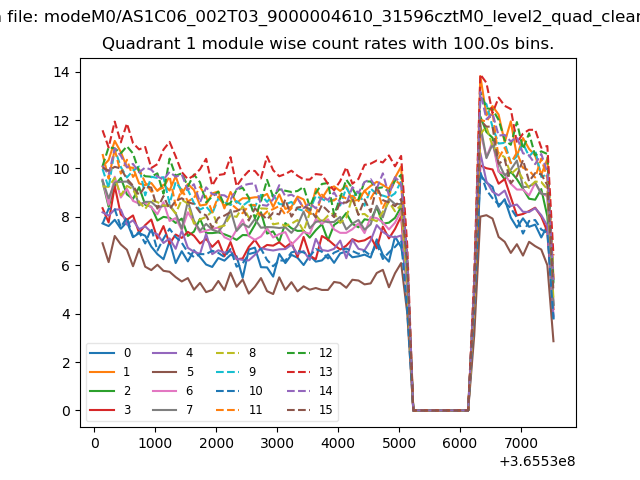

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

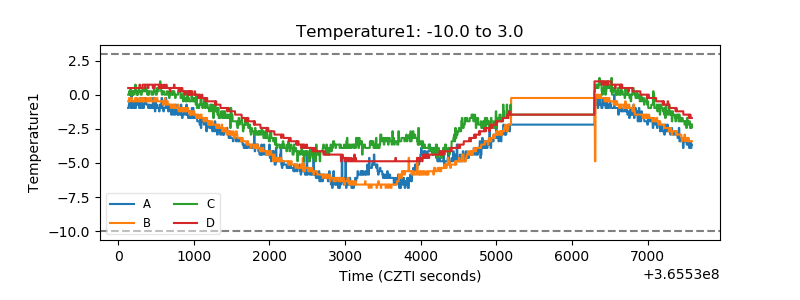

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

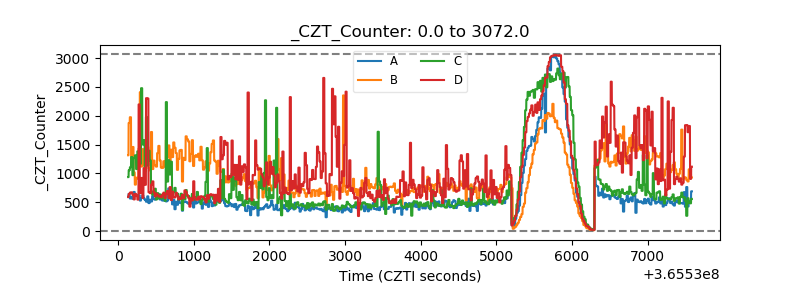

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

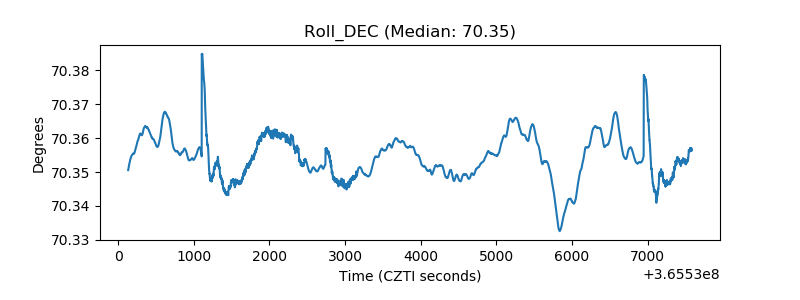

| _Roll_DEC |  |

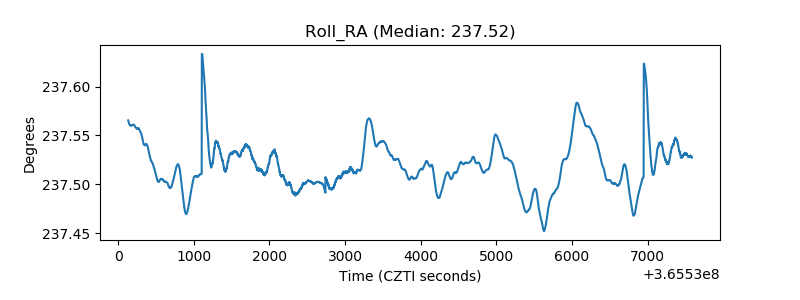

| _Roll_RA |  |
| Veto Counter |  |
