| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T03_9000004610_31599cztM0_level2.evt | modeM0/AS1C06_002T03_9000004610_31599cztM0_level2_quad_clean.evt |
| Size (bytes) | 851,034,240 | 109,022,400 |
| Size | 811.6 MB | 104.0 MB |
| Events in quadrant A | 7,509,865 | 641,977 |
| Events in quadrant B | 4,971,872 | 853,537 |
| Events in quadrant C | 6,551,346 | 681,171 |
| Events in quadrant D | 6,351,015 | 718,580 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26211 | 1 |
| B | 0 | 18984 | 1 |
| C | 0 | 23187 | 1 |
| D | 0 | 23050 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5783 | 2125 | 36.745634% |
| B | 5783 | 172 | 2.974235% |
| C | 5783 | 1790 | 30.952793% |
| D | 5783 | 1087 | 18.796472% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 5783 | 1634 | 1634 | 23.02% | 28.26% |  |
| B | 7098 | 5783 | 32 | 32 | 0.45% | 0.55% |  |
| C | 7097 | 5782 | 1581 | 1581 | 22.28% | 27.34% |  |
| D | 7097 | 5782 | 804 | 804 | 11.33% | 13.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 5304275 | 46457.62 | 571 | 561 | 114.2 |
| A | 13 | 254 | 8883 | 72.9 | 571 | 561 | 114.2 |
| A | 3 | 137 | 5466 | 42.97 | 571 | 561 | 114.2 |
| B | 6 | 159 | 1702814 | 12762.67 | 722 | 706 | 133.4 |
| B | 4 | 80 | 163589 | 1221.32 | 722 | 706 | 133.4 |
| B | 0 | 190 | 67791 | 503.01 | 722 | 706 | 133.4 |
| C | 3 | 233 | 4096847 | 29992.35 | 588 | 592 | 136.6 |
| C | 14 | 238 | 99050 | 720.9 | 588 | 592 | 136.6 |
| C | 4 | 175 | 19273 | 136.78 | 588 | 592 | 136.6 |
| D | 12 | 2 | 1968086 | 12870.26 | 640 | 623 | 152.9 |
| D | 8 | 195 | 684803 | 4475.6 | 640 | 623 | 152.9 |
| D | 11 | 176 | 498532 | 3257.1 | 640 | 623 | 152.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

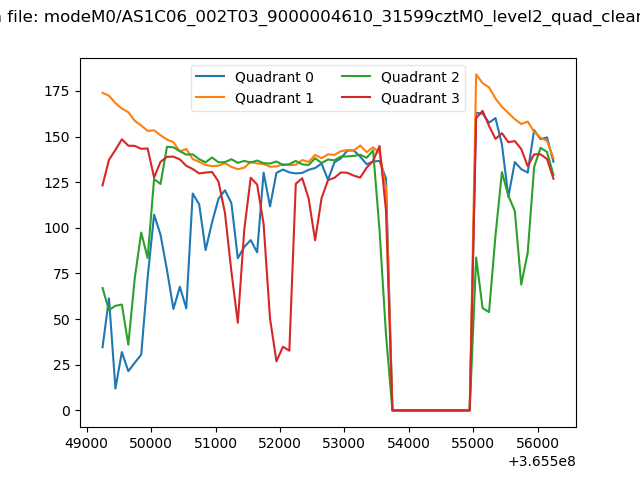

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

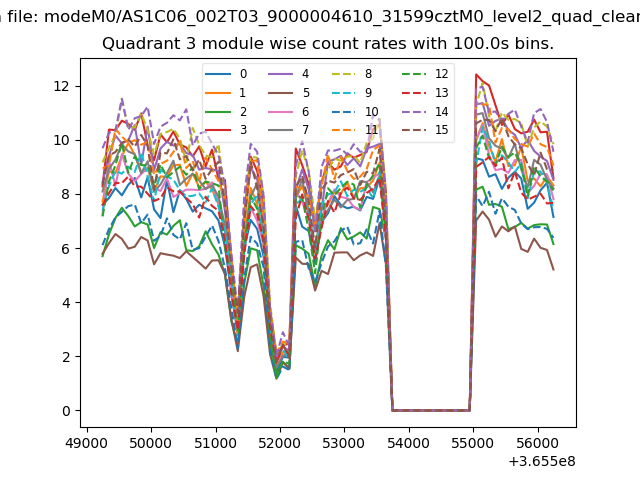

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

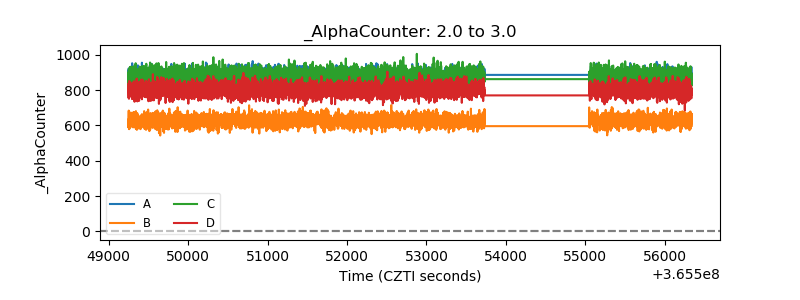

| Alpha Counter |  |

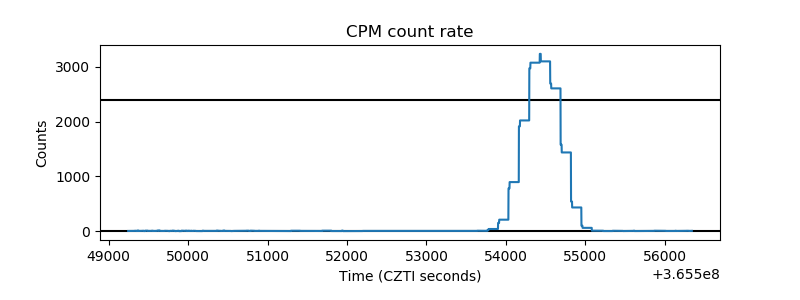

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

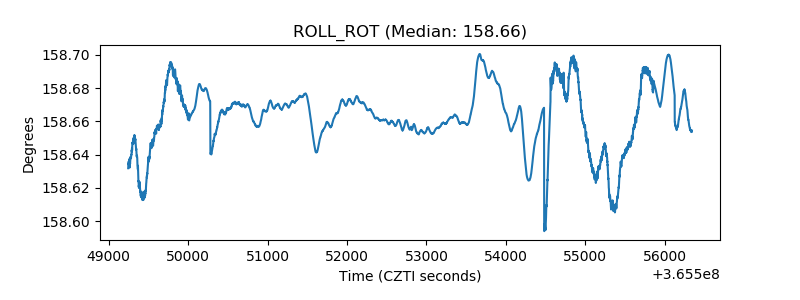

| _ROLL_ROT |  |

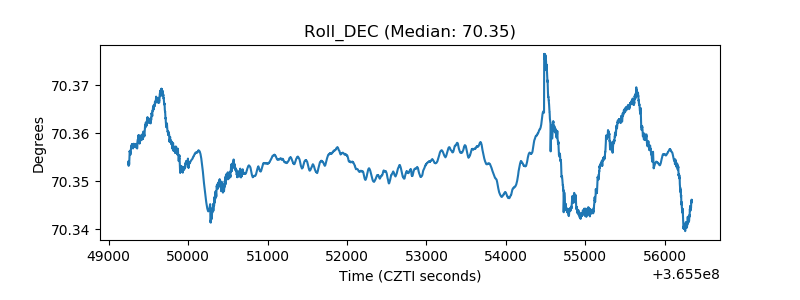

| _Roll_DEC |  |

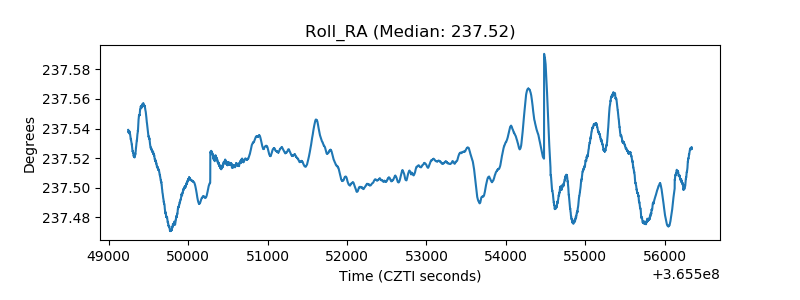

| _Roll_RA |  |
| Veto Counter |  |
