| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_002T03_9000004610_31600cztM0_level2.evt | modeM0/AS1C06_002T03_9000004610_31600cztM0_level2_quad_clean.evt |
| Size (bytes) | 743,958,720 | 120,493,440 |
| Size | 709.5 MB | 114.9 MB |
| Events in quadrant A | 5,076,686 | 793,947 |
| Events in quadrant B | 5,237,862 | 862,247 |
| Events in quadrant C | 6,195,590 | 774,458 |
| Events in quadrant D | 5,611,841 | 794,224 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19147 | 4 |
| B | 0 | 20004 | 1 |
| C | 0 | 22398 | 1 |
| D | 0 | 20803 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6068 | 889 | 14.650626% |
| B | 6068 | 302 | 4.976928% |
| C | 6068 | 1280 | 21.094265% |
| D | 6068 | 356 | 5.866842% |

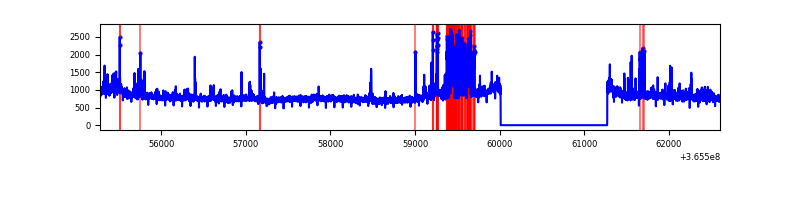

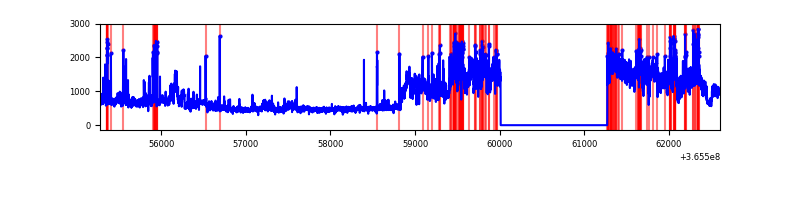

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7327 | 6067 | 717 | 717 | 9.79% | 11.82% |  |
| B | 7327 | 6067 | 122 | 122 | 1.67% | 2.01% |  |
| C | 7327 | 6067 | 879 | 879 | 12.00% | 14.49% |  |
| D | 7327 | 6067 | 168 | 168 | 2.29% | 2.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2409774 | 17593.12 | 690 | 676 | 136.9 |
| A | 13 | 254 | 10835 | 74.19 | 690 | 676 | 136.9 |
| A | 3 | 137 | 6298 | 41.06 | 690 | 676 | 136.9 |
| B | 6 | 159 | 1721886 | 12586.42 | 739 | 722 | 136.7 |
| B | 5 | 172 | 302395 | 2206.05 | 739 | 722 | 136.7 |
| B | 4 | 80 | 99834 | 724.78 | 739 | 722 | 136.7 |
| C | 3 | 233 | 3370731 | 21537.74 | 673 | 677 | 156.5 |
| C | 14 | 238 | 122732 | 780.04 | 673 | 677 | 156.5 |
| C | 4 | 175 | 38197 | 239.79 | 673 | 677 | 156.5 |
| D | 8 | 195 | 2138639 | 12588.15 | 707 | 685 | 169.8 |
| D | 12 | 218 | 282557 | 1659.65 | 707 | 685 | 169.8 |
| D | 10 | 203 | 178851 | 1049.03 | 707 | 685 | 169.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

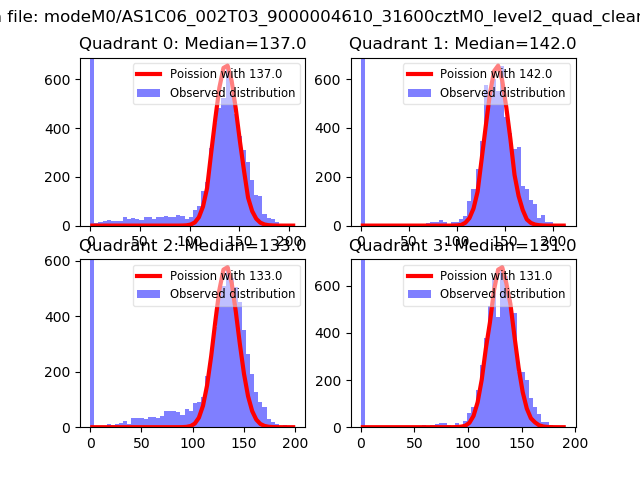

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

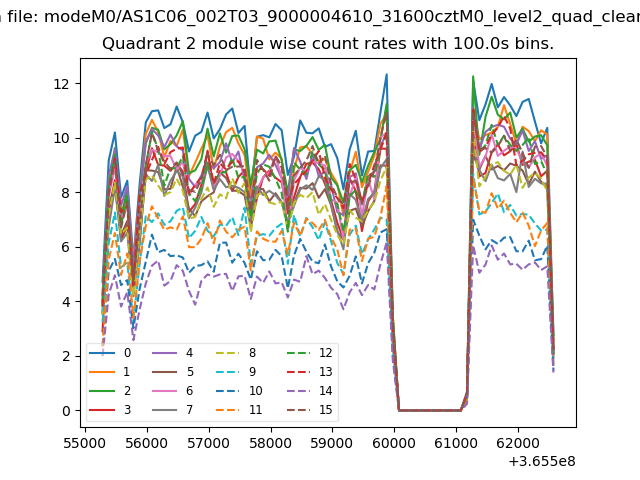

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

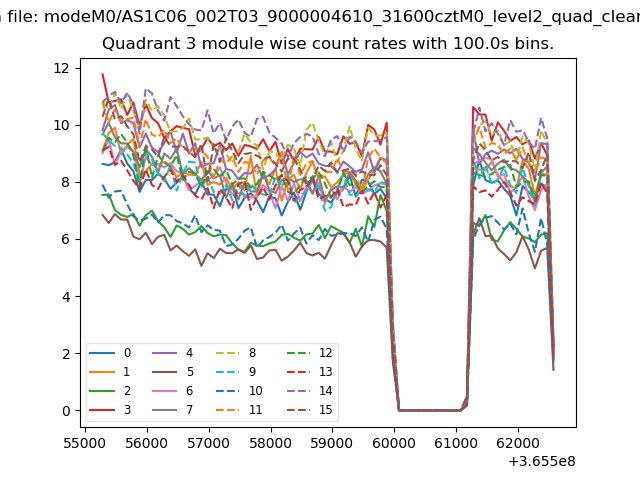

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

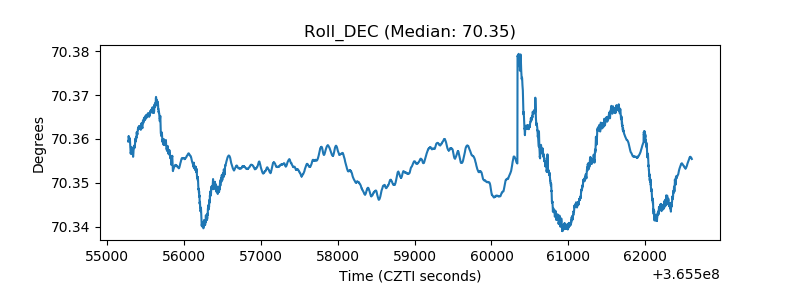

| _Roll_DEC |  |
| _Roll_RA |  |

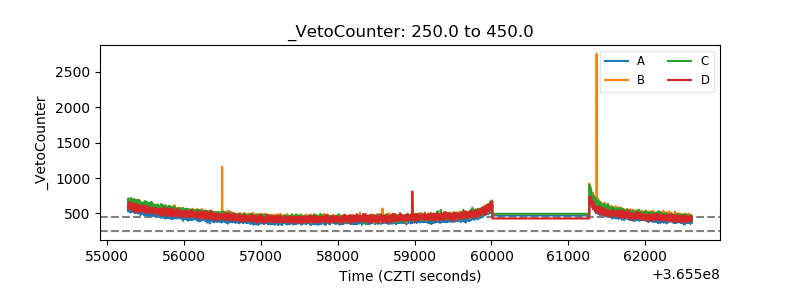

| Veto Counter |  |
