| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T01_9000004620_31634cztM0_level2.evt | modeM0/AS1A10_123T01_9000004620_31634cztM0_level2_quad_clean.evt |
| Size (bytes) | 755,395,200 | 89,844,480 |
| Size | 720.4 MB | 85.7 MB |
| Events in quadrant A | 3,638,586 | 581,362 |
| Events in quadrant B | 6,263,984 | 573,000 |
| Events in quadrant C | 3,870,816 | 558,356 |
| Events in quadrant D | 8,590,357 | 478,639 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15695 | 1 |
| B | 0 | 24204 | 1 |
| C | 0 | 16108 | 1 |
| D | 0 | 31055 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7603 | 161 | 2.117585% |
| B | 7603 | 368 | 4.840195% |
| C | 7604 | 215 | 2.827459% |
| D | 7604 | 1149 | 15.110468% |

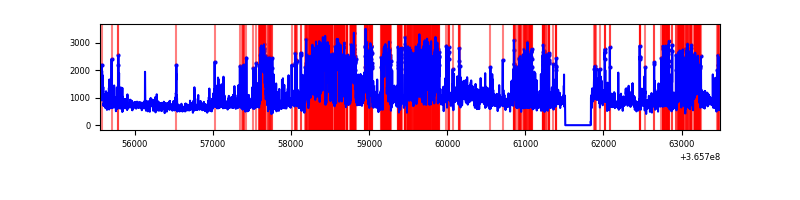

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

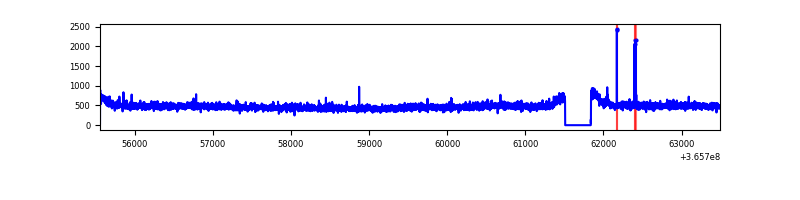

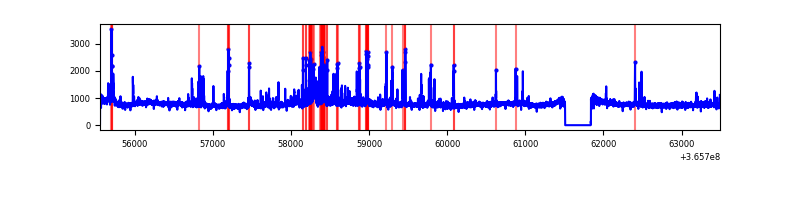

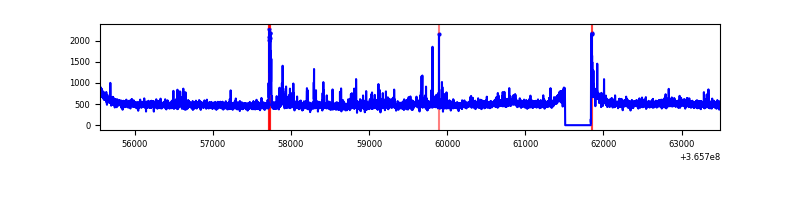

| A | 7933 | 7604 | 5 | 5 | 0.06% | 0.07% |  |
| B | 7933 | 7604 | 79 | 79 | 1.00% | 1.04% |  |
| C | 7934 | 7605 | 9 | 9 | 0.11% | 0.12% |  |
| D | 7934 | 7605 | 939 | 939 | 11.84% | 12.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 30361 | 154.72 | 934 | 909 | 190.4 |
| A | 13 | 254 | 14611 | 71.98 | 934 | 909 | 190.4 |
| A | 3 | 137 | 9578 | 45.54 | 934 | 909 | 190.4 |
| B | 6 | 159 | 2039677 | 11486.7 | 915 | 891 | 177.5 |
| B | 5 | 172 | 218493 | 1225.99 | 915 | 891 | 177.5 |
| B | 10 | 245 | 181010 | 1014.81 | 915 | 891 | 177.5 |
| C | 14 | 238 | 155851 | 739.3 | 888 | 893 | 209.6 |
| C | 3 | 233 | 154573 | 733.2 | 888 | 893 | 209.6 |
| C | 0 | 10 | 23626 | 108.46 | 888 | 893 | 209.6 |
| D | 8 | 195 | 2258026 | 11098.71 | 846 | 820 | 203.4 |
| D | 11 | 176 | 1941148 | 9540.62 | 846 | 820 | 203.4 |
| D | 13 | 249 | 912302 | 4481.77 | 846 | 820 | 203.4 |

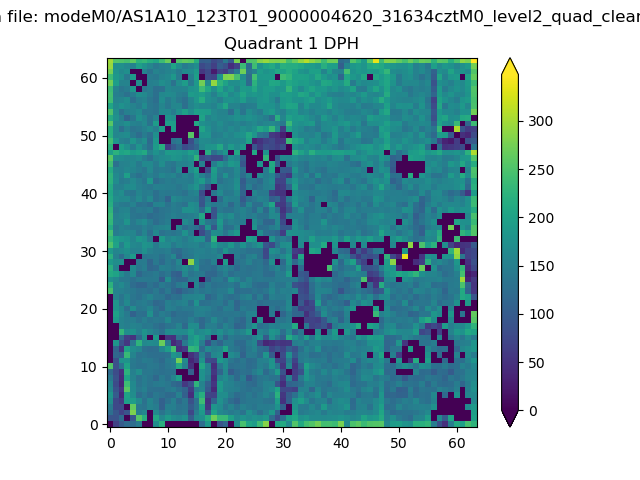

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

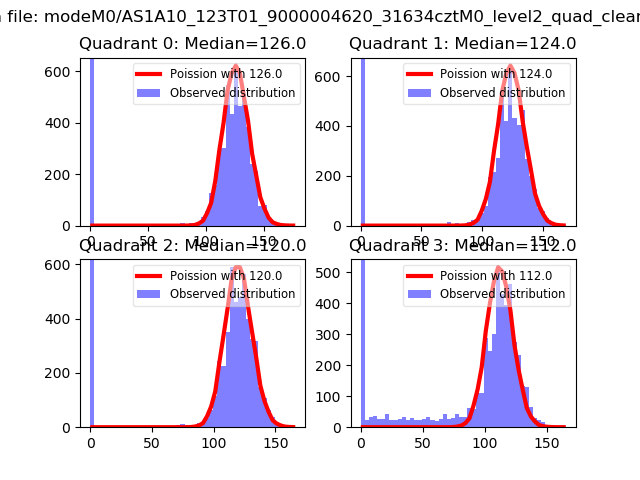

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

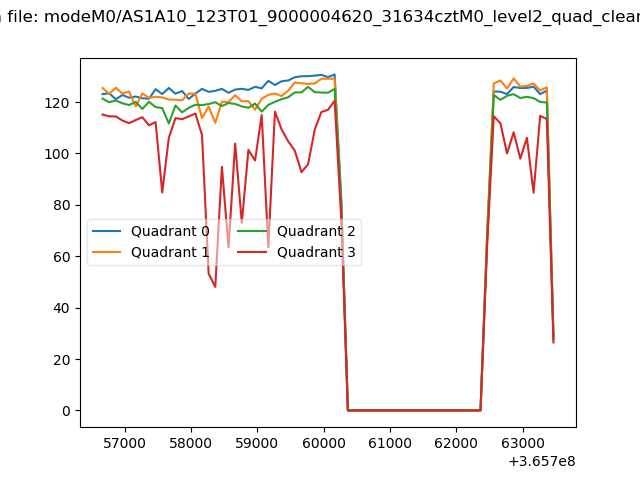

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

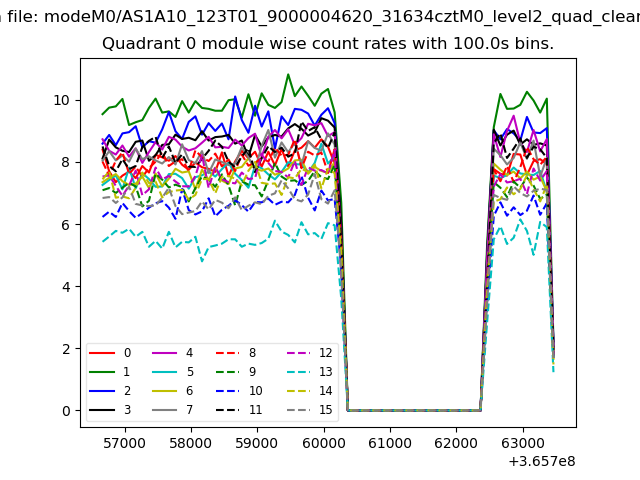

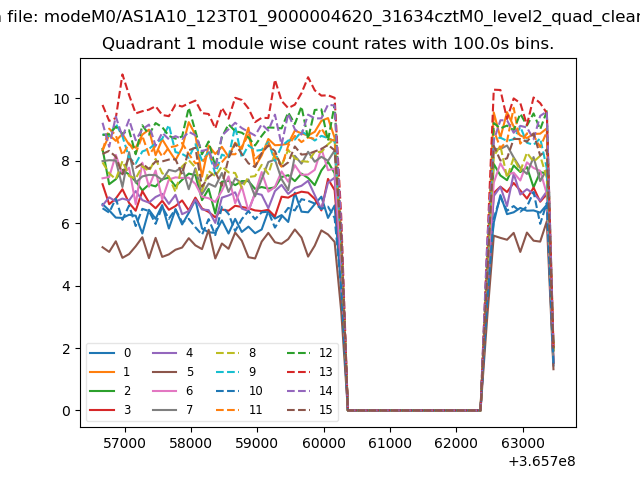

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

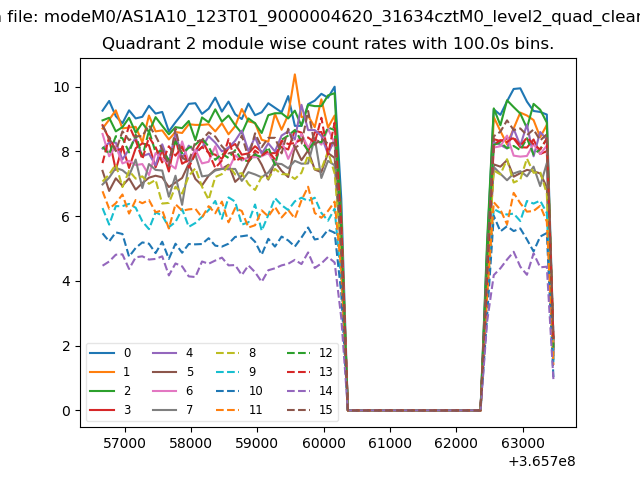

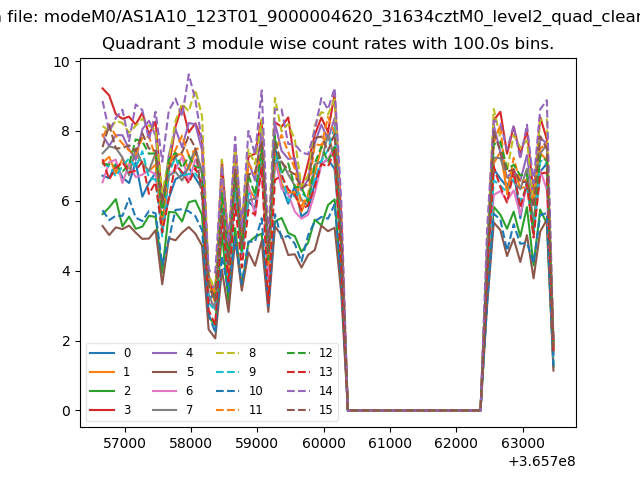

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

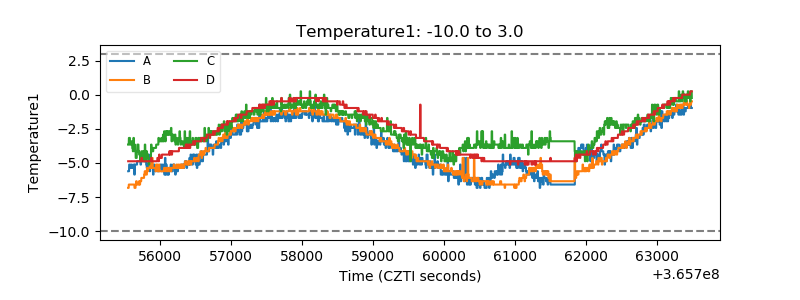

| Temperature 1 |  |

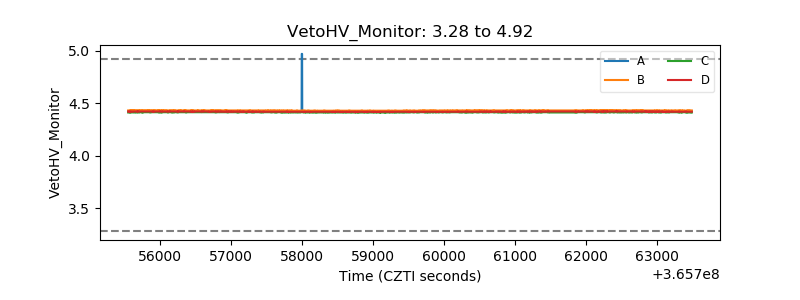

| Veto HV Monitor |  |
| Veto LLD |  |

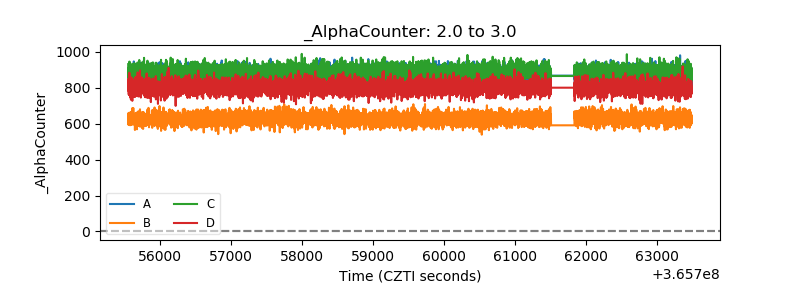

| Alpha Counter |  |

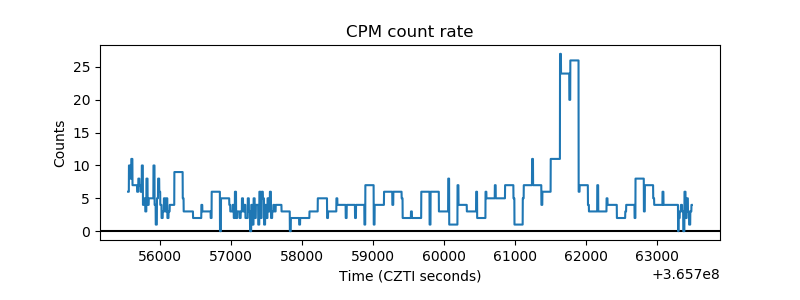

| _CPM_Rate |  |

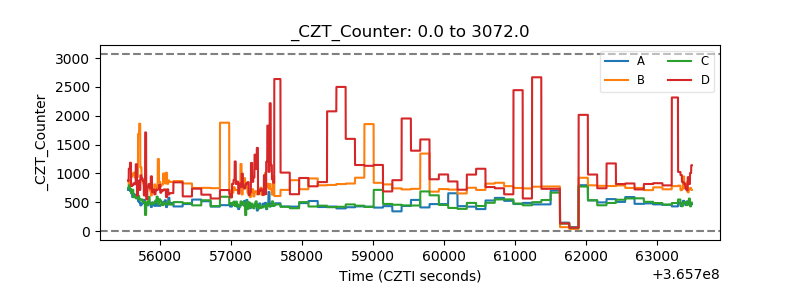

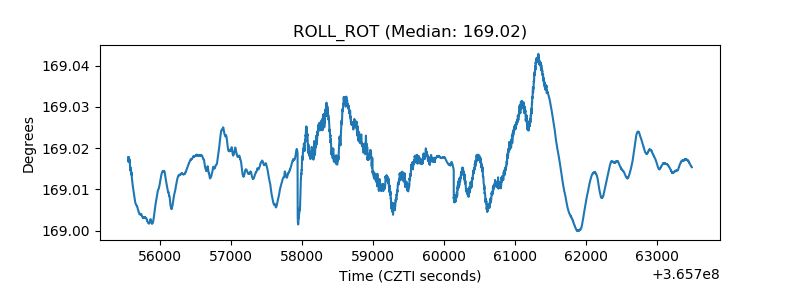

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

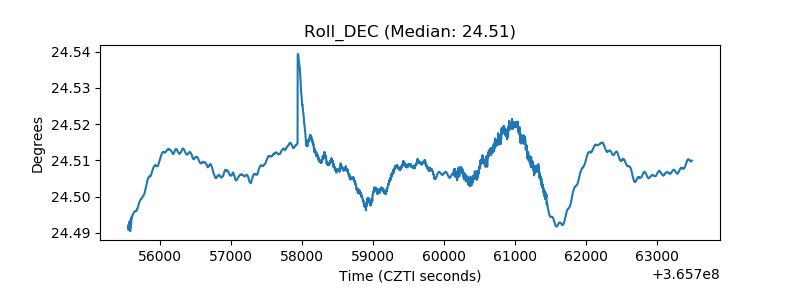

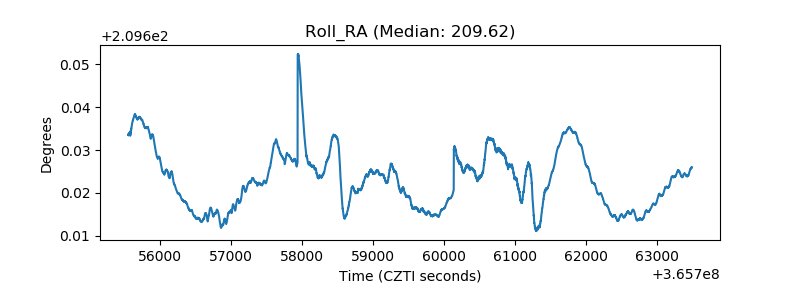

| _Roll_DEC |  |
| _Roll_RA |  |

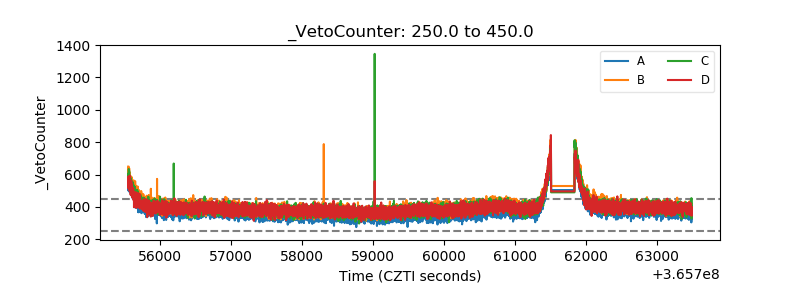

| Veto Counter |  |
