| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C06_010T02_9000004618_31613cztM0_level2.evt | modeM0/AS1C06_010T02_9000004618_31613cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,181,120 | 140,192,640 |
| Size | 519.9 MB | 133.7 MB |
| Events in quadrant A | 3,141,029 | 963,396 |
| Events in quadrant B | 5,377,846 | 975,089 |
| Events in quadrant C | 3,420,189 | 961,290 |
| Events in quadrant D | 4,149,604 | 911,303 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13387 | 2 |
| B | 0 | 20670 | 2 |
| C | 0 | 14266 | 2 |
| D | 0 | 16631 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6239 | 36 | 0.577016% |
| B | 6239 | 144 | 2.308062% |
| C | 6239 | 141 | 2.259978% |
| D | 6239 | 205 | 3.285783% |

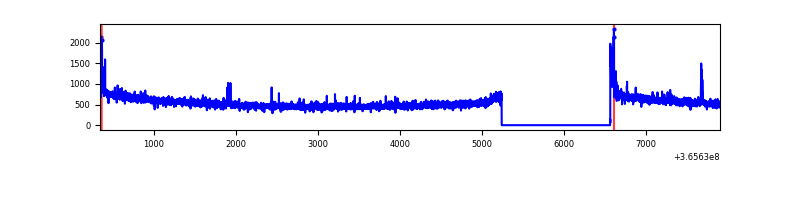

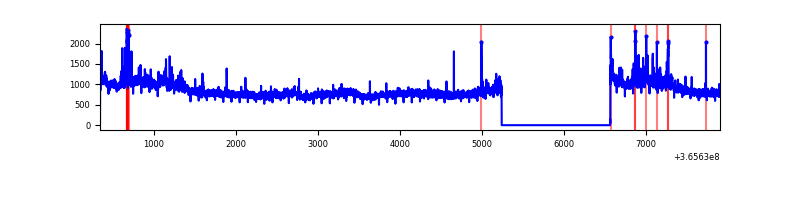

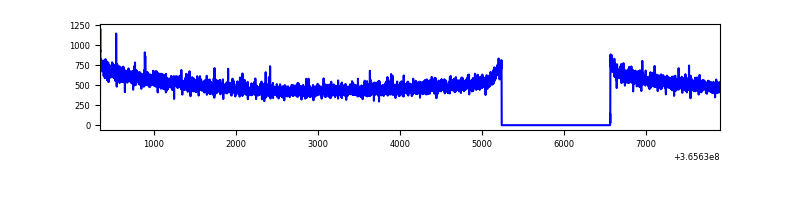

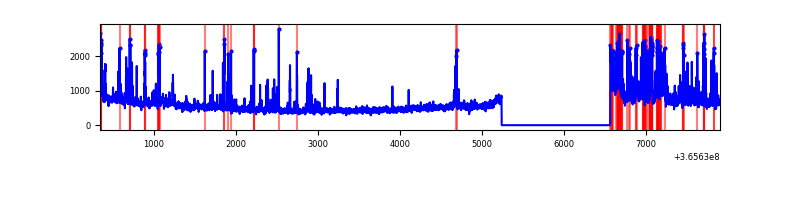

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6240 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7564 | 6240 | 18 | 18 | 0.24% | 0.29% |  |
| C | 7564 | 6240 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7564 | 6240 | 134 | 134 | 1.77% | 2.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 12780 | 74.68 | 812 | 798 | 160.4 |
| A | 3 | 137 | 7263 | 40.29 | 812 | 798 | 160.4 |
| A | 0 | 226 | 7082 | 39.17 | 812 | 798 | 160.4 |
| B | 6 | 159 | 1897338 | 12714.94 | 816 | 797 | 149.2 |
| B | 0 | 182 | 52500 | 346.63 | 816 | 797 | 149.2 |
| B | 5 | 172 | 48239 | 318.06 | 816 | 797 | 149.2 |
| C | 14 | 238 | 135732 | 733.47 | 800 | 807 | 184.0 |
| C | 0 | 10 | 64394 | 345.67 | 800 | 807 | 184.0 |
| C | 3 | 233 | 49627 | 265.39 | 800 | 807 | 184.0 |
| D | 10 | 199 | 376840 | 2045.46 | 787 | 771 | 183.9 |
| D | 8 | 195 | 277345 | 1504.3 | 787 | 771 | 183.9 |
| D | 12 | 218 | 151526 | 819.97 | 787 | 771 | 183.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

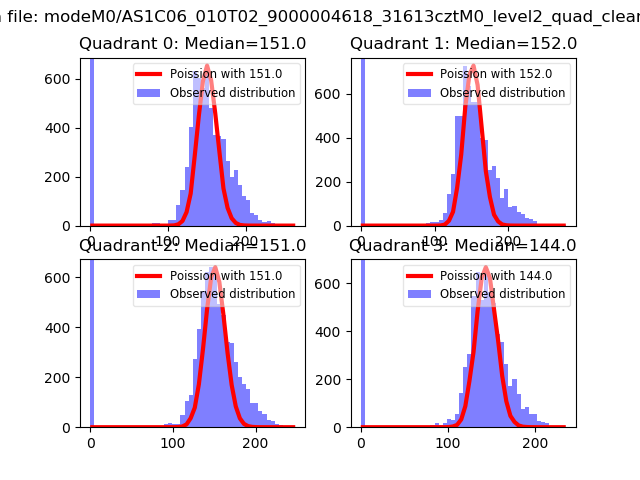

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

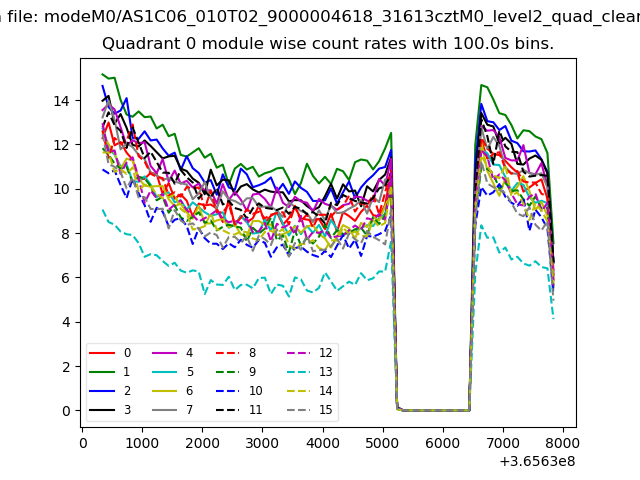

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

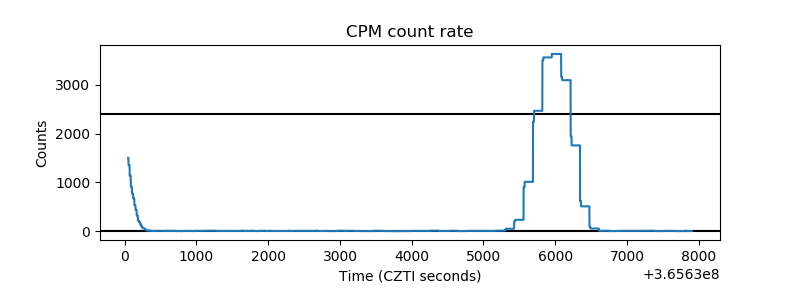

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

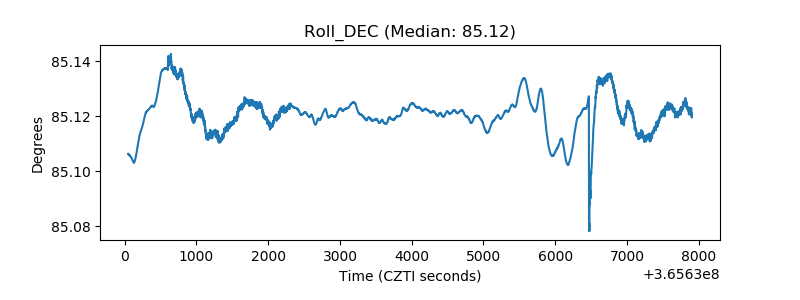

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
