| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_035T01_9000004622_31643cztM0_level2.evt | modeM0/AS1T04_035T01_9000004622_31643cztM0_level2_quad_clean.evt |
| Size (bytes) | 551,511,360 | 90,149,760 |
| Size | 526.0 MB | 86.0 MB |
| Events in quadrant A | 3,368,263 | 597,676 |
| Events in quadrant B | 5,251,145 | 593,743 |
| Events in quadrant C | 3,362,386 | 575,274 |
| Events in quadrant D | 4,319,024 | 548,371 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13743 | 1 |
| B | 0 | 19650 | 3 |
| C | 0 | 13493 | 1 |
| D | 0 | 16976 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5934 | 76 | 1.280755% |
| B | 5934 | 270 | 4.550051% |
| C | 5934 | 204 | 3.437816% |
| D | 5934 | 124 | 2.089653% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7264 | 5935 | 34 | 34 | 0.47% | 0.57% |  |
| B | 7264 | 5935 | 129 | 129 | 1.78% | 2.17% |  |
| C | 7264 | 5935 | 65 | 65 | 0.89% | 1.10% |  |
| D | 7264 | 5935 | 70 | 70 | 0.96% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 370645 | 2439.29 | 764 | 752 | 151.6 |
| A | 14 | 238 | 32151 | 207.06 | 764 | 752 | 151.6 |
| A | 13 | 254 | 11748 | 72.51 | 764 | 752 | 151.6 |
| B | 6 | 159 | 1730454 | 12281.47 | 756 | 739 | 140.8 |
| B | 5 | 172 | 285223 | 2019.92 | 756 | 739 | 140.8 |
| B | 10 | 245 | 133503 | 942.66 | 756 | 739 | 140.8 |
| C | 0 | 10 | 205264 | 1206.57 | 727 | 732 | 169.5 |
| C | 14 | 238 | 142545 | 836.58 | 727 | 732 | 169.5 |
| C | 3 | 233 | 86486 | 505.88 | 727 | 732 | 169.5 |
| D | 8 | 195 | 1033689 | 6077.8 | 722 | 705 | 170.0 |
| D | 11 | 176 | 251940 | 1478.2 | 722 | 705 | 170.0 |
| D | 10 | 203 | 100782 | 588.83 | 722 | 705 | 170.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

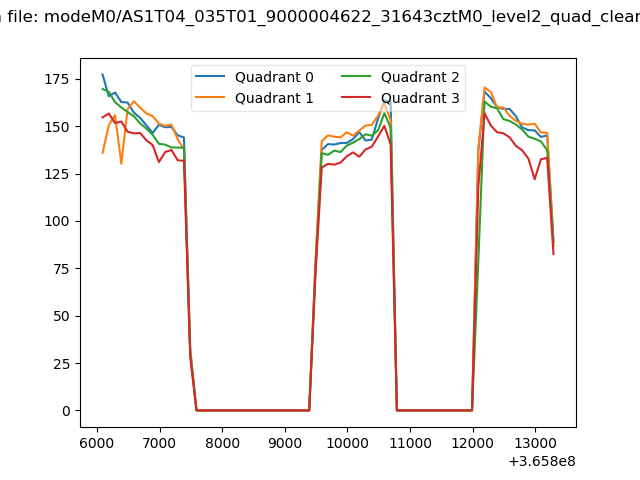

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

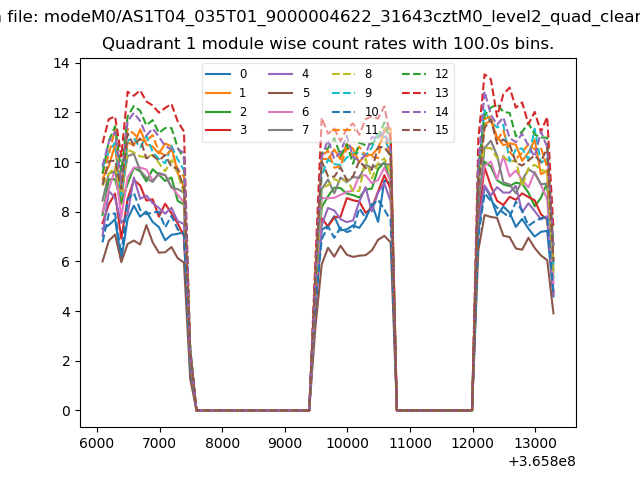

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

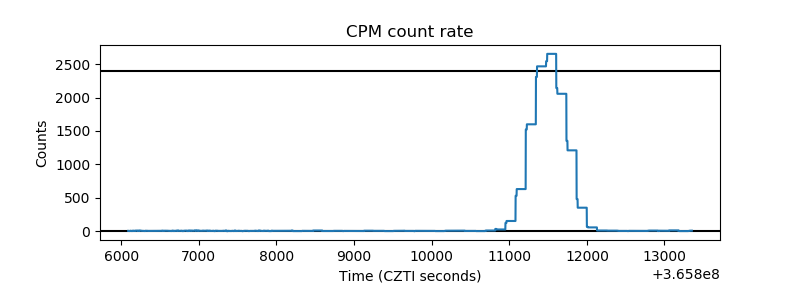

| _CPM_Rate |  |

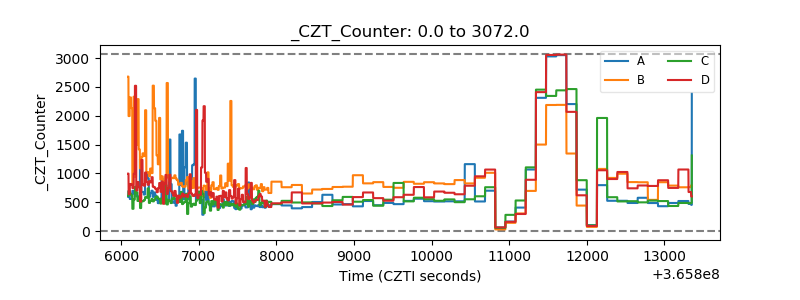

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

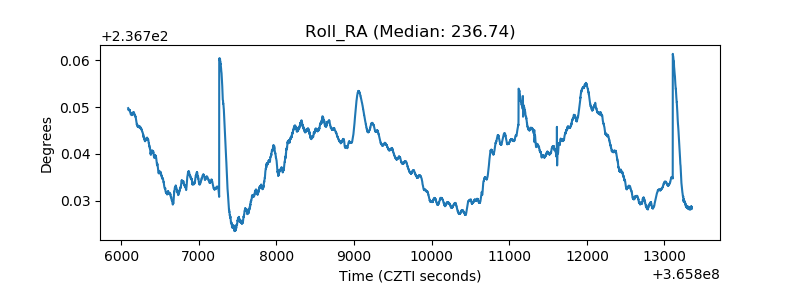

| _Roll_RA |  |
| Veto Counter |  |
