| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_035T01_9000004622_31644cztM0_level2.evt | modeM0/AS1T04_035T01_9000004622_31644cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,805,120 | 88,044,480 |
| Size | 586.3 MB | 84.0 MB |
| Events in quadrant A | 4,683,238 | 559,968 |
| Events in quadrant B | 5,231,637 | 578,440 |
| Events in quadrant C | 3,582,303 | 549,840 |
| Events in quadrant D | 4,686,199 | 527,916 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17945 | 5 |
| B | 0 | 20070 | 2 |
| C | 0 | 14513 | 2 |
| D | 0 | 18433 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6450 | 519 | 8.046512% |
| B | 6450 | 152 | 2.356589% |
| C | 6450 | 206 | 3.193798% |
| D | 6450 | 154 | 2.387597% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6451 | 385 | 385 | 5.05% | 5.97% |  |
| B | 7620 | 6451 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7620 | 6451 | 80 | 80 | 1.05% | 1.24% |  |
| D | 7620 | 6451 | 68 | 68 | 0.89% | 1.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1587796 | 10022.72 | 794 | 779 | 158.3 |
| A | 14 | 238 | 22632 | 138.01 | 794 | 779 | 158.3 |
| A | 13 | 254 | 11741 | 69.23 | 794 | 779 | 158.3 |
| B | 6 | 159 | 1846045 | 11909.13 | 816 | 796 | 154.9 |
| B | 10 | 245 | 30648 | 192.66 | 816 | 796 | 154.9 |
| B | 0 | 182 | 30006 | 188.52 | 816 | 796 | 154.9 |
| C | 0 | 10 | 323996 | 1788.32 | 773 | 777 | 180.7 |
| C | 14 | 238 | 130834 | 719.58 | 773 | 777 | 180.7 |
| C | 4 | 175 | 39806 | 215.94 | 773 | 777 | 180.7 |
| D | 8 | 195 | 1386422 | 7608.03 | 773 | 753 | 182.1 |
| D | 11 | 176 | 129535 | 707.08 | 773 | 753 | 182.1 |
| D | 13 | 249 | 83345 | 453.47 | 773 | 753 | 182.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

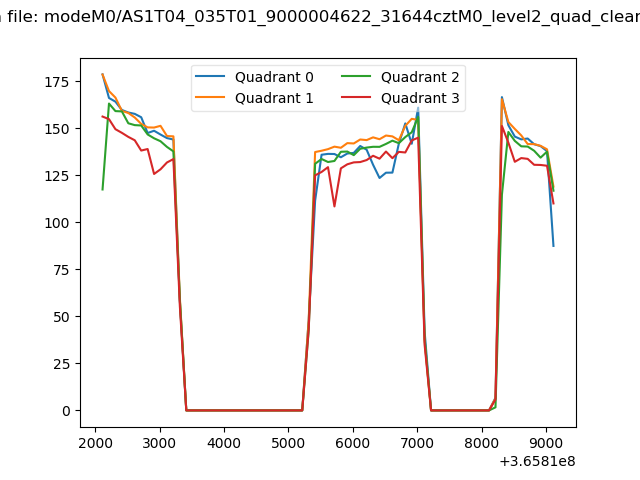

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

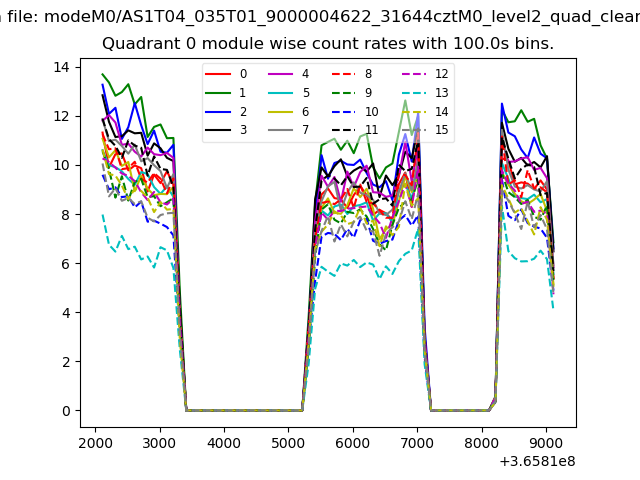

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
