| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004626_31654cztM0_level2.evt | modeM0/AS1A10_056T01_9000004626_31654cztM0_level2_quad_clean.evt |
| Size (bytes) | 349,663,680 | 36,308,160 |
| Size | 333.5 MB | 34.6 MB |
| Events in quadrant A | 4,465,885 | 156,301 |
| Events in quadrant B | 2,479,953 | 252,072 |
| Events in quadrant C | 1,713,244 | 246,258 |
| Events in quadrant D | 1,738,183 | 242,505 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15276 | 7 |
| B | 0 | 9460 | 1 |
| C | 0 | 7061 | 1 |
| D | 0 | 7144 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2825 | 1518 | 53.734513% |
| B | 2825 | 117 | 4.141593% |
| C | 2825 | 142 | 5.026549% |
| D | 2825 | 53 | 1.876106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3975 | 2826 | 999 | 999 | 25.13% | 35.35% |  |
| B | 3975 | 2826 | 14 | 14 | 0.35% | 0.50% |  |
| C | 3975 | 2826 | 44 | 44 | 1.11% | 1.56% |  |
| D | 3975 | 2826 | 8 | 8 | 0.20% | 0.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 3314082 | 55366.65 | 297 | 292 | 59.9 |
| A | 13 | 254 | 4378 | 68.27 | 297 | 292 | 59.9 |
| A | 3 | 137 | 2897 | 43.52 | 297 | 292 | 59.9 |
| B | 6 | 159 | 778067 | 10631.33 | 382 | 373 | 73.2 |
| B | 10 | 245 | 164560 | 2244.49 | 382 | 373 | 73.2 |
| B | 0 | 190 | 10795 | 142.47 | 382 | 373 | 73.2 |
| C | 0 | 10 | 157112 | 1828.23 | 364 | 367 | 85.7 |
| C | 14 | 238 | 60271 | 698.7 | 364 | 367 | 85.7 |
| C | 3 | 233 | 39611 | 457.73 | 364 | 367 | 85.7 |
| D | 8 | 195 | 261800 | 2938.55 | 374 | 363 | 89.0 |
| D | 12 | 2 | 37550 | 417.98 | 374 | 363 | 89.0 |
| D | 2 | 234 | 13652 | 149.37 | 374 | 363 | 89.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

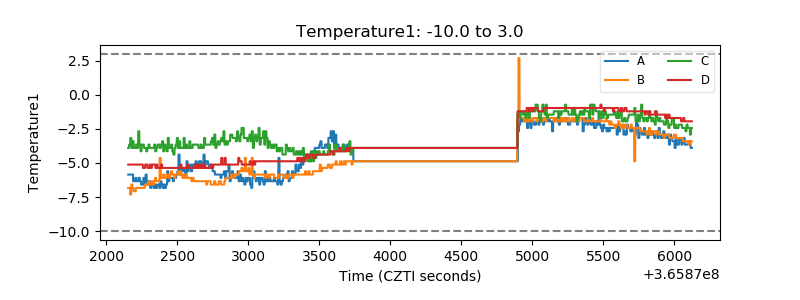

| Temperature 1 |  |
| Veto HV Monitor |  |

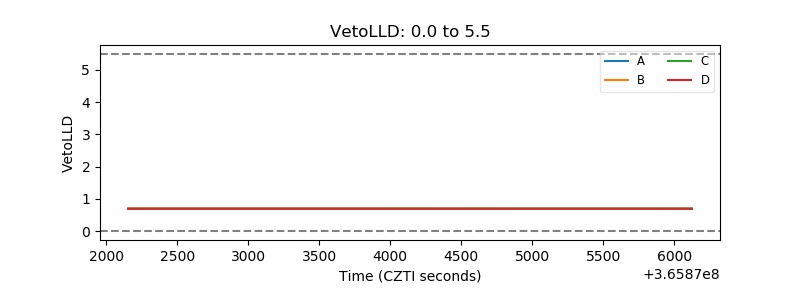

| Veto LLD |  |

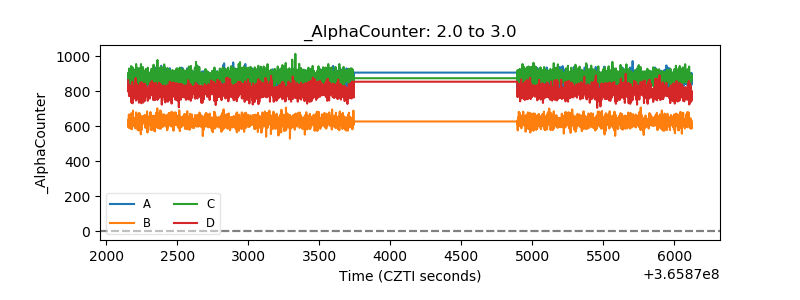

| Alpha Counter |  |

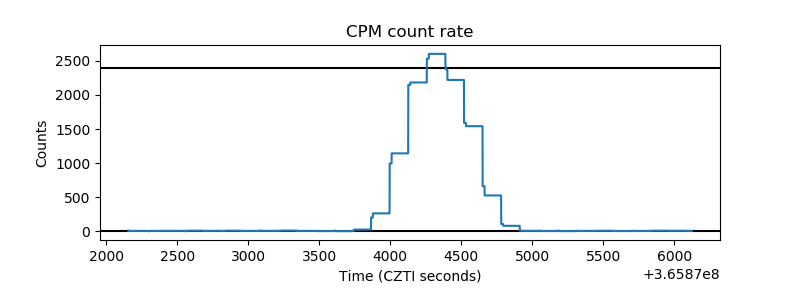

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
