| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004626_31655cztM0_level2.evt | modeM0/AS1A10_056T01_9000004626_31655cztM0_level2_quad_clean.evt |
| Size (bytes) | 660,824,640 | 101,462,400 |
| Size | 630.2 MB | 96.8 MB |
| Events in quadrant A | 4,821,356 | 631,619 |
| Events in quadrant B | 5,575,484 | 689,037 |
| Events in quadrant C | 4,127,901 | 667,145 |
| Events in quadrant D | 5,060,938 | 642,759 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18663 | 2 |
| B | 0 | 21071 | 2 |
| C | 0 | 16516 | 2 |
| D | 0 | 19971 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6330 | 798 | 12.606635% |
| B | 6330 | 169 | 2.669826% |
| C | 6329 | 290 | 4.582082% |
| D | 6329 | 101 | 1.595829% |

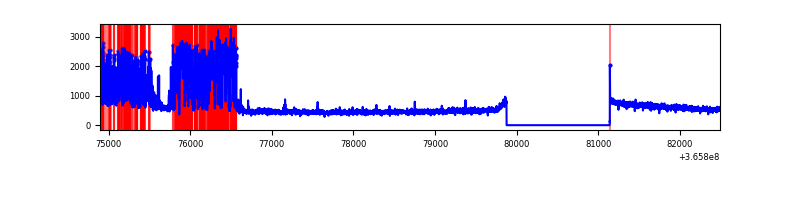

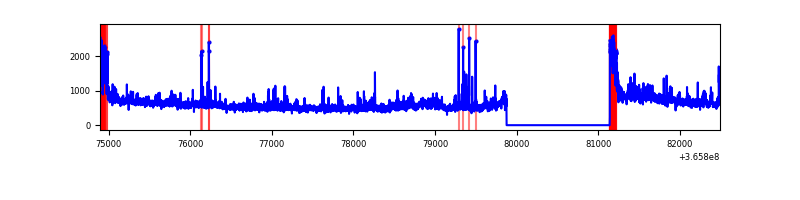

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6331 | 490 | 490 | 6.45% | 7.74% |  |
| B | 7595 | 6331 | 24 | 24 | 0.32% | 0.38% |  |
| C | 7594 | 6330 | 110 | 110 | 1.45% | 1.74% |  |
| D | 7594 | 6330 | 43 | 43 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 1683863 | 10528.26 | 810 | 796 | 159.9 |
| A | 13 | 254 | 11923 | 69.6 | 810 | 796 | 159.9 |
| A | 3 | 137 | 7538 | 42.17 | 810 | 796 | 159.9 |
| B | 6 | 159 | 1779088 | 11265.03 | 859 | 841 | 157.9 |
| B | 10 | 245 | 275488 | 1739.86 | 859 | 841 | 157.9 |
| B | 0 | 190 | 53940 | 336.38 | 859 | 841 | 157.9 |
| C | 0 | 10 | 496446 | 2603.13 | 825 | 832 | 190.4 |
| C | 3 | 233 | 187072 | 978.19 | 825 | 832 | 190.4 |
| C | 14 | 238 | 135993 | 709.91 | 825 | 832 | 190.4 |
| D | 8 | 195 | 1666615 | 8512.57 | 841 | 821 | 195.7 |
| D | 12 | 233 | 77481 | 391.75 | 841 | 821 | 195.7 |
| D | 12 | 2 | 64256 | 324.17 | 841 | 821 | 195.7 |

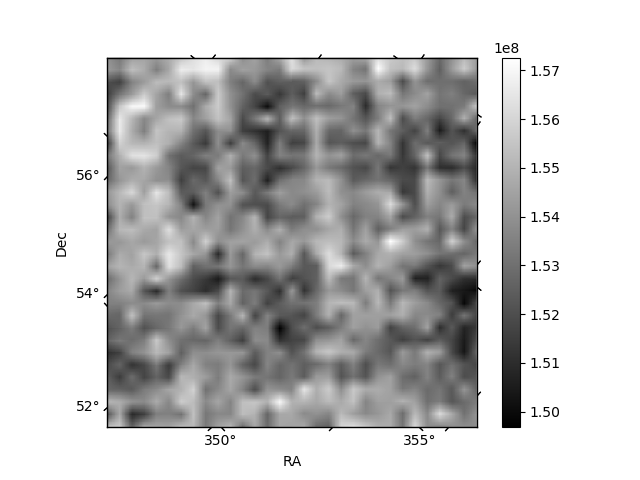

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

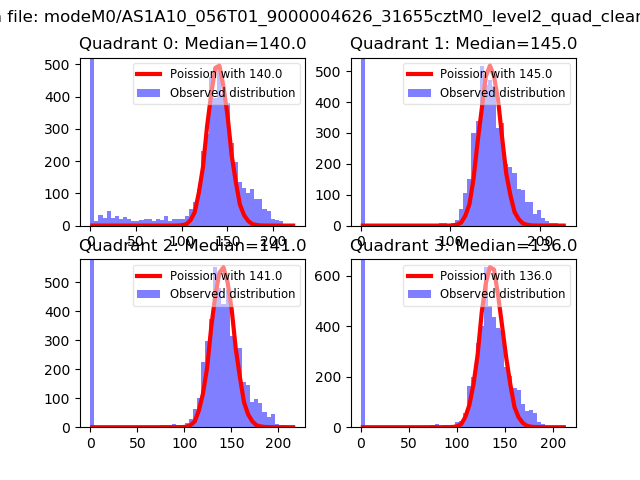

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

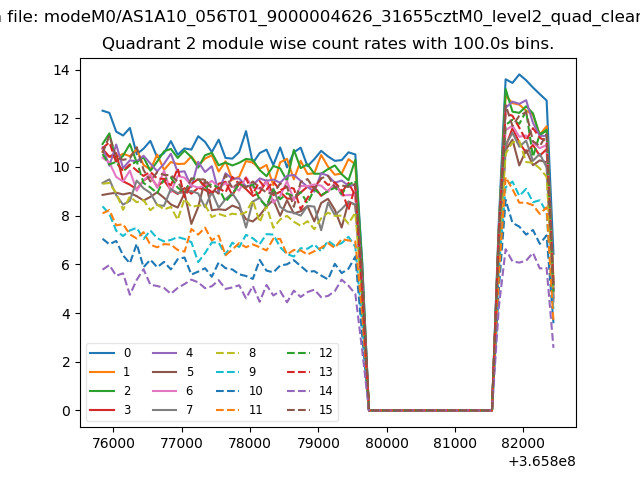

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

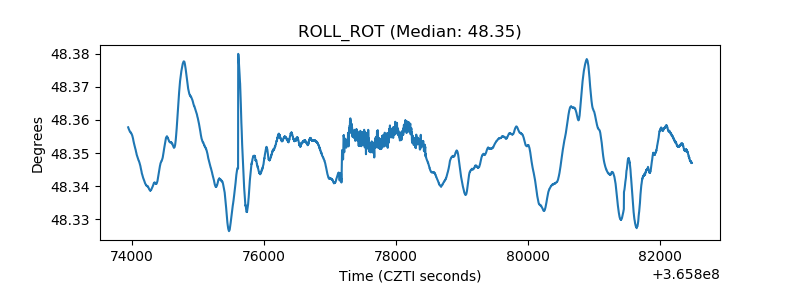

| _ROLL_ROT |  |
| _Roll_DEC |  |

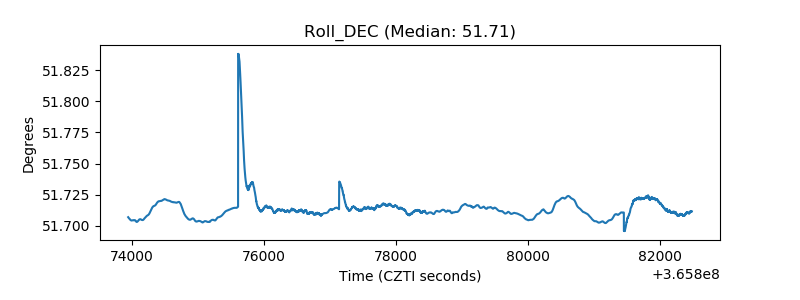

| _Roll_RA |  |

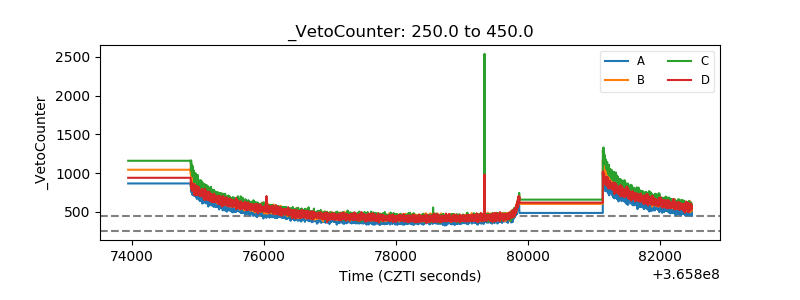

| Veto Counter |  |
