| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004626_31671cztM0_level2.evt | modeM0/AS1A10_056T01_9000004626_31671cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,486,080 | 123,186,240 |
| Size | 585.1 MB | 117.5 MB |
| Events in quadrant A | 3,487,839 | 831,301 |
| Events in quadrant B | 5,463,125 | 848,575 |
| Events in quadrant C | 5,121,885 | 812,140 |
| Events in quadrant D | 4,076,013 | 794,564 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14527 | 2 |
| B | 0 | 20552 | 2 |
| C | 0 | 19551 | 2 |
| D | 0 | 16354 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6368 | 119 | 1.868719% |
| B | 6368 | 236 | 3.706030% |
| C | 6367 | 537 | 8.434113% |
| D | 6368 | 141 | 2.214196% |

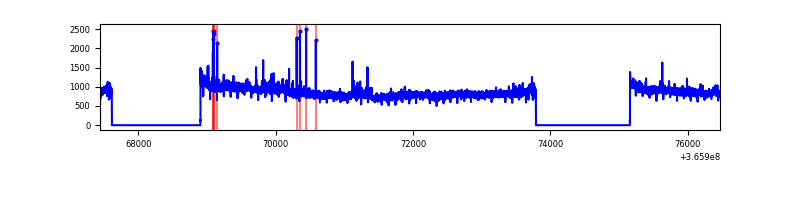

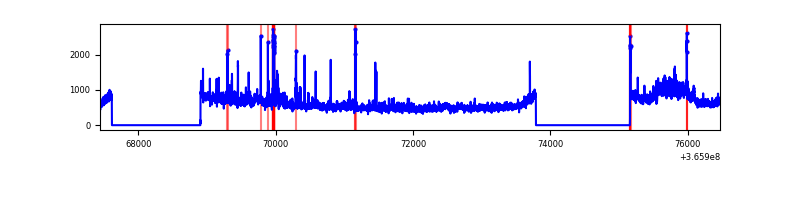

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9028 | 6370 | 7 | 7 | 0.08% | 0.11% |  |
| B | 9028 | 6370 | 9 | 9 | 0.10% | 0.14% |  |
| C | 9027 | 6369 | 159 | 159 | 1.76% | 2.50% |  |
| D | 9028 | 6370 | 36 | 36 | 0.40% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 35861 | 200.98 | 891 | 877 | 174.1 |
| A | 0 | 13 | 13354 | 71.68 | 891 | 877 | 174.1 |
| A | 13 | 254 | 12481 | 66.66 | 891 | 877 | 174.1 |
| B | 6 | 159 | 1792774 | 11062.95 | 891 | 870 | 162.0 |
| B | 4 | 80 | 47964 | 290.75 | 891 | 870 | 162.0 |
| B | 0 | 198 | 47281 | 286.53 | 891 | 870 | 162.0 |
| C | 0 | 10 | 1167295 | 5943.06 | 855 | 864 | 196.3 |
| C | 10 | 22 | 246133 | 1249.67 | 855 | 864 | 196.3 |
| C | 3 | 233 | 167756 | 850.33 | 855 | 864 | 196.3 |
| D | 8 | 195 | 595613 | 2922.63 | 878 | 857 | 203.5 |
| D | 13 | 249 | 84594 | 411.48 | 878 | 857 | 203.5 |
| D | 2 | 234 | 26344 | 125.24 | 878 | 857 | 203.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

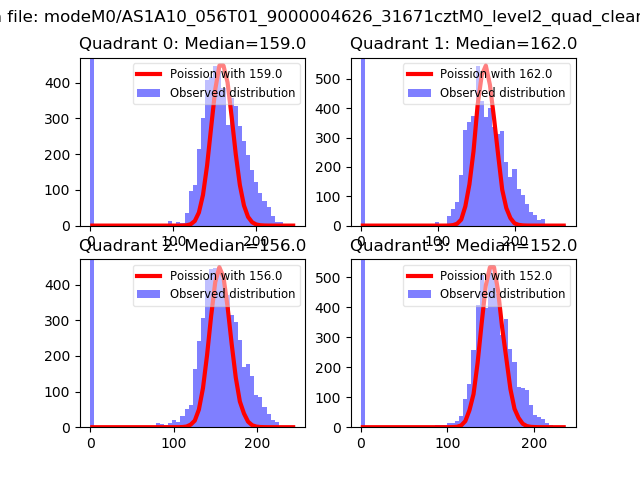

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

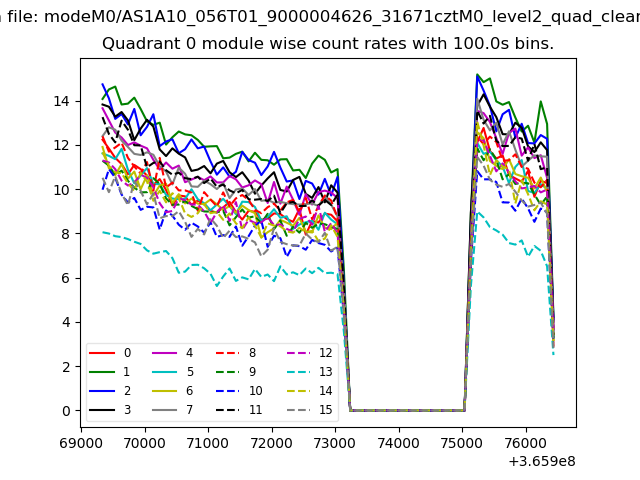

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

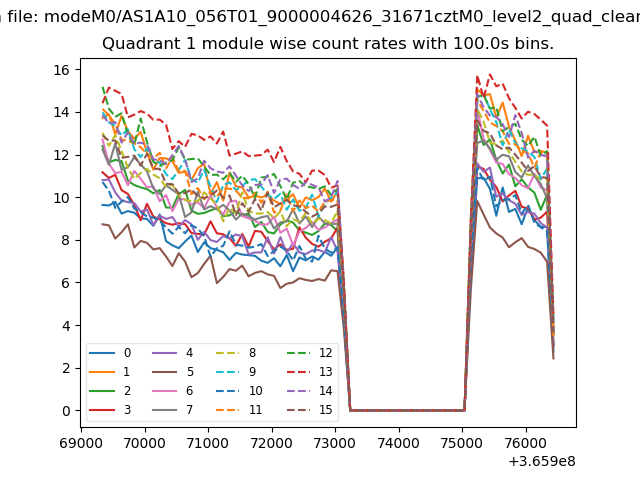

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

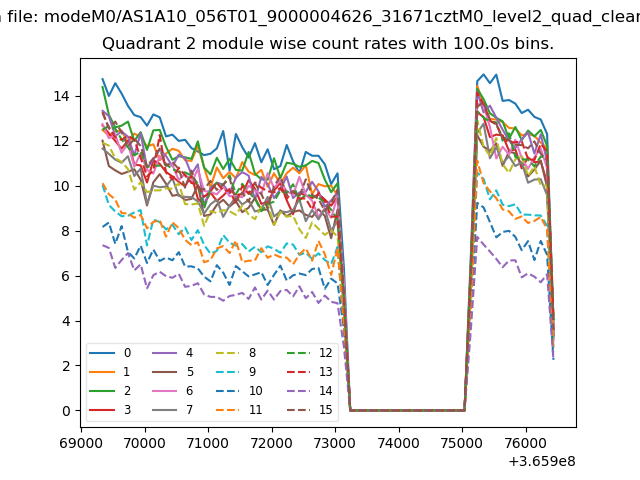

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

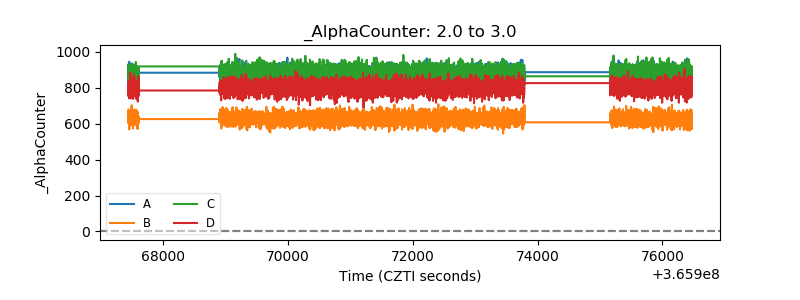

| Alpha Counter |  |

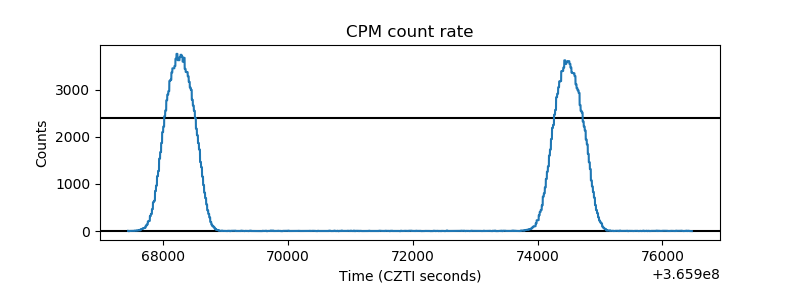

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
