| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_056T01_9000004626_31673cztM0_level2.evt | modeM0/AS1A10_056T01_9000004626_31673cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,754,240 | 104,509,440 |
| Size | 572.0 MB | 99.7 MB |
| Events in quadrant A | 3,108,000 | 694,789 |
| Events in quadrant B | 5,047,589 | 712,681 |
| Events in quadrant C | 5,726,647 | 655,603 |
| Events in quadrant D | 3,858,035 | 664,820 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13236 | 2 |
| B | 0 | 19391 | 2 |
| C | 0 | 21588 | 2 |
| D | 0 | 15703 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 22 | 0.351494% |
| B | 6259 | 136 | 2.172871% |
| C | 6259 | 682 | 10.896309% |
| D | 6259 | 39 | 0.623103% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7489 | 6260 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7489 | 6260 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7489 | 6260 | 437 | 437 | 5.84% | 6.98% |  |
| D | 7489 | 6260 | 18 | 18 | 0.24% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 47032 | 293.16 | 793 | 780 | 157.8 |
| A | 13 | 254 | 11688 | 69.14 | 793 | 780 | 157.8 |
| A | 3 | 137 | 7544 | 42.87 | 793 | 780 | 157.8 |
| B | 6 | 159 | 1733377 | 11725.32 | 795 | 777 | 147.8 |
| B | 5 | 172 | 59967 | 400.57 | 795 | 777 | 147.8 |
| B | 10 | 245 | 46356 | 308.45 | 795 | 777 | 147.8 |
| C | 3 | 233 | 2244209 | 12998.32 | 748 | 754 | 172.6 |
| C | 0 | 10 | 392853 | 2271.78 | 748 | 754 | 172.6 |
| C | 14 | 238 | 121182 | 697.75 | 748 | 754 | 172.6 |
| D | 8 | 195 | 833799 | 4535.0 | 776 | 756 | 183.7 |
| D | 2 | 250 | 45791 | 245.17 | 776 | 756 | 183.7 |
| D | 13 | 249 | 31493 | 167.33 | 776 | 756 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

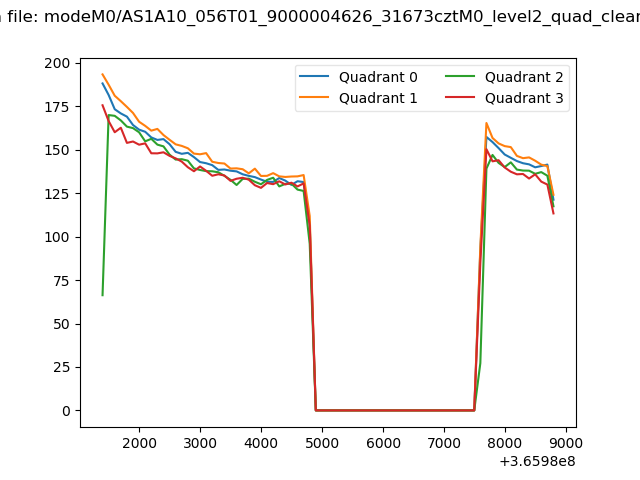

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

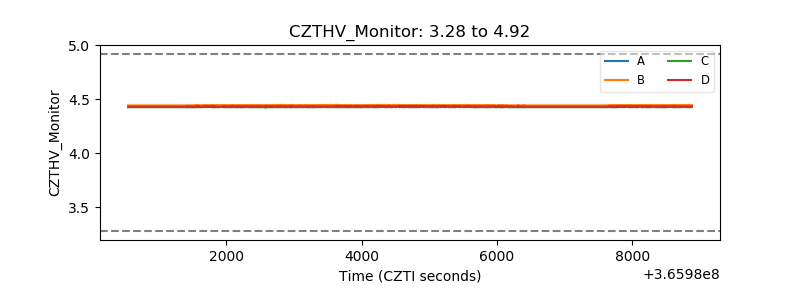

| CZT HV Monitor |  |

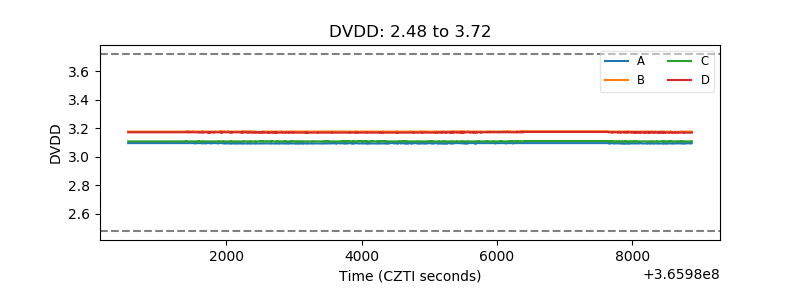

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
